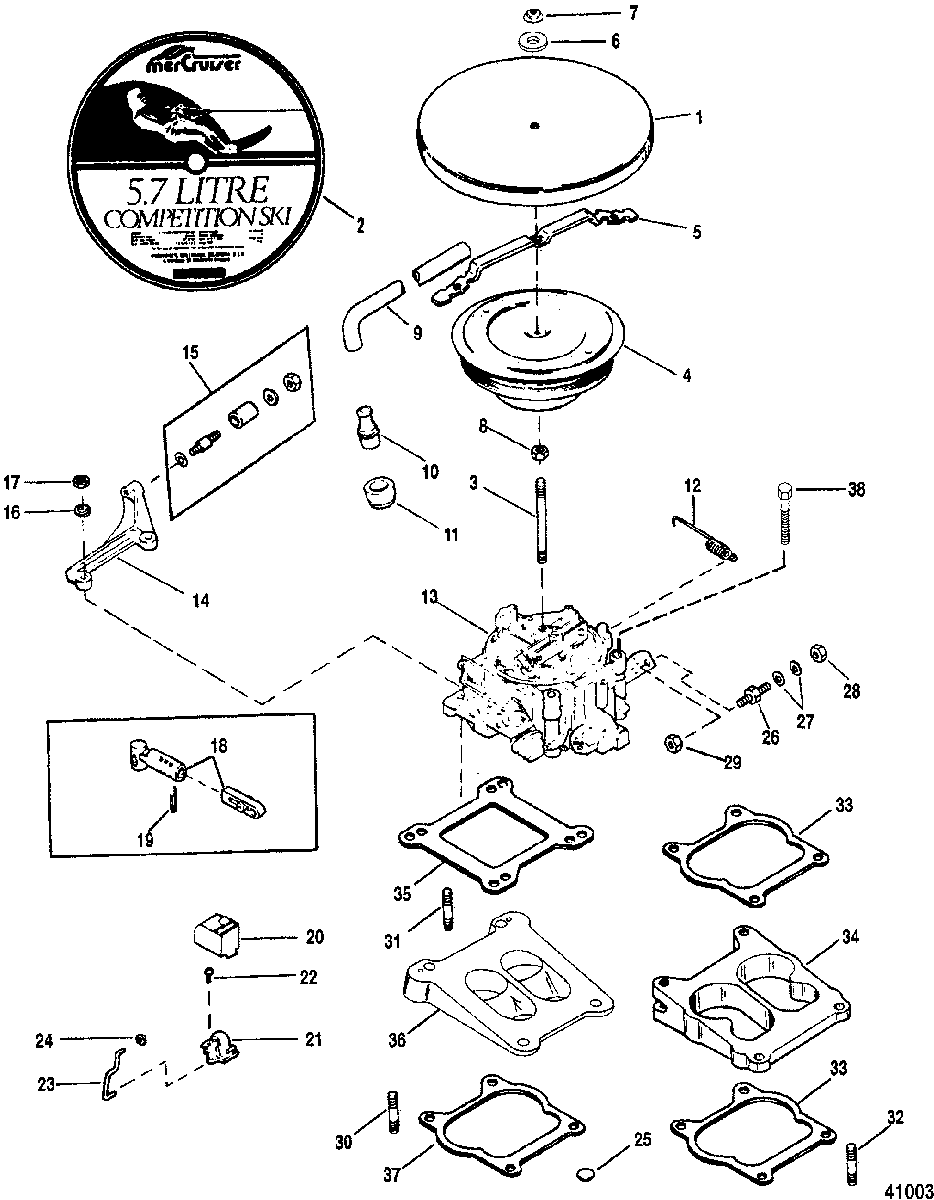

Carburetor / Throttle Linkage(WEBER) для Mercruiser - 5.7L COMPETITION SKI GM 350 V-8 1987-1995 0B514627 THRU 0F775199

  • №
    Артикул
    Название
  • 1
    14605T1 COVER, Carburetor
    COVER, Carburetor
  • 2
    37-81893922 DECAL (L.H. ROTATION)
    DECAL (L.H. ROTATION)
  • 2
    37-81893924 DECAL (R.H. ROTATION)
    DECAL (R.H. ROTATION)
  • 3
    16-805161 STUD, (4.75 In)
    STUD, (4.75 In)
  • 3
    16-805296 STUD, (4.50 Inch)
    STUD, (4.50 Inch)
  • 4
    805298A1 FLAME ARRESTOR
    FLAME ARRESTOR
  • 5
    805314 RETAINER, Breather Hose
    RETAINER, Breather Hose
  • 6
    12-20533 WASHER
    WASHER
  • 7
    11-826709109 NUT, (.250-28)
    NUT, (.250-28)
  • 8
    11-8267139 NUT
    (If Applicable)
    NUT
    (If Applicable)
  • 9
    32-8M0086022 HOSE, Breather
    HOSE, Breather
  • 10
    97850T ELBOW, 90 Degree, Breather
    ELBOW, 90 Degree, Breather
  • 11
    23-8M0071559 GROMMET
    GROMMET
  • 12
    24-897454 SPRING
    SPRING
  • 13
    3310-806761A2 CARBURETOR, Complete
    SN# F025100 THRU F449999
    CARBURETOR, Complete
    SN# F025100 THRU F449999
  • 13
    3310-806761A3 CARBURETOR, Complete
    SN# F450000 & Up
    CARBURETOR, Complete
    SN# F450000 & Up
  • 14
    805359T BRACKET
    BRACKET
  • 15
    16-97477A3 STUD KIT
    STUD KIT
  • 16
    12-20084 WASHER, (.328 x .562 x .062)
    WASHER, (.328 x .562 x .062)
  • 17
    11-29250 NUT, (.312-24)
    NUT, (.312-24)
  • 18
    64-892790A01 ADAPTOR KIT
    ADAPTOR KIT
  • 19
    64-892790A01 CLIP
    CLIP
  • 20
    63922 COVER
    COVER
  • 21
    66205 CHOKE
    CHOKE
  • 22
    10-69235 SCREW, (.190-24 x .500)
    SCREW, (.190-24 x .500)
  • 23
    806941 ROD, Choke
    ROD, Choke
  • 24
    53-818299 E RING
    E RING
  • 25
    22-12524 PLUG, (.375)
    PLUG, (.375)
  • 26
    16-8M0113178 STUD, (.250-28 x 2.00)
    STUD, (.250-28 x 2.00)
  • 27
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 28
    11-8267089 NUT, (.250-28)
    NUT, (.250-28)
  • 29
    11-826709109 NUT, (.250-28)
    NUT, (.250-28)
  • 30
    16-53724 STUD, (5/16 x 1-3/4)
    STUD, (5/16 x 1-3/4)
  • 31
    16-8M0113177 STUD, (.312 x 1.500)
    STUD, (.312 x 1.500)
  • 32
    16-63332 STUD, (.312 x 1.2812)
    2 Hole Wedge
    STUD, (.312 x 1.2812)
    2 Hole Wedge
  • 33
    27-524572 GASKET
    2 Hole Wedge
    GASKET
    2 Hole Wedge
  • 34
    821109T WEDGE, Carburetor
    2 Hole Wedge
    WEDGE, Carburetor
    2 Hole Wedge
  • 35
    27-41610 GASKET
    4 Hole Wedge
    GASKET
    4 Hole Wedge
  • 36
    806823A1 WEDGE
    4 Hole Wedge
    WEDGE
    4 Hole Wedge
  • 37
    27-524572 GASKET
    4 Hole Wedge
    GASKET
    4 Hole Wedge
  • 38
    10-807066 SCREW, (1.5 In)
    4 Hole Wedge
    SCREW, (1.5 In)
    4 Hole Wedge
