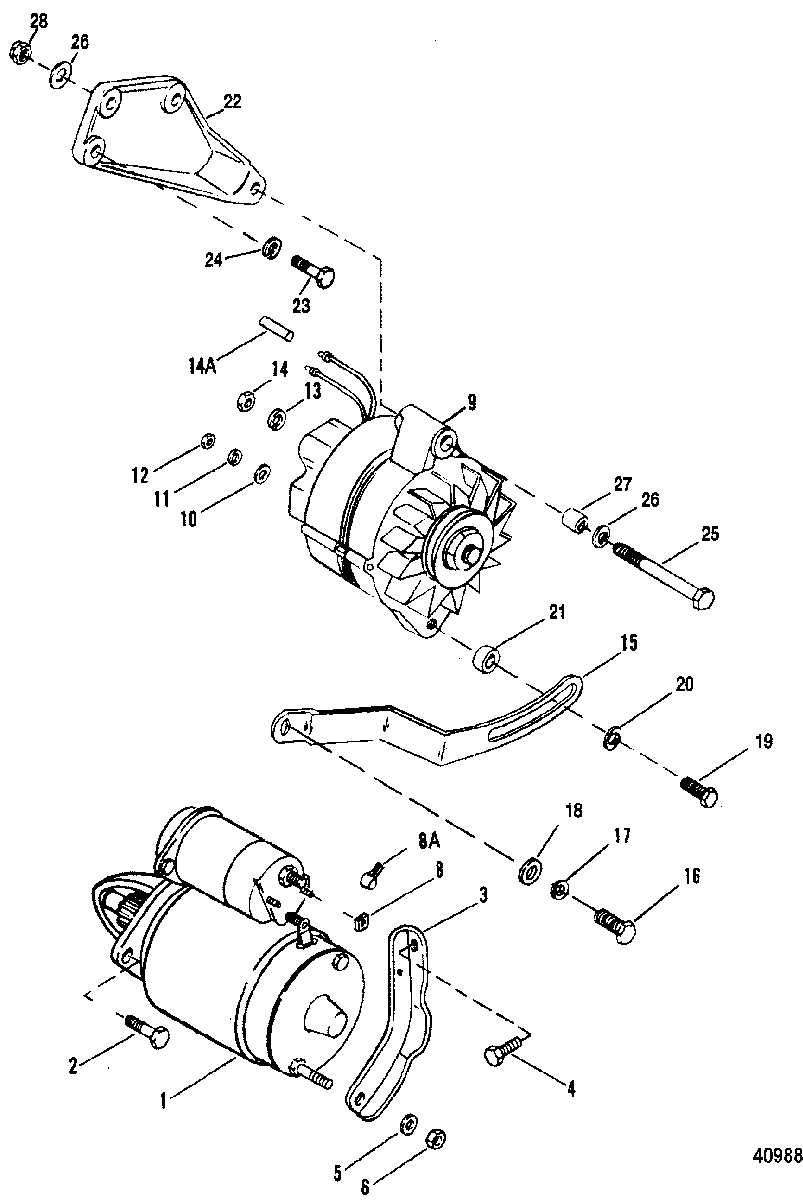

Starter Motor & Alternator для Mercruiser - 5.7L COMPETITION SKI GM 350 V-8 1987-1995 0B514627 THRU 0F775199

  • №
    Артикул
    Название
  • 1
    50-863007A1 STARTER MOTOR ASSEMBLY, 2-7/8 Diameter End Cap
    8 In. Starter Motor (PG260)
    STARTER MOTOR ASSEMBLY, 2-7/8 Diameter End Cap
    8 In. Starter Motor (PG260)
  • 1
    50-863007A1 STARTER MOTOR ASSEMBLY, 3-1/4 Diameter End Cap
    8 Inch Starter Motor (PG 200)
    STARTER MOTOR ASSEMBLY, 3-1/4 Diameter End Cap
    8 Inch Starter Motor (PG 200)
  • 1
    50-863007A1 STARTER MOTOR ASSEMBLY
    12 Inch Starter Motor, L.H. Rotation
    STARTER MOTOR ASSEMBLY
    12 Inch Starter Motor, L.H. Rotation
  • 1
    50-97499R3 STARTER MOTOR ASSEMBLY
    12 Inch Starter Motor, R.H. Rotation
    STARTER MOTOR ASSEMBLY
    12 Inch Starter Motor, R.H. Rotation
  • 2
    10-8053432 SCREW, (.375-16 x 4.33)
    8 In. Starter Motor (PG260), 2 7/8 In. Diameter End Cap
    SCREW, (.375-16 x 4.33)
    8 In. Starter Motor (PG260), 2 7/8 In. Diameter End Cap
  • 2
    10-8053432 SCREW, (.375-16 x 4.33)
    8 Inch Starter Motor (PG 200), 3-1/4 In. Diameter End Cap
    SCREW, (.375-16 x 4.33)
    8 Inch Starter Motor (PG 200), 3-1/4 In. Diameter End Cap
  • 2
    10-94435001 BOLT, (.375-16 x 4.600)
    12 Inch Starter Motor, L.H. Rotation
    BOLT, (.375-16 x 4.600)
    12 Inch Starter Motor, L.H. Rotation
  • 2
    10-47462 SCREW, (.437-14 x 1.250)
    12 Inch Starter Motor, R.H. Rotation
    SCREW, (.437-14 x 1.250)
    12 Inch Starter Motor, R.H. Rotation
  • 3
    12404 BRACE
    12 Inch Starter Motor, L.H. Rotation
    BRACE
    12 Inch Starter Motor, L.H. Rotation
  • 4
    10-35765A1 SCREW AND LOCKWASHER, (.312-18 x .625)
    12 Inch Starter Motor, L.H. Rotation
    SCREW AND LOCKWASHER, (.312-18 x .625)
    12 Inch Starter Motor, L.H. Rotation
  • 5
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    12 Inch Starter Motor, L.H. Rotation
    WASHER, (.281 x .500 x .060) Stainless Steel
    12 Inch Starter Motor, L.H. Rotation
  • 6
    11-806949 NUT, (M8-1.5)
    8 In. Starter Motor (PG260), 2 7/8 In. Diameter End Cap
    NUT, (M8-1.5)
    8 In. Starter Motor (PG260), 2 7/8 In. Diameter End Cap
  • 6
    11-15874 NUT, (M10)
    Use with 12 In. & 8 In. Starter Motor
    NUT, (M10)
    Use with 12 In. & 8 In. Starter Motor
  • 6
    11-8267088 NUT, (.250-20)
    Use with 12 In. & 8 In. Starter Motor
    NUT, (.250-20)
    Use with 12 In. & 8 In. Starter Motor
  • 8
    11-400211 NUT, (M5) Stainless Steel
    8 In. Starter Motor (PG260), 2 7/8 In. Diameter End Cap
    NUT, (M5) Stainless Steel
    8 In. Starter Motor (PG260), 2 7/8 In. Diameter End Cap
  • 8
    11-26419 NUT, (#8-32) Brass
    Use with 12 In. & 8 In. Starter Motor
    NUT, (#8-32) Brass
    Use with 12 In. & 8 In. Starter Motor
  • 8
    11-400211 NUT, (M5) Stainless Steel
    Use with 12 In. & 8 In. Starter Motor
    NUT, (M5) Stainless Steel
    Use with 12 In. & 8 In. Starter Motor
  • 8A
    85-79695T BOOT, Insulator - Black
    Use with 12 In. & 8 In. Starter Motor
    BOOT, Insulator - Black
    Use with 12 In. & 8 In. Starter Motor
  • 8A
    85-79695T BOOT, Insulator - Black
    8 In. Starter Motor (PG260), 2 7/8 In. Diameter End Cap
    BOOT, Insulator - Black
    8 In. Starter Motor (PG260), 2 7/8 In. Diameter End Cap
  • 9
    817119A4 ALTERNATOR ASSEMBLY, (55 Ampere)
    (Mando #AR-150) (Motorola #8MR2039K) (Prestolite #8EM2003K4)
    ALTERNATOR ASSEMBLY, (55 Ampere)
    (Mando #AR-150) (Motorola #8MR2039K) (Prestolite #8EM2003K4)
  • 9
    817119A4 ALTERNATOR
    (Mando #AC-155603)
    ALTERNATOR
    (Mando #AC-155603)
  • 10
    12-96457 WASHER, Phenolic (.27 x .81 x .062)
    (Mando #AR-150) (Motorola #8MR2039K) (Prestolite #8EM2003K4)
    WASHER, Phenolic (.27 x .81 x .062)
    (Mando #AR-150) (Motorola #8MR2039K) (Prestolite #8EM2003K4)
  • 10
    12-96457 WASHER, Phenolic (.27 x .81 x .062)
    (Mando #AC-155603)
    WASHER, Phenolic (.27 x .81 x .062)
    (Mando #AC-155603)
  • 11
    13-26996 LOCKWASHER, (#10) Stainless Steel
    (Mando #AC-155603) (Mando #AR-150) (Motorola #8MR2039K) (Prestolite #8EM2003K4)
    LOCKWASHER, (#10) Stainless Steel
    (Mando #AC-155603) (Mando #AR-150) (Motorola #8MR2039K) (Prestolite #8EM2003K4)
  • 12
    11-79989 NUT, (#10-24) Stainless Steel
    (Mando #AC-155603) (Mando #AR-150) (Motorola #8MR2039K) (Prestolite #8EM2003K4)
    NUT, (#10-24) Stainless Steel
    (Mando #AC-155603) (Mando #AR-150) (Motorola #8MR2039K) (Prestolite #8EM2003K4)
  • 13
    13-21272 LOCKWASHER, (.250)
    (Mando #AR-150) (Motorola #8MR2039K) (Prestolite #8EM2003K4)
    LOCKWASHER, (.250)
    (Mando #AR-150) (Motorola #8MR2039K) (Prestolite #8EM2003K4)
  • 13
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    (Mando #AC-155603)
    WASHER, (.281 x .500 x .060) Stainless Steel
    (Mando #AC-155603)
  • 14
    11-64015 NUT, (.250-20)
    (Mando #AR-150) (Motorola #8MR2039K) (Prestolite #8EM2003K4)
    NUT, (.250-20)
    (Mando #AR-150) (Motorola #8MR2039K) (Prestolite #8EM2003K4)
  • 14
    11-94330 NUT, (.250-20) Brass
    (Mando #AC-155603)
    NUT, (.250-20) Brass
    (Mando #AC-155603)
  • 14A
    5790811 SLEEVE, (10.00 Inches Bulk)
    SLEEVE, (10.00 Inches Bulk)
  • 15
    85013T BRACE
    BRACE
  • 16
    10-26487 SCREW, (.375-16 x 1.12)
    SCREW, (.375-16 x 1.12)
  • 17
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 18
    12-34714 WASHER
    WASHER
  • 19
    10-74824 SCREW, (.312-18 x 1.250)
    SCREW, (.312-18 x 1.250)
  • 20
    12-26168 WASHER
    WASHER
  • 21
    23-52095 SPACER
    SPACER
  • 22
    93175T BRACKET
    BRACKET
  • 23
    10-37612 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 24
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 25
    10-48308 SCREW, (.375-24 x 3.750)
    SCREW, (.375-24 x 3.750)
  • 26
    12-20553 WASHER, (.406 x .734 x .063)
    WASHER, (.406 x .734 x .063)
  • 27
    23-33186 BUSHING
    BUSHING
  • 28
    11-23161 NUT, (.375-24)
    NUT, (.375-24)
