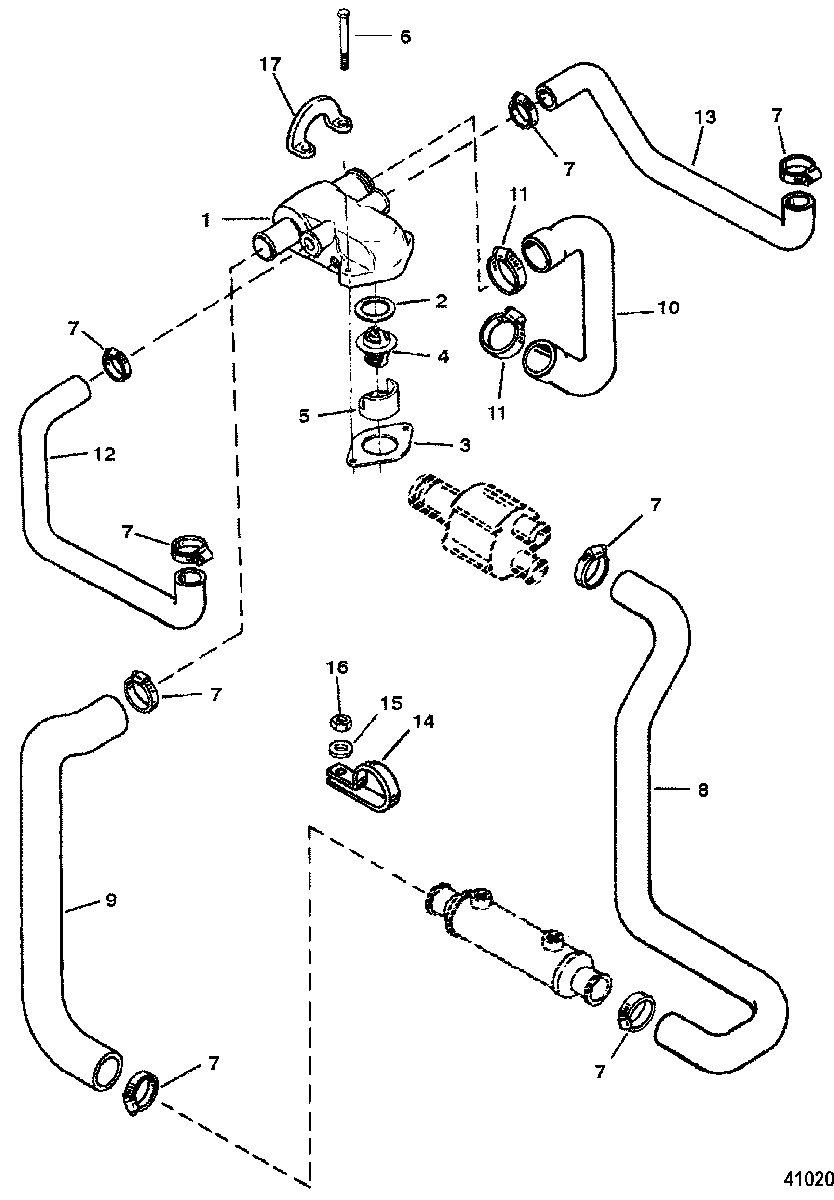

Thermostat Housing(Standard Cooling) Design III для Mercruiser - 5.7L COMPETITION SKI GM 350 V-8 1987-1995 0B514627 THRU 0F775199

  • №
    Артикул
    Название
  • 1
    807790A1 HOUSING ASSEMBLY, Thermostat
    HOUSING ASSEMBLY, Thermostat
  • 2
    27-806871 GASKET
    GASKET
  • 3
    27-530451 GASKET
    GASKET
  • 4
    8M0109441 THERMOSTAT, 71A°C (160A°F)
    THERMOSTAT, 71A°C (160A°F)
  • 5
    23-806922 SLEEVE
    SLEEVE
  • 6
    10-8M0113179 SCREW, (.375-16 x 3.00)
    SCREW, (.375-16 x 3.00)
  • 7
    54-815504220 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 8
    32-88795 HOSE, Oil Cooler to Sea Pump
    HOSE, Oil Cooler to Sea Pump
  • 9
    32-806856 HOSE, Oil Cooler to Thermostat Housing
    HOSE, Oil Cooler to Thermostat Housing
  • 10
    32-861590A05 HOSE, Thermostat Housing to Water Pump
    HOSE, Thermostat Housing to Water Pump
  • 11
    54-815504232 CLAMP, Worm Gear (2.50 Diameter)
    CLAMP, Worm Gear (2.50 Diameter)
  • 12
    32-160211 HOSE, Thermostat Housing
    PORT
    HOSE, Thermostat Housing
    PORT
  • 13
    32-871171 HOSE, Thermostat Housing
    STARBOARD
    HOSE, Thermostat Housing
    STARBOARD
  • 14
    54-47715 CLIP
    CLIP
  • 15
    13-39107 LOCKWASHER, (.312-24)
    LOCKWASHER, (.312-24)
  • 16
    11-29250 NUT, (.312-24)
    NUT, (.312-24)
  • 17
    12552 LIFTING EYE
    LIFTING EYE
