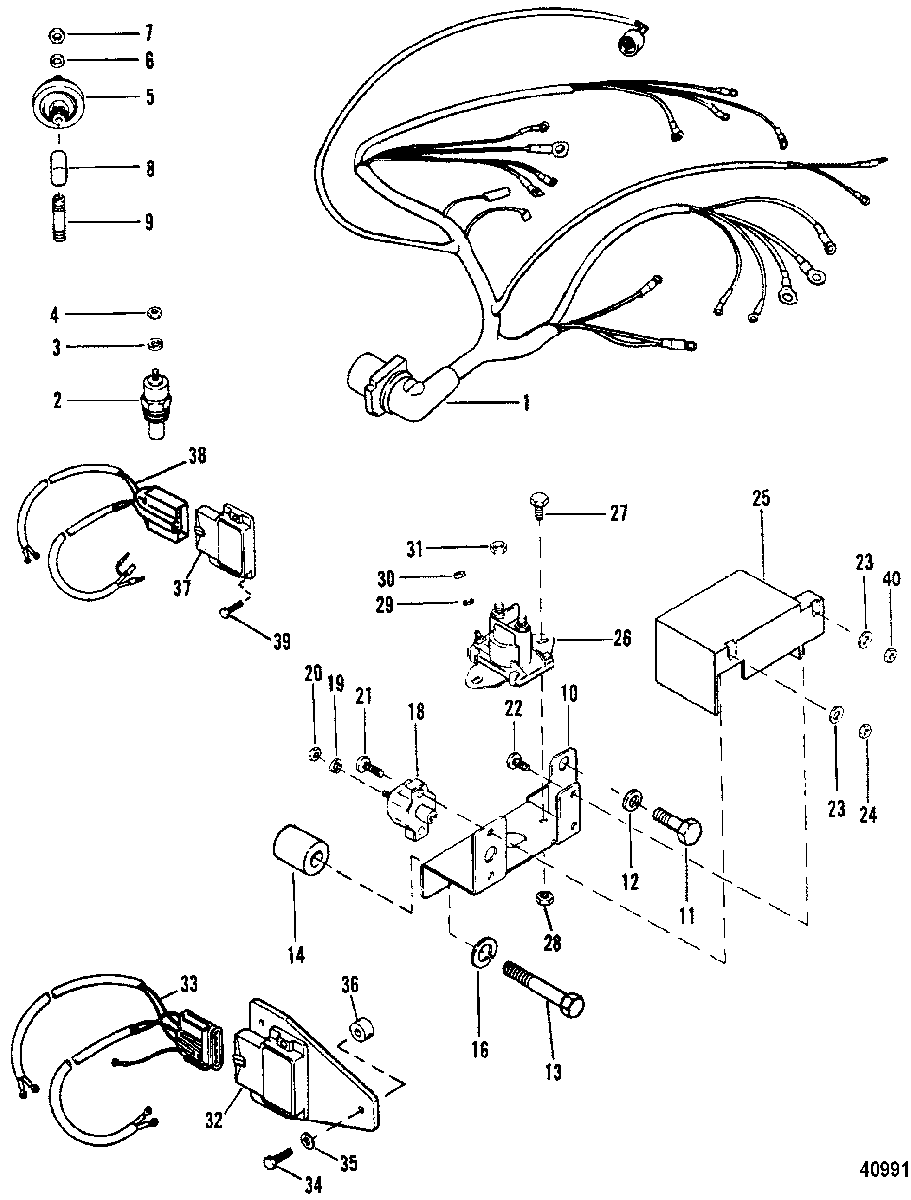

Wiring Harness & Electrical Components для Mercruiser - 5.7L COMPETITION SKI GM 350 V-8 1987-1995 0B514627 THRU 0F775199

  • №
    Артикул
    Название
  • 1
    84-12307A2 HARNESS ASSEMBLY
    (With Breaker Point Ignition)
    HARNESS ASSEMBLY
    (With Breaker Point Ignition)
  • 1
    84-12307T3 HARNESS ASSEMBLY
    (With Thunderbolt IV Ignition)
    HARNESS ASSEMBLY
    (With Thunderbolt IV Ignition)
  • 2
    806490T SENDER ASSEMBLY, Water Temperature (3/8-18)
    SENDER ASSEMBLY, Water Temperature (3/8-18)
  • 2
    97258A1 SENDER ASSEMBLY, Water Temperature (1/2-14)
    SENDER ASSEMBLY, Water Temperature (1/2-14)
  • 2
    49734 SENDER ASSEMBLY, Water Temperature (DUAL)
    SENDER ASSEMBLY, Water Temperature (DUAL)
  • 3
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 4
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 5
    8M0068784 SENDER ASSEMBLY, Oil Pressure
    SENDER ASSEMBLY, Oil Pressure
  • 5
    37293T SENDER ASSEMBLY, Oil Pressure (DUAL)
    SENDER ASSEMBLY, Oil Pressure (DUAL)
  • 6
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 7
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 8
    22-8053281 FITTING, Elbow (90 Degree - .125)
    FITTING, Elbow (90 Degree - .125)
  • 9
    22-885153 NIPPLE
    NIPPLE
  • 10
    41170T BRACKET
    BRACKET
  • 11
    10-37612 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 12
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 13
    10-35787 SCREW, (.375-16 x 2.250)
    SCREW, (.375-16 x 2.250)
  • 14
    23-15895 SPACER, (.38 x 1.00 x 1.44)
    SPACER, (.38 x 1.00 x 1.44)
  • 14
    23-91034 SPACER, (.380 x 1.00 x .530)
    SPACER, (.380 x 1.00 x .530)
  • 16
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 18
    88-11178A01 BREAKER, Circuit - 50 Ampere
    BREAKER, Circuit - 50 Ampere
  • 19
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 20
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 21
    10-45862 SCREW, (#10-32 x .875)
    SCREW, (#10-32 x .875)
  • 22
    10-22028 SCREW, (#10-32 x .50)
    SCREW, (#10-32 x .50)
  • 23
    12-56681 WASHER, (.203 x .500 x .032)
    WASHER, (.203 x .500 x .032)
  • 24
    11-61356 NUT, (#10-32) Reduced Hex
    NUT, (#10-32) Reduced Hex
  • 25
    85-96819T INSULATOR
    INSULATOR
  • 26
    89-96054T SOLENOID ASSEMBLY, Starter
    SOLENOID ASSEMBLY, Starter
  • 27
    10-96138 SCREW, (1/4-28 x 5/8)
    SCREW, (1/4-28 x 5/8)
  • 28
    11-20088 NUT
    NUT
  • 29
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 30
    11-26419 NUT, (#8-32) Brass (8-32)
    NUT, (#8-32) Brass (8-32)
  • 31
    11-94330 NUT, (.250-20) Brass
    NUT, (.250-20) Brass
  • 32
    821125A1 IGNITION MODULE
    (Ignition Module Mounted on Exhaust Elbow)
    IGNITION MODULE
    (Ignition Module Mounted on Exhaust Elbow)
  • 33
    84-15275A1 HARNESS ASSEMBLY
    (Ignition Module Mounted on Exhaust Elbow)
    HARNESS ASSEMBLY
    (Ignition Module Mounted on Exhaust Elbow)
  • 34
    10-76630 SCREW, (.250-20 x 1.00)
    (Ignition Module Mounted on Exhaust Elbow)
    SCREW, (.250-20 x 1.00)
    (Ignition Module Mounted on Exhaust Elbow)
  • 35
    13-26992 LOCKWASHER, (.250) Stainless Steel
    (Ignition Module Mounted on Exhaust Elbow)
    LOCKWASHER, (.250) Stainless Steel
    (Ignition Module Mounted on Exhaust Elbow)
  • 36
    23-92152T SPACER, (.27 x .75 x .38)
    (Ignition Module Mounted on Exhaust Elbow)
    SPACER, (.27 x .75 x .38)
    (Ignition Module Mounted on Exhaust Elbow)
  • 37
    821125T02 IGNITION MODULE
    (Ignition Module Mounted on Distributor)
    IGNITION MODULE
    (Ignition Module Mounted on Distributor)
  • 38
    84-805363A2 HARNESS ASSEMBLY
    (Ignition Module Mounted on Distributor)
    HARNESS ASSEMBLY
    (Ignition Module Mounted on Distributor)
  • 39
    10-12110 SCREW, (#6-32 x .750)
    (Ignition Module Mounted on Distributor)
    SCREW, (#6-32 x .750)
    (Ignition Module Mounted on Distributor)
  • 40
    11-46438 NUT, (#10-32)
    NUT, (#10-32)
