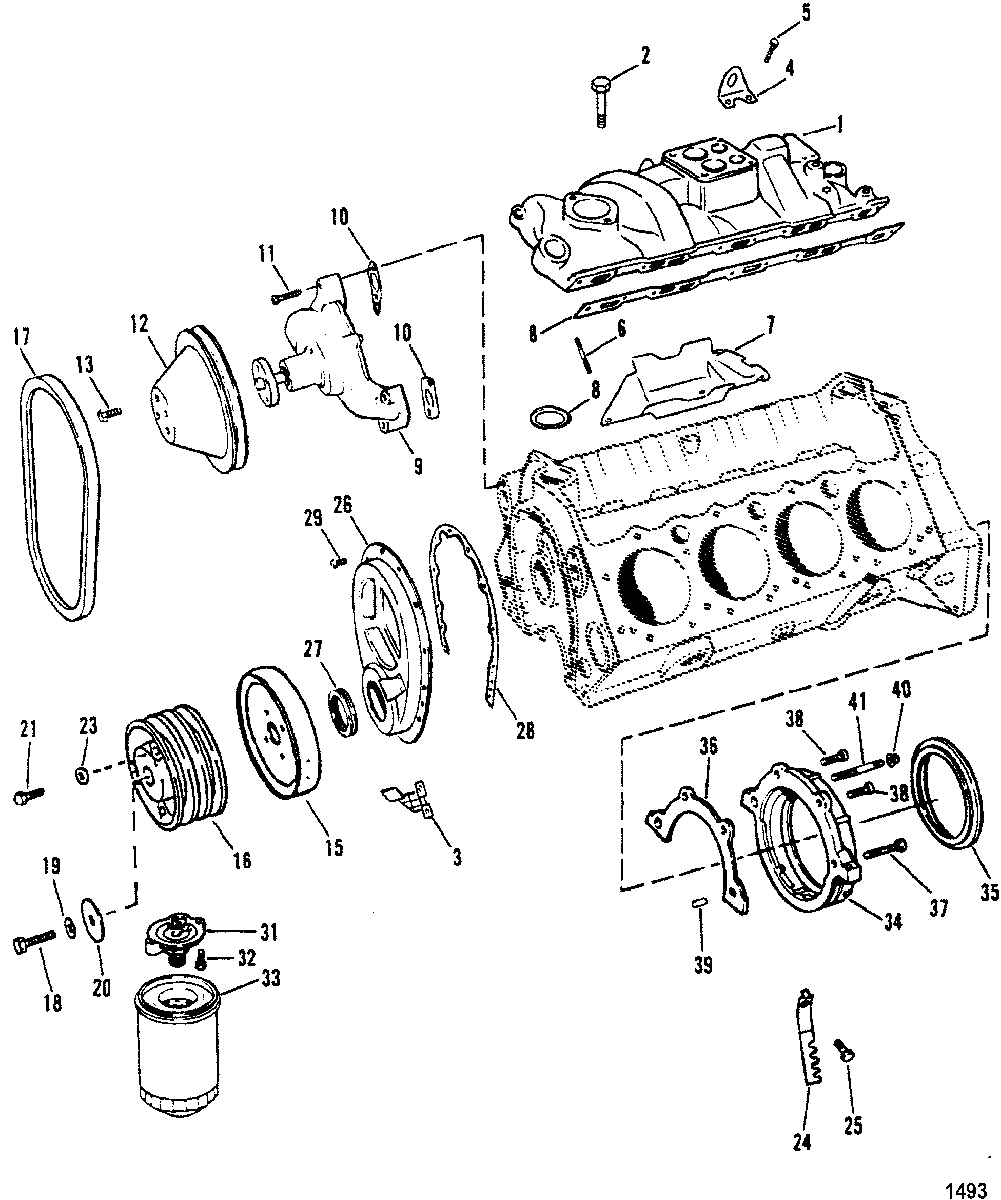

Intake Manifold & Front Cover(Design II) Cast для Mercruiser - 5.7L COMPETITION SKI GM 350 V-8 1987-1995 0B514627 THRU 0F775199

  • №
    Артикул
    Название
  • 1
    17618T MANIFOLD, Intake
    MANIFOLD, Intake
  • 2
    10-806681 SCREW, (.375-16 x .875)
    SCREW, (.375-16 x .875)
  • 2
    10-802655 BOLT, (3/8-16 x 1.25)
    BOLT, (3/8-16 x 1.25)
  • 3
    75435A1 POINTER
    POINTER
  • 4
    54-47512 LIFTING EYE
    LIFTING EYE
  • 5
    10-34354 SCREW, (.375-16 x 1.50)
    SCREW, (.375-16 x 1.50)
  • 6
    N.S.S. Not Sold Separate, STUD
    (GM #3959544)
    Not Sold Separate, STUD
    (GM #3959544)
  • 7
    72647 GUARD
    GUARD
  • 8
    27-17145 GASKET SET
    (Use RTV Silicone Sealant for end gasket - See Service Manual)
    GASKET SET
    (Use RTV Silicone Sealant for end gasket - See Service Manual)
  • 9
    46-8M0113734 PUMP ASSEMBLY, Water
    PUMP ASSEMBLY, Water
  • 10
    27-34897 GASKET
    GASKET
  • 11
    10-32132 SCREW, (.375-16 x 1.750)
    SCREW, (.375-16 x 1.750)
  • 11
    10-47688 SCREW, (.375-16 x 2.750)
    SCREW, (.375-16 x 2.750)
  • 11
    10-52200 SCREW, (1.625 In.)
    SCREW, (1.625 In.)
  • 12
    15120T PULLEY, (5.5 In. Diameter)
    PULLEY, (5.5 In. Diameter)
  • 12
    19692T01 PULLEY, (7 In. Diameter)
    PULLEY, (7 In. Diameter)
  • 13
    10-47277 SCREW, (.312-24 x .750)
    SCREW, (.312-24 x .750)
  • 15
    75420 BALANCER, HARMONIC
    BALANCER, HARMONIC
  • 16
    90081A1 PULLEY
    PULLEY
  • 17
    57-93658Q BELT, (44 Inch) (Use With 5.5 In. Diameter, ref. #12)
    BELT, (44 Inch) (Use With 5.5 In. Diameter, ref. #12)
  • 17
    57-48120Q1 V BELT, (46 Inch) (Use With 7 In. Diameter, ref. #12)
    V BELT, (46 Inch) (Use With 7 In. Diameter, ref. #12)
  • 18
    10-8M2021674 SCREW, (.437-20 x 2.50)
    SCREW, (.437-20 x 2.50)
  • 19
    13-39131 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 20
    12-35332001 WASHER
    WASHER
  • 21
    10-53833 BOLT, (.375-24 x 2.00)
    BOLT, (.375-24 x 2.00)
  • 23
    12-34714 WASHER
    WASHER
  • 24
    35365 SUPPORT
    SUPPORT
  • 25
    10-8M0040582 SCREW
    OLD DESIGN
    SCREW
    OLD DESIGN
  • 26
    8M0127828 COVER
    COVER
  • 27
    26-97335 SEAL, Oil
    SEAL, Oil
  • 28
    27-14250 GASKET
    GASKET
  • 29
    10-8M0040582 SCREW
    SCREW
  • 31
    71920 VALVE ASSEMBLY, Filter
    VALVE ASSEMBLY, Filter
  • 32
    10-54786 SCREW, (.312-18 x 1.250)
    SCREW, (.312-18 x 1.250)
  • 33
    35-866340Q03 FILTER, Oil
    FILTER, Oil
  • 34
    14239 RETAINER, Oil Seal (REAR)
    L.H. ROTATION
    RETAINER, Oil Seal (REAR)
    L.H. ROTATION
  • 35
    26-8M0077606 SEAL, Oil (REAR)
    L.H. ROTATION
    SEAL, Oil (REAR)
    L.H. ROTATION
  • 34
    15122 RETAINER (REAR)
    R.H. ROTATION
    RETAINER (REAR)
    R.H. ROTATION
  • 35
    26-8M0062772 SEAL, Oil (REAR)
    R.H. ROTATION
    SEAL, Oil (REAR)
    R.H. ROTATION
  • 36
    27-881715 GASKET
    GASKET
  • 37
    10-8M0064241 BOLT, (.250-20 x 1.750)
    BOLT, (.250-20 x 1.750)
  • 38
    10-14242 BOLT, (.250-20 x .875)
    BOLT, (.250-20 x .875)
  • 39
    17-14263 PIN, Dowel
    PIN, Dowel
  • 40
    11-11996 NUT
    NUT
  • 41
    16-14827 STUD, (.250-20 x 2.180)
    STUD, (.250-20 x 2.180)
