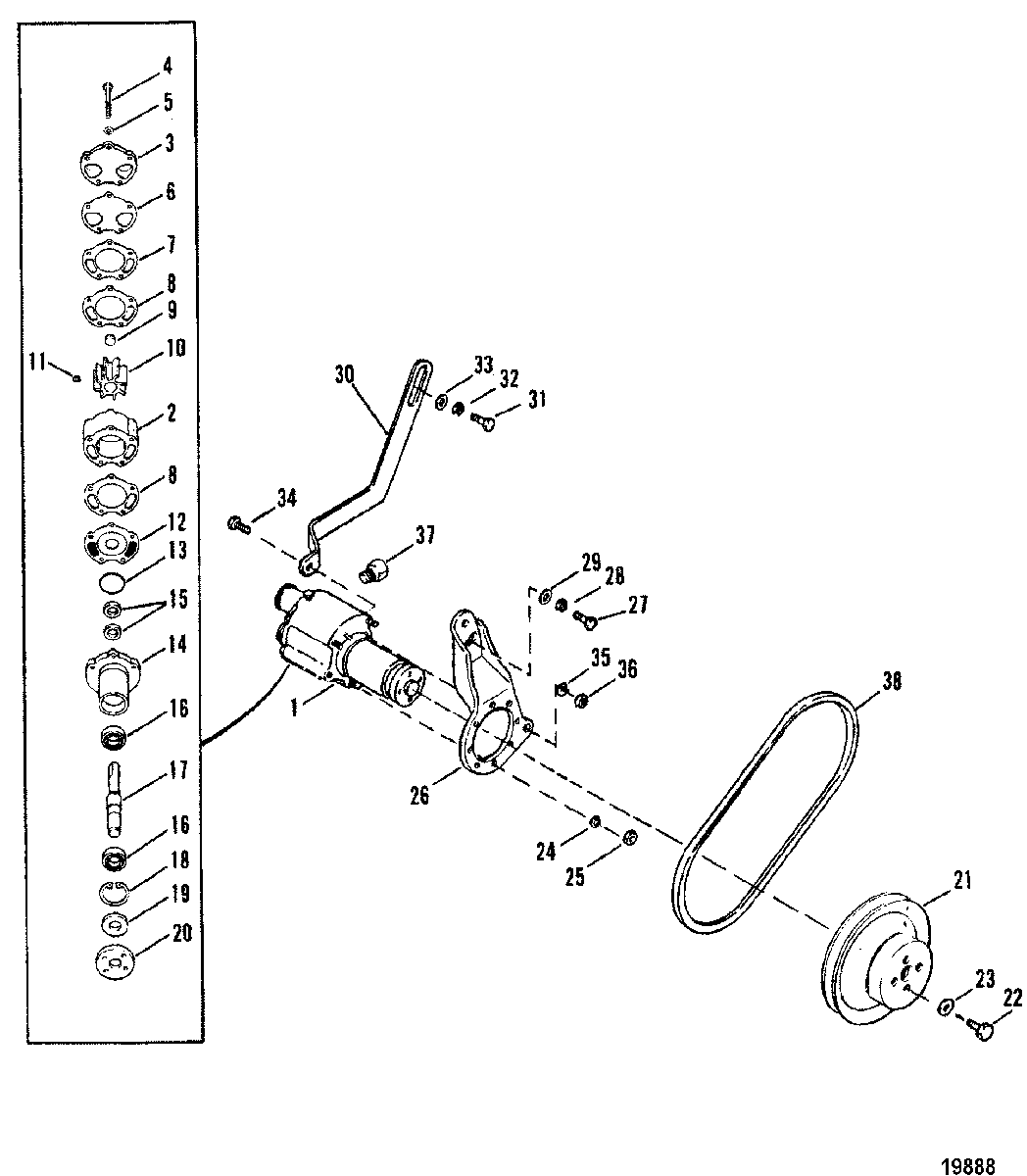

Sea Water Pump Assembly(Design I) Stamped Steel для Mercruiser - 5.7L COMPETITION SKI GM 350 V-8 1987-1995 0B514627 THRU 0F775199
-
№АртикулНазвание
-
146-72774A32 PUMP ASSEMBLY, Sea Water - CompletePUMP ASSEMBLY, Sea Water - Complete
-
246-72774A40 BODY ASSEMBLY, Sea Water - CompleteBODY ASSEMBLY, Sea Water - Complete
-
387631A4 COVER KITCOVER KIT
-
410-73275 SCREW, (.312-18 x 2.88)SCREW, (.312-18 x 2.88)
-
410-52743 SCREW, (.312-18 x 3.750)SCREW, (.312-18 x 3.750)
-
512-20084 WASHER, (.328 x .562 x .062)WASHER, (.328 x .562 x .062)
-
627-8052151 GASKETGASKET
-
794916 WEAR PLATEWEAR PLATE
-
827-94914 GASKETGASKET
-
919-59504 PLUGPLUG
-
1047-59362T1 IMPELLERIMPELLER
-
1128-8M0032837 KEYKEY
-
1294576 WEAR PLATEWEAR PLATE
-
1325-94288 QUAD RINGQUAD RING
-
1446-94913A1 HOUSING ASSEMBLY, Water PumpHOUSING ASSEMBLY, Water Pump
-
1526-90562 SEAL, (1.254 x .312)SEAL, (1.254 x .312)
-
1630-72961 BEARING, BallBEARING, Ball
-
1759501A1 SHAFTSHAFT
-
1853-23720 RING, RetainingRING, Retaining
-
1926-72785 SEALSEAL
-
2047530 HUBHUB
-
2173798A1 PULLEYPULLEY
-
2210-47277 SCREW, (.312-24 x .750)SCREW, (.312-24 x .750)
-
2313-39107 LOCKWASHER, (.312-24)LOCKWASHER, (.312-24)
-
2413-39107 LOCKWASHER, (.312-24)LOCKWASHER, (.312-24)
-
2511-21908 NUT, (.312-18) Cad PlatedNUT, (.312-18) Cad Plated
-
2689535T BRACKETBRACKET
-
2710-34353 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
2813-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
2912-34714 WASHERWASHER
-
3089609 BRACEBRACE
-
3110-26487 SCREW, (.375-16 x 1.12)SCREW, (.375-16 x 1.12)
-
3213-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
3312-34714 WASHERWASHER
-
3410-35786 SCREW, (.375-24 x 1.00)SCREW, (.375-24 x 1.00)
-
3513-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
3611-46335 NUT, (.375-24)NUT, (.375-24)
-
3722-328022 PLUG, Pipe (.125-27)PLUG, Pipe (.125-27)
-
3857-74271Q V BELT, (35.125 In)V BELT, (35.125 In)
