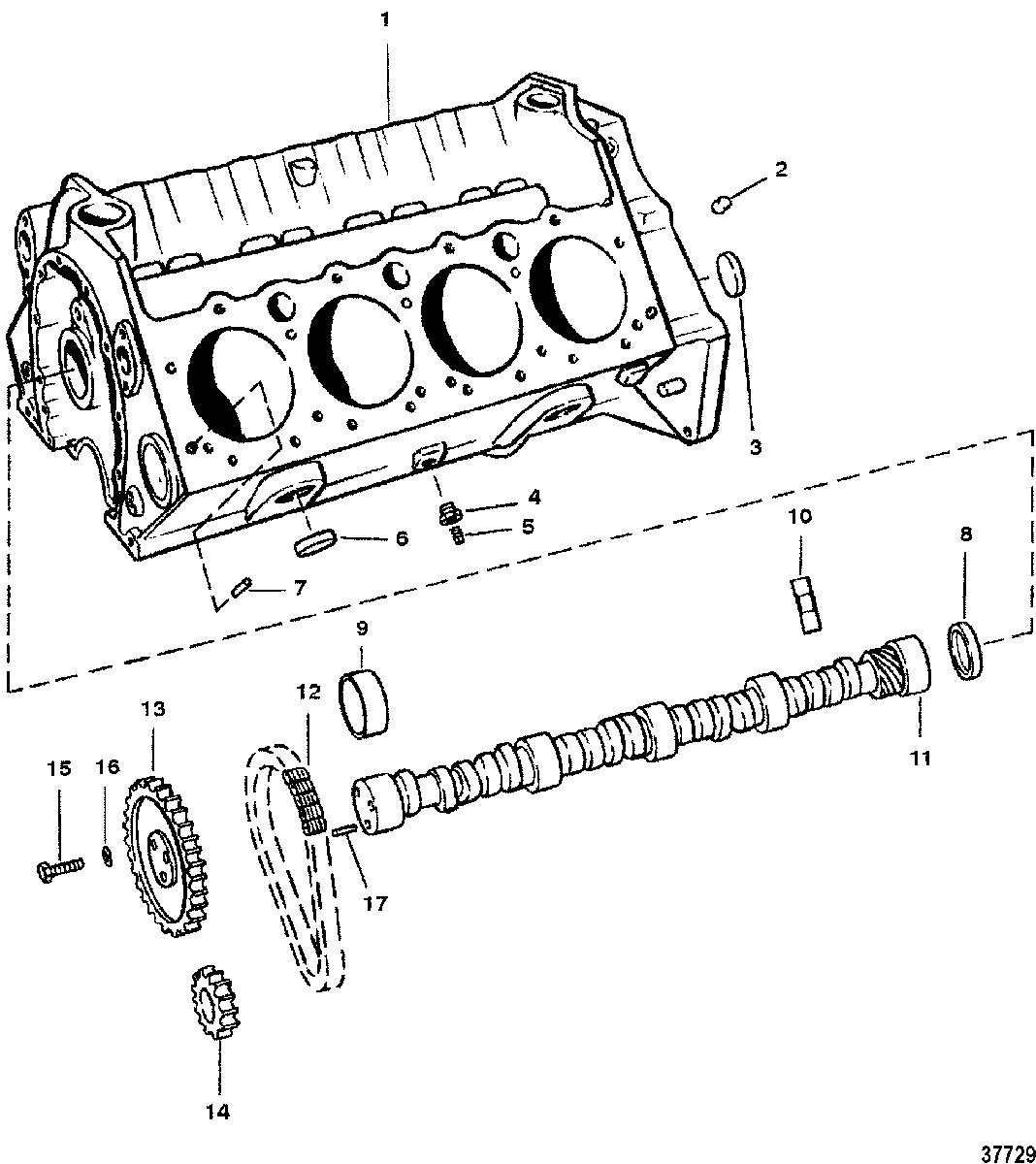

Cylinder Block & Camshaft для Mercruiser - 5.7L COMPETITION SKI GM 350 V-8 1987-1995 0B514627 THRU 0F775199

  • №
    Артикул
    Название
  • 1
    841-9717 CYLINDER BLOCK ASSEMBLY
    (Includes only standard pistons, piston rings, crankshaft bearings & camshaft bearings.)
    CYLINDER BLOCK ASSEMBLY
    (Includes only standard pistons, piston rings, crankshaft bearings & camshaft bearings.)
  • 2
    22-32561 PLUG, (.250-18 x .41)
    PLUG, (.250-18 x .41)
  • 3
    19-816565 PLUG, Cup (.468)
    PLUG, Cup (.468)
  • 4
    22-48556 BUSHING , Reducer (.250 To .125)
    BUSHING , Reducer (.250 To .125)
  • 5
    22-328022 PLUG, Pipe (.125-27)
    PLUG, Pipe (.125-27)
  • 6
    19-34270 EXPANSION PLUG, (1.625)
    EXPANSION PLUG, (1.625)
  • 7
    17-35465 PIN, Dowel (.312)
    PIN, Dowel (.312)
  • 8
    22-72640 PLUG, Expansion
    PLUG, Expansion
  • 9
    23-85674 BEARING SET
    BEARING SET
  • 10
    72638 LIFTER
    LIFTER
  • 11
    431-5943 CAMSHAFT (L.H. ROTATION)
    CAMSHAFT (L.H. ROTATION)
  • 11
    431-884035 CAMSHAFT (R.H. ROTATION)
    CAMSHAFT (R.H. ROTATION)
  • 12
    17161T CHAIN, Timing (L.H. ROTATION)
    CHAIN, Timing (L.H. ROTATION)
  • 13
    43-17159 SPROCKET (L.H. ROTATION)
    SPROCKET (L.H. ROTATION)
  • 13/14
    43-14324 GEAR SET (R.H. ROTATION)
    GEAR SET (R.H. ROTATION)
  • 14
    43-17160 SPROCKET, Crankshaft (L.H. ROTATION)
    SPROCKET, Crankshaft (L.H. ROTATION)
  • 15
    10-34505 SCREW, (.312-18 x .875)
    SCREW, (.312-18 x .875)
  • 16
    12-848136 WASHER, (.328 x .680 x .190)
    WASHER, (.328 x .680 x .190)
  • 17
    17-843378 PIN, Dowel (1/4 In. Diameter)
    PIN, Dowel (1/4 In. Diameter)
  • -
    883944R5 LONG BLOCK ENGINE (L.H. ROTATION)
    (Includes Internal Parts & Cylinder Heads)
    LONG BLOCK ENGINE (L.H. ROTATION)
    (Includes Internal Parts & Cylinder Heads)
  • -
    14156R5 LONG BLOCK ENGINE (R.H. ROTATION)
    (Includes Internal Parts & Cylinder Heads)
    LONG BLOCK ENGINE (R.H. ROTATION)
    (Includes Internal Parts & Cylinder Heads)
  • -
    27-75611A88 GASKET SET, Engine
    GASKET SET, Engine
  • -
    92-809826 SEALER, Red RTV
    (where applicable)
    SEALER, Red RTV
    (where applicable)
  • -
    92-34227Q02 SEALING COMPOUND, (16 Ounce)
    (where applicable)
    SEALING COMPOUND, (16 Ounce)
    (where applicable)
