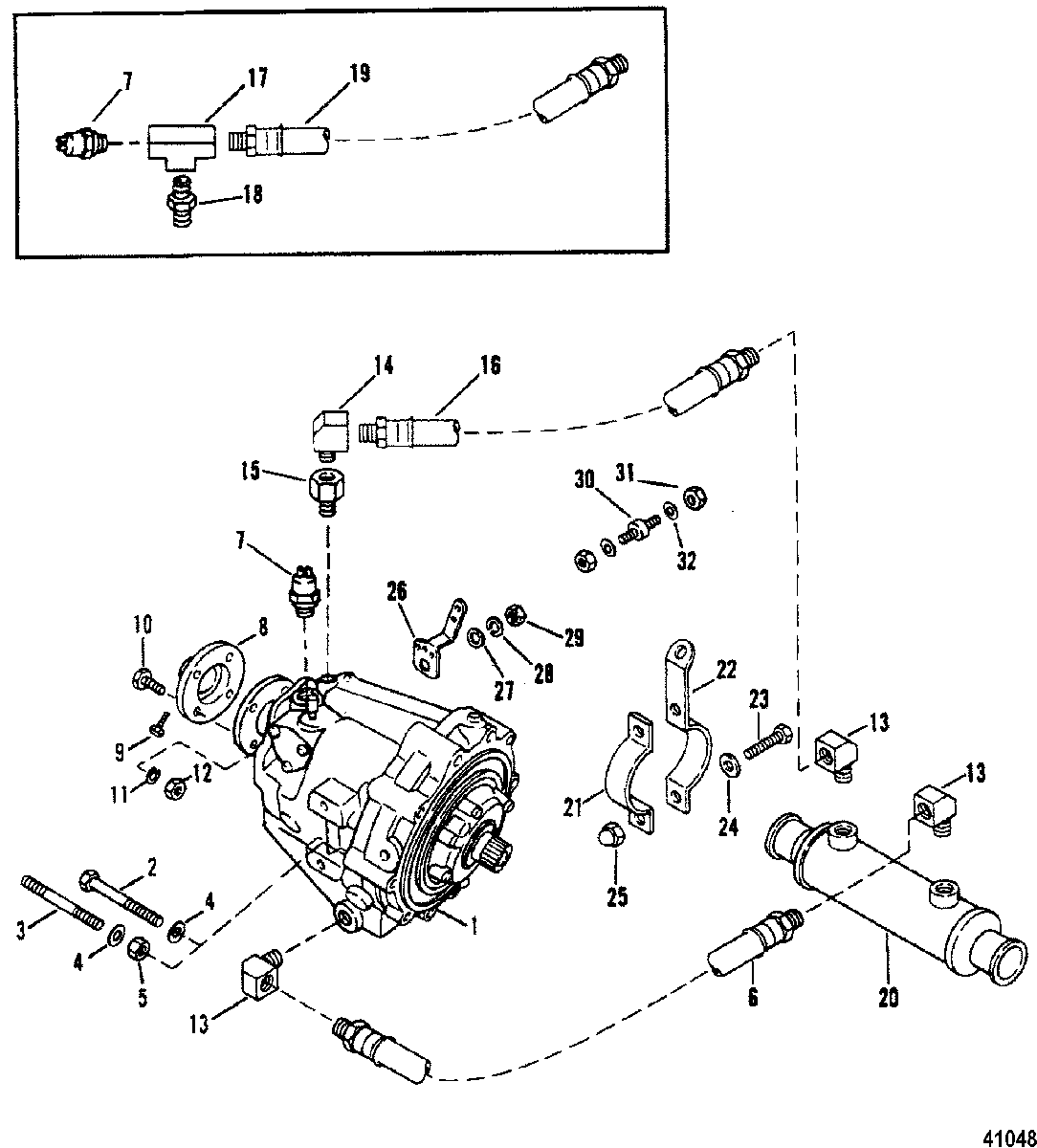

Transmission & Related Parts(In-Line) для Mercruiser - 5.7L COMPETITION SKI GM 350 V-8 1987-1995 0B514627 THRU 0F775199

  • №
    Артикул
    Название
  • 1
    47805A7 TRANSMISSION ASSEMBLY (Direct Drive)
    TRANSMISSION ASSEMBLY (Direct Drive)
  • 1
    47806R07 TRANSMISSION (1.523:1 Reduction)
    TRANSMISSION (1.523:1 Reduction)
  • 2
    10-60179 SCREW, (.437-14 x 3.500)
    (47805 Tranmission)
    SCREW, (.437-14 x 3.500)
    (47805 Tranmission)
  • 2
    10-60179 SCREW, (.437-14 x 3.500)
    (47806 Tranmission)
    SCREW, (.437-14 x 3.500)
    (47806 Tranmission)
  • 3
    16-57921 STUD, (.437-14/.437-20 x 4.00)
    (47805 Tranmission)
    STUD, (.437-14/.437-20 x 4.00)
    (47805 Tranmission)
  • 4
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 5
    11-22024 NUT, (.437-14)
    (47805 Tranmission)
    NUT, (.437-14)
    (47805 Tranmission)
  • 6
    32-4751613 HOSE, (49.00 Inches)
    HOSE, (49.00 Inches)
  • 7
    87-88031 SWITCH ASSEMBLY
    SWITCH ASSEMBLY
  • 8
    87917A1 FLANGE ASSEMBLY, (4.00 x 1.00)
    (47805 Tranmission) (See Note 10)
    FLANGE ASSEMBLY, (4.00 x 1.00)
    (47805 Tranmission) (See Note 10)
  • 8
    79476A1 FLANGE ASSEMBLY, (5.00 x 1.00)
    (47806 Tranmission) (See Note 11)
    FLANGE ASSEMBLY, (5.00 x 1.00)
    (47806 Tranmission) (See Note 11)
  • 8
    79476A2 FLANGE ASSEMBLY, (5.00 x 1.125)
    (47806 Tranmission) (See Note 11)
    FLANGE ASSEMBLY, (5.00 x 1.125)
    (47806 Tranmission) (See Note 11)
  • 8
    79476A3 FLANGE ASSEMBLY, (5.00 x 1.25)
    (47806 Tranmission) (See Note 11)
    FLANGE ASSEMBLY, (5.00 x 1.25)
    (47806 Tranmission) (See Note 11)
  • 8
    79476A4 FLANGE ASSEMBLY, (5.00 x 1.375)
    (47806 Tranmission) (See Note 11)
    FLANGE ASSEMBLY, (5.00 x 1.375)
    (47806 Tranmission) (See Note 11)
  • 8
    79476A5 FLANGE ASSEMBLY, (5.00 x 1.50)
    (47806 Tranmission) (See Note 11)
    FLANGE ASSEMBLY, (5.00 x 1.50)
    (47806 Tranmission) (See Note 11)
  • 9
    10-60168 SCREW
    (47805 Transmission) (See Notes 10 &11)
    SCREW
    (47805 Transmission) (See Notes 10 &11)
  • 9
    10-60171 SCREW, (.375-16 x 1.250)
    (47805 Transmission) (See Notes 10 &11)
    SCREW, (.375-16 x 1.250)
    (47805 Transmission) (See Notes 10 &11)
  • 9
    10-60169 SCREW, (.375-16 x .750)
    (47805 Transmission) (See Notes 10 &11)
    SCREW, (.375-16 x .750)
    (47805 Transmission) (See Notes 10 &11)
  • 10
    10-68101 SCREW, (.375-16 x 1.375)
    (47805 Transmission)
    SCREW, (.375-16 x 1.375)
    (47805 Transmission)
  • 10
    10-60106 SCREW, (1.25 In)
    (47806 Transmission)
    SCREW, (1.25 In)
    (47806 Transmission)
  • 11
    13-35048 LOCKWASHER, (.375)
    (47805 Transmission)
    LOCKWASHER, (.375)
    (47805 Transmission)
  • 11
    13-32993 LOCKWASHER, (.437)
    (47806 Transmission)
    LOCKWASHER, (.437)
    (47806 Transmission)
  • 12
    11-32219 NUT, (.375-16)
    (47805 Transmission)
    NUT, (.375-16)
    (47805 Transmission)
  • 12
    11-22024 NUT, (.437-14)
    (47806 Transmission)
    NUT, (.437-14)
    (47806 Transmission)
  • 13
    22-47629 ELBOW, 90 Degree
    ELBOW, 90 Degree
  • 14
    22-47629 ELBOW, 90 Degree
    Design I
    ELBOW, 90 Degree
    Design I
  • 15
    22-88517 FITTING, Reducing
    Design I
    FITTING, Reducing
    Design I
  • 16
    32-4751613 HOSE, (49.00 Inches)
    Design I
    HOSE, (49.00 Inches)
    Design I
  • 17
    22-806282 TEE
    Design II
    TEE
    Design II
  • 18
    22-806286 CONNECTOR
    Design II
    CONNECTOR
    Design II
  • 19
    32-8126997 HOSE ASSEMBLY, (30.00 Inches)
    Design II
    HOSE ASSEMBLY, (30.00 Inches)
    Design II
  • 20
    63832A1 COOLER
    COOLER
  • 21
    56328A1 BRACKET, Short
    BRACKET, Short
  • 22
    63820T BRACKET, Long
    BRACKET, Long
  • 23
    10-60300 SCREW, (.250-28 x .750)
    SCREW, (.250-28 x .750)
  • 24
    12-25909 WASHER, (.406 x .812 x .065)
    WASHER, (.406 x .812 x .065)
  • 25
    11-30506 NUT, (.250-28)
    NUT, (.250-28)
  • 26
    43325 LEVER
    LEVER
  • 27
    12-20722 WASHER, (.328 x .625 x .060)
    WASHER, (.328 x .625 x .060)
  • 28
    13-26993 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 29
    11-22053 NUT, (.312-24)
    NUT, (.312-24)
  • 30
    16-8M0113178 STUD, (.250-28 x 2.00)
    STUD, (.250-28 x 2.00)
  • 31
    12-20533 WASHER
    WASHER
  • 32
    11-8267089 NUT, (.250-28)
    NUT, (.250-28)
