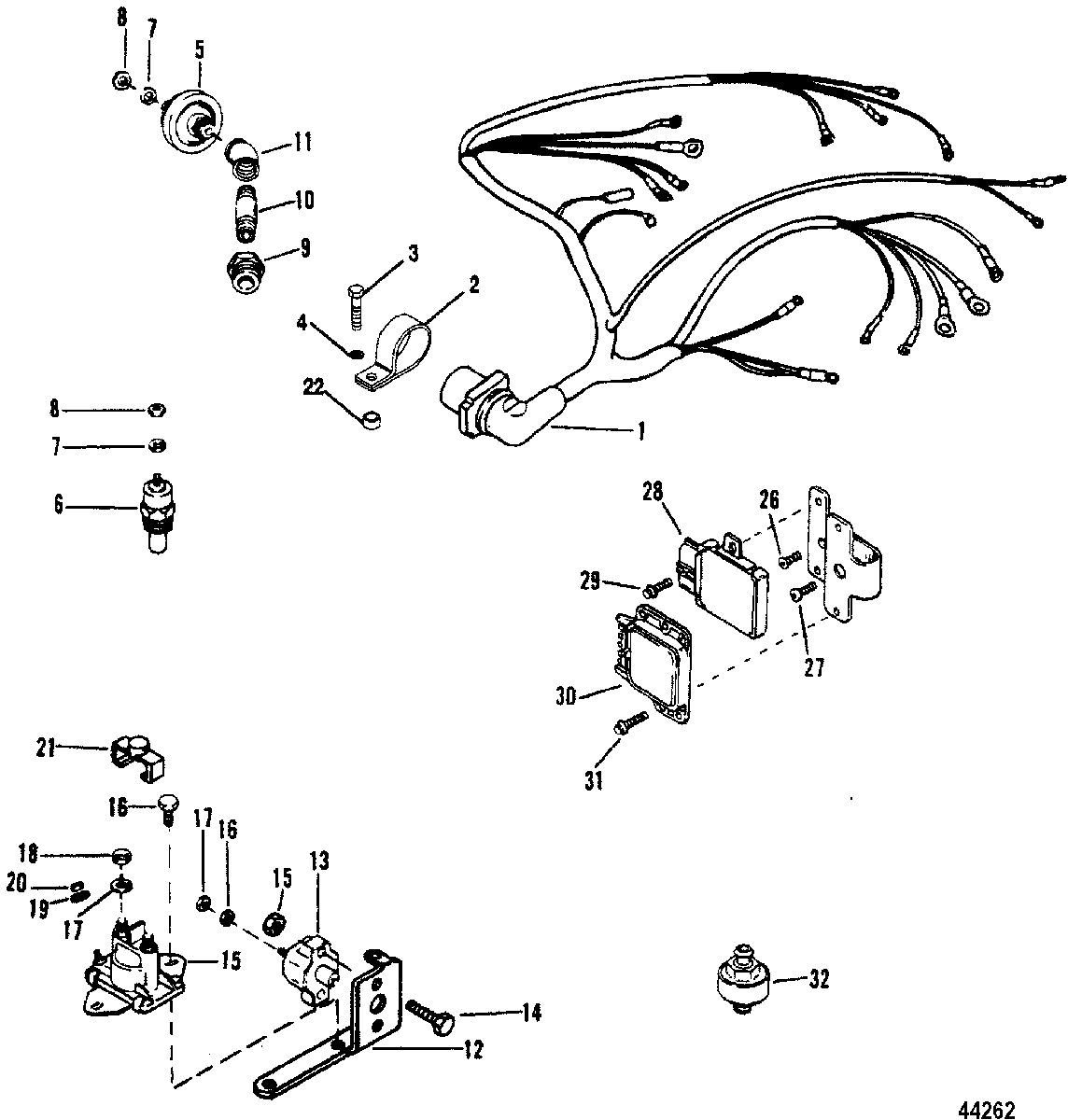

WIRING HARNESS & ELECTRICAL COMPONENTS(THUNDERBOLT V IGN.) для Mercruiser - 7.4L MIE (LH) GEN. V GM 454 V-8 1992-1996 0D715494 THRU 0F820141

  • №
    Артикул
    Название
  • 1
    84-806968A2 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 2
    54-806616 CLAMP
    CLAMP
  • 3
    10-92913 SCREW, (.437-14 x .750)
    SCREW, (.437-14 x .750)
  • 4
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 5
    8M0068784 SENDER ASSEMBLY, Oil Pressure
    SENDER ASSEMBLY, Oil Pressure
  • 5
    37293T SENDER ASSEMBLY, Oil Pressure (DUAL)
    SENDER ASSEMBLY, Oil Pressure (DUAL)
  • 6
    806490T SENDER ASSEMBLY, Water Temperature
    SENDER ASSEMBLY, Water Temperature
  • 6
    49734 SENDER ASSEMBLY, Water Temperature (DUAL)
    SENDER ASSEMBLY, Water Temperature (DUAL)
  • 7
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 8
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 9
    22-48556 BUSHING , Reducer (.250 To .125)
    BUSHING , Reducer (.250 To .125)
  • 10
    22-885153 NIPPLE
    NIPPLE
  • 11
    22-46932 ELBOW
    ELBOW
  • 12
    899719T01 BRACKET, Electrical
    BRACKET, Electrical
  • 13
    88-11178A01 BREAKER, Circuit - 50 Ampere
    BREAKER, Circuit - 50 Ampere
  • 14
    10-57583T SCREW, (#8-32 x .375)
    SCREW, (#8-32 x .375)
  • 15
    89-96158T SOLENOID, Starter
    SOLENOID, Starter
  • 16
    10-805564 SCREW, (.250-20 x .750)
    SCREW, (.250-20 x .750)
  • 17
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 18
    11-94330 NUT, (.250-20) Brass
    NUT, (.250-20) Brass
  • 19
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 20
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 21
    85-97861 INSULATOR
    INSULATOR
  • 22
    23-99299 SPACER, (.520 x .870 x .630)
    SPACER, (.520 x .870 x .630)
  • 25
    807763T BRACKET
    BRACKET
  • 26
    10-806834 SCREW (FLATHEAD)
    SCREW (FLATHEAD)
  • 27
    10-861520 SCREW, (10-32 x .50)
    SCREW, (10-32 x .50)
  • 28
    806961A01 ICM MODULE, Ignition Control Module
    ICM MODULE, Ignition Control Module
  • 29
    10-806826 SCREW, (#8-32 x .250)
    SCREW, (#8-32 x .250)
  • 30
    805443 MODULE ASSEMBLY
    MODULE ASSEMBLY
  • 31
    10-806827 SCREW, (#8-32 x .380)
    SCREW, (#8-32 x .380)
  • 32
    8M0077616 SENSOR ASSEMBLY
    SENSOR ASSEMBLY
