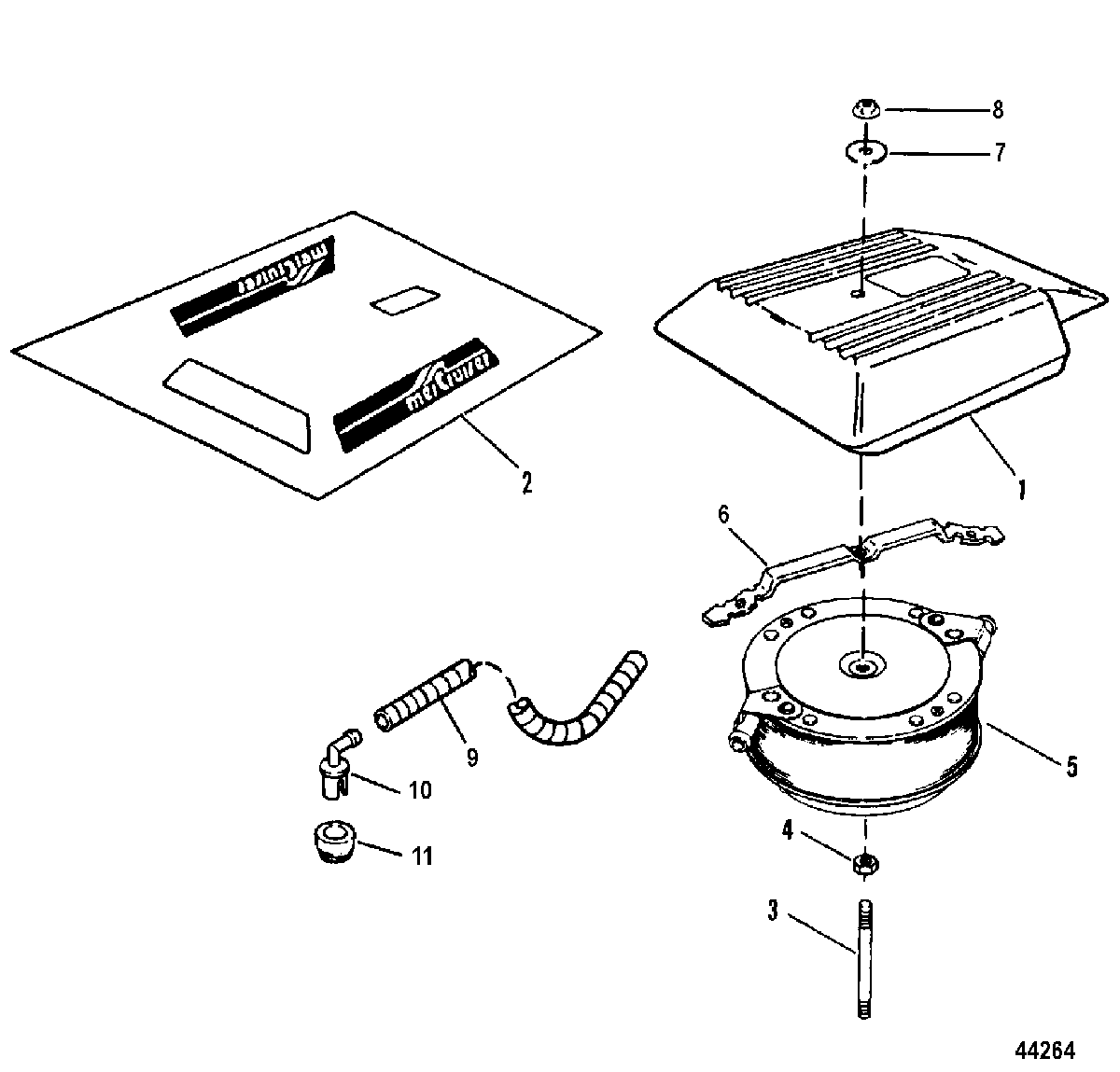

FLAME ARRESTOR для Mercruiser - 7.4L MIE (LH) GEN. V GM 454 V-8 1992-1996 0D715494 THRU 0F820141

  • №
    Артикул
    Название
  • 1
    18484A3 COVER
    COVER
  • 2
    37-812776A30 DECAL SET
    DECAL SET
  • 3
    16-805161 STUD, (4.75 In)
    Use Without Reference #6
    STUD, (4.75 In)
    Use Without Reference #6
  • 3
    16-805296 STUD, (4.50 Inch)
    Use With Reference #6
    STUD, (4.50 Inch)
    Use With Reference #6
  • 4
    11-8267139 NUT
    Use Without Reference #6
    NUT
    Use Without Reference #6
  • 5
    805298A1 FLAME ARRESTOR NEW DESIGN
    Use Without Reference #6
    FLAME ARRESTOR NEW DESIGN
    Use Without Reference #6
  • 5
    805298A1 FLAME ARRESTOR
    Use With Reference #6
    FLAME ARRESTOR
    Use With Reference #6
  • 6
    805314 RETAINER, Breather Hose
    RETAINER, Breather Hose
  • 7
    12-86400 WASHER
    WASHER
  • 8
    11-826709109 NUT, (.250-28)
    NUT, (.250-28)
  • 9
    32-8M0086022 HOSE, Breather
    HOSE, Breather
  • 10
    97850T ELBOW, 90 Degree, Breather
    ELBOW, 90 Degree, Breather
  • 11
    25-811553 GROMMET
    GROMMET
