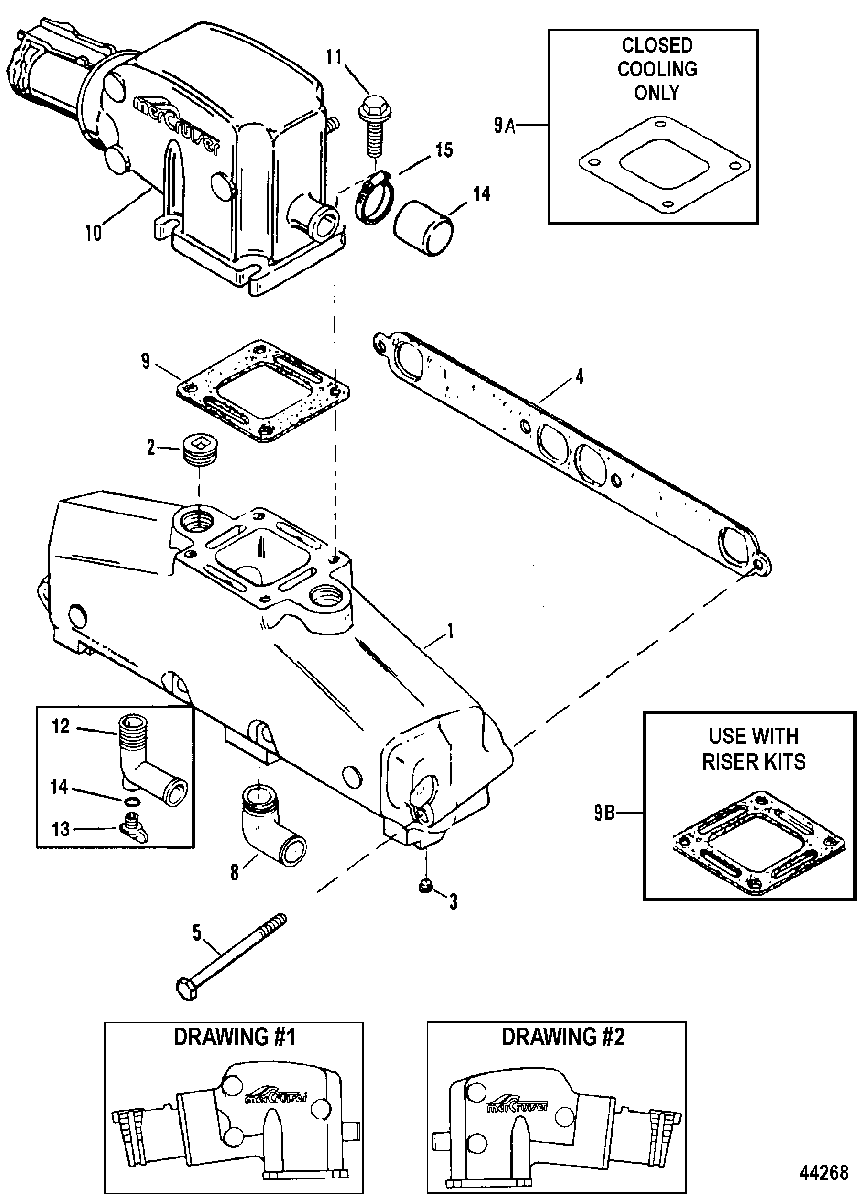

EXHAUST MANIFOLD AND EXHAUST ELBOW для Mercruiser - 7.4L MIE (LH) GEN. V GM 454 V-8 1992-1996 0D715494 THRU 0F820141

  • №
    Артикул
    Название
  • 1
    807078T10 MANIFOLD ASSEMBLY
    MANIFOLD ASSEMBLY
  • 2
    22-416223 PLUG, (3/4-14)
    PLUG, (3/4-14)
  • 3
    22-36382 FITTING, (.250-18 x .62) Brass
    FITTING, (.250-18 x .62) Brass
  • 4
    27-46820 GASKET
    GASKET
  • 5
    10-37612 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 5
    10-48424 SCREW, (.375-16 x 1.620)
    SCREW, (.375-16 x 1.620)
  • 6
    22-48556 BUSHING , Reducer (.250 To .125)
    BUSHING , Reducer (.250 To .125)
  • 7
    22-328022 PLUG, Pipe (.125-27)
    PLUG, Pipe (.125-27)
  • 8
    22-866725 FITTING, Straight (METAL)
    FITTING, Straight (METAL)
  • 9
    27-863724 GASKET (STANDARD COOLING)
    GASKET (STANDARD COOLING)
  • 9A
    27-8637251 GASKET (CLOSED COOLING)
    GASKET (CLOSED COOLING)
  • 9B
    27-863726 GASKET (USE WITH RISER KITS)
    GASKET (USE WITH RISER KITS)
  • 10
    816900A5 ELBOW ASSEMBLY, Exhaust
    See Drawing #1
    ELBOW ASSEMBLY, Exhaust
    See Drawing #1
  • 10
    816900A7 ELBOW ASSEMBLY, Exhaust
    See Drawing #2
    ELBOW ASSEMBLY, Exhaust
    See Drawing #2
  • 11
    10-865982005 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 11
    10-668631 SCREW, (3/8-16 x 2.50)
    SN# 0F159999 & Below
    SCREW, (3/8-16 x 2.50)
    SN# 0F159999 & Below
  • 11
    10-98534 SCREW, (.375-16 x 2.30)
    SN# 0F160000 & Up
    SCREW, (.375-16 x 2.30)
    SN# 0F160000 & Up
  • 12
    22-862210A01 ELBOW KIT, Drain
    (PLASTIC)
    ELBOW KIT, Drain
    (PLASTIC)
  • 12
    22-8M0119211 PLUG KIT, (.500-13) Royal Blue
    (PLASTIC)
    PLUG KIT, (.500-13) Royal Blue
    (PLASTIC)
  • 13
    25-32509 QUAD RING
    (PLASTIC)
    QUAD RING
    (PLASTIC)
  • 14
    19-805727001 CAP, Rubber
    CAP, Rubber
  • 15
    54-815504220 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • -
    93320A14 RISER KIT, Exhaust (3.00 Inch)
    EACH KIT CONTAINS TWO RISERS
    RISER KIT, Exhaust (3.00 Inch)
    EACH KIT CONTAINS TWO RISERS
  • -
    807477A5 RISER KIT, Exhaust (6.00 Inch)
    EACH KIT CONTAINS TWO RISERS
    RISER KIT, Exhaust (6.00 Inch)
    EACH KIT CONTAINS TWO RISERS
