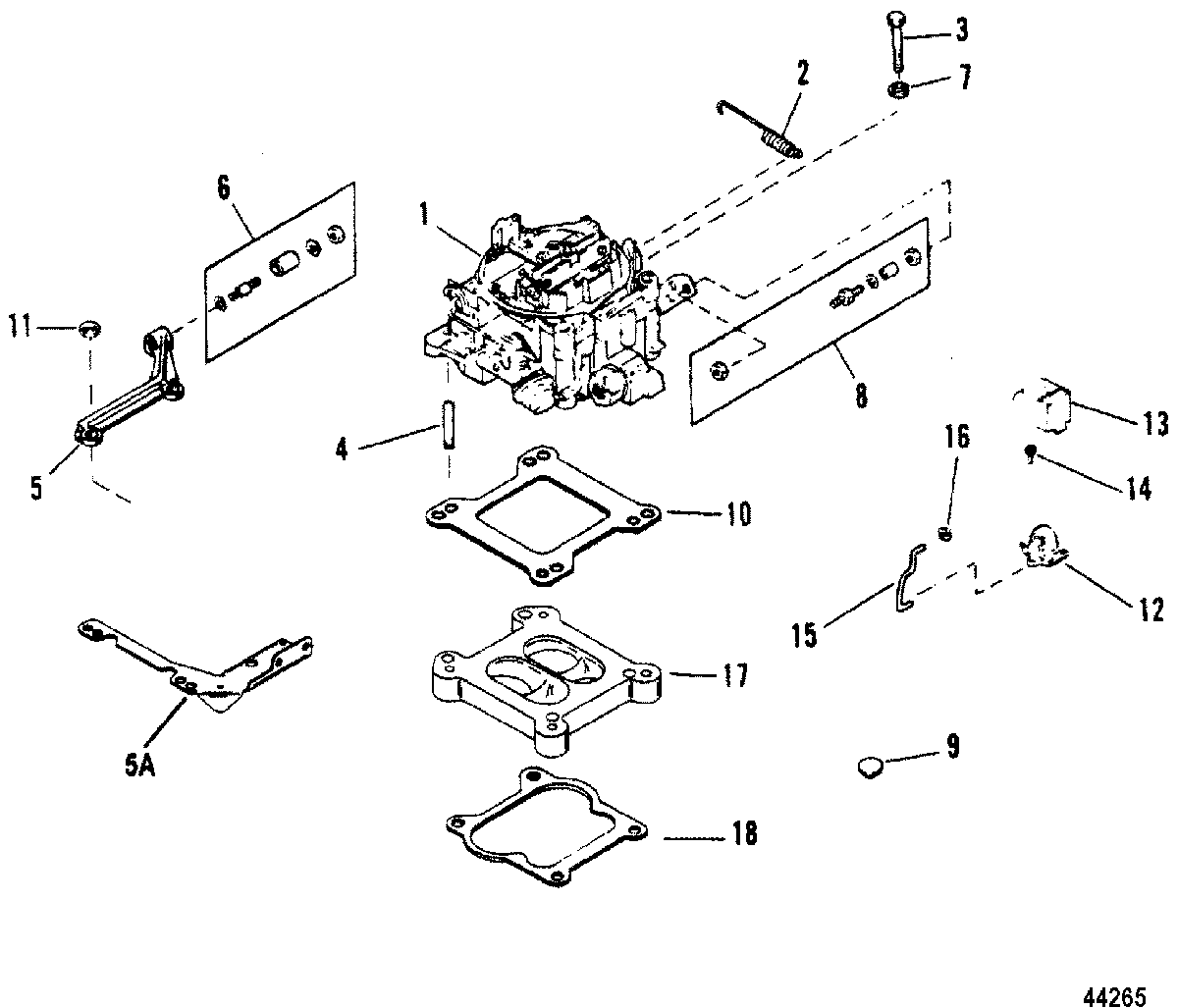

CARBURETOR AND LINKAGE(HURTH) для Mercruiser - 7.4L MIE (LH) GEN. V GM 454 V-8 1992-1996 0D715494 THRU 0F820141

  • №
    Артикул
    Название
  • 1
    3310-806969A2 CARBURETOR
    SN# 0D715494 THRU 0F349999
    CARBURETOR
    SN# 0D715494 THRU 0F349999
  • 1
    3310-8M0047212 CARBURETOR
    SN# 0F350000 & Up
    CARBURETOR
    SN# 0F350000 & Up
  • 2
    24-897454 SPRING
    SPRING
  • 3
    10-35385 SCREW, (.312-18 x 1-3/4)
    SCREW, (.312-18 x 1-3/4)
  • 3
    10-35386 SCREW, (.312-18 x 1.00)
    SCREW, (.312-18 x 1.00)
  • 4
    16-70237 STUD, (.312-18/.312-24 x 2.620)
    STUD, (.312-18/.312-24 x 2.620)
  • 4
    16-8M0113177 STUD, (.312 x 1.500)
    STUD, (.312 x 1.500)
  • 5
    805359T BRACKET (CAST)
    BRACKET (CAST)
  • 5A
    805359T BRACKET (STAMPED)
    BRACKET (STAMPED)
  • 6
    16-97477A3 STUD KIT
    STUD KIT
  • 7
    13-39107 LOCKWASHER, (.312-24)
    LOCKWASHER, (.312-24)
  • 8
    16-97477A3 STUD KIT
    STUD KIT
  • 9
    22-12524 PLUG, (.375)
    PLUG, (.375)
  • 10
    27-41610 GASKET
    GASKET
  • 11
    11-29250 NUT, (.312-24)
    NUT, (.312-24)
  • 12
    71464A01 CHOKE
    AUTOMATIC CHOKE
    CHOKE
    AUTOMATIC CHOKE
  • 13
    63922 COVER
    AUTOMATIC CHOKE
    COVER
    AUTOMATIC CHOKE
  • 14
    10-69235 SCREW, (.190-24 x .500)
    AUTOMATIC CHOKE
    SCREW, (.190-24 x .500)
    AUTOMATIC CHOKE
  • 15
    806937 ROD, Choke
    AUTOMATIC CHOKE
    ROD, Choke
    AUTOMATIC CHOKE
  • 16
    54-89668 CLIP
    AUTOMATIC CHOKE
    CLIP
    AUTOMATIC CHOKE
  • 17
    818568T SPACER
    AUTOMATIC CHOKE
    SPACER
    AUTOMATIC CHOKE
  • 17
    806177A3 SPACER
    (ELECTRIC CHOKE)
    SPACER
    (ELECTRIC CHOKE)
  • 18
    27-524572 GASKET
    GASKET
