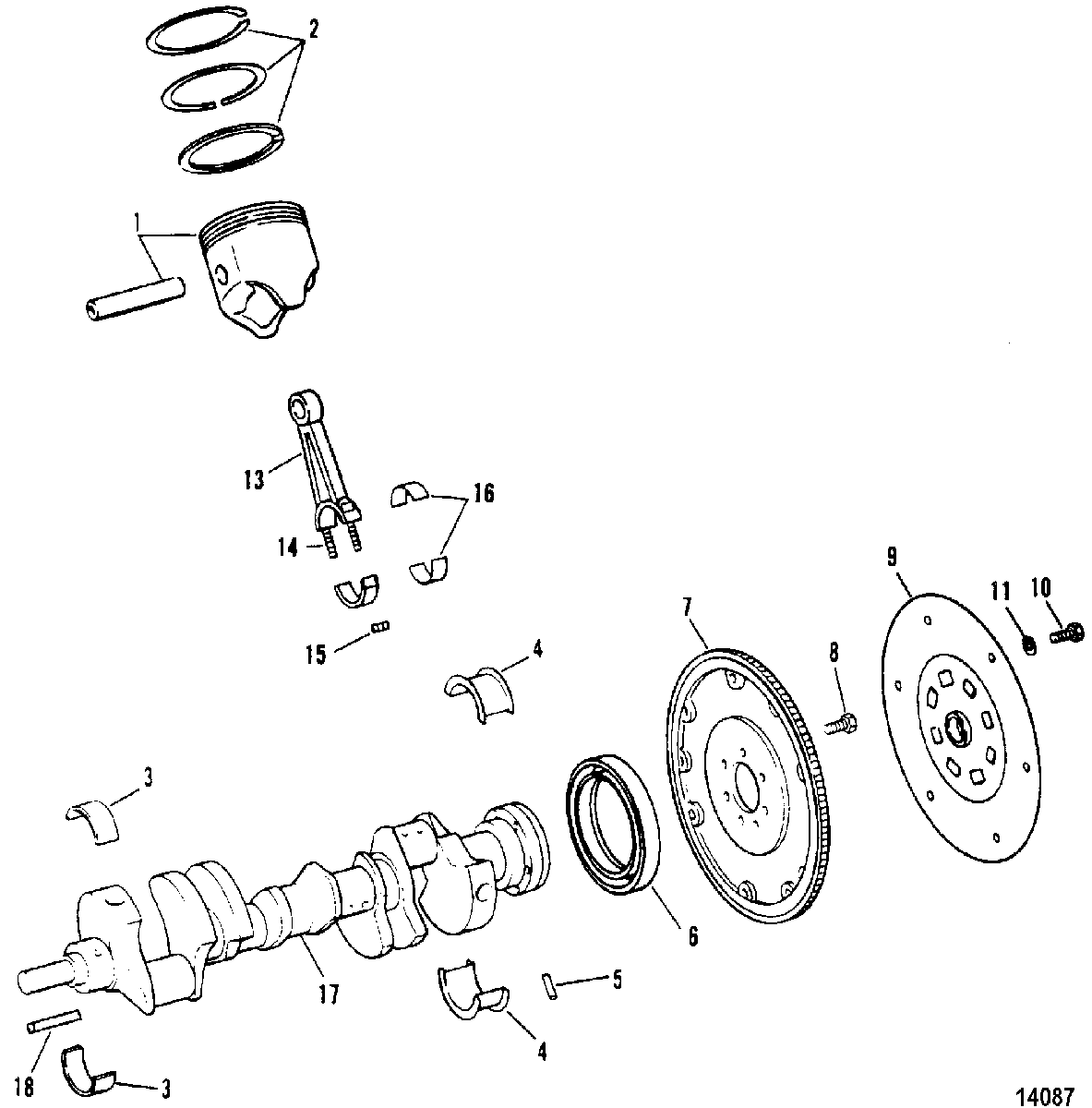

CRANKSHAFT, PISTONS AND CONNECTING RODS для Mercruiser - 7.4L MIE (LH) GEN. V GM 454 V-8 1992-1996 0D715494 THRU 0F820141

  • №
    Артикул
    Название
  • 1
    737-881714T PISTON ASSEMBLY (STANDARD)
    (Use with GM Engine Code #2XY &3XY)
    PISTON ASSEMBLY (STANDARD)
    (Use with GM Engine Code #2XY &3XY)
  • 1
    737-811602 PISTON ASSEMBLY (.030 O.S.)
    (Use with GM Engine Code #2XY &3XY)
    PISTON ASSEMBLY (.030 O.S.)
    (Use with GM Engine Code #2XY &3XY)
  • 1
    737-881714T PISTON ASSEMBLY (STANDARD)
    (Use with GM Engine Code #4XY &5XY)
    PISTON ASSEMBLY (STANDARD)
    (Use with GM Engine Code #4XY &5XY)
  • 1
    737-850449001 PISTON ASSEMBLY (.030 O.S.)
    (Use with GM Engine Code #4XY &5XY)
    PISTON ASSEMBLY (.030 O.S.)
    (Use with GM Engine Code #4XY &5XY)
  • 2
    39-827651T RING SET, Piston - Standard (STANDARD)
    (Use with GM Engine Code #2XY &3XY)
    RING SET, Piston - Standard (STANDARD)
    (Use with GM Engine Code #2XY &3XY)
  • 2
    39-850447 RING SET, Piston - .030 Oversize (.030 O.S.)
    (Use with GM Engine Code #2XY &3XY)
    RING SET, Piston - .030 Oversize (.030 O.S.)
    (Use with GM Engine Code #2XY &3XY)
  • 2
    39-827651T RING, Piston (STANDARD)
    (Use with GM Engine Code #4XY &5XY)
    RING, Piston (STANDARD)
    (Use with GM Engine Code #4XY &5XY)
  • 2
    39-850447 RING, Piston (.030 O.S.)
    (Use with GM Engine Code #4XY &5XY)
    RING, Piston (.030 O.S.)
    (Use with GM Engine Code #4XY &5XY)
  • 3/4
    23-818473001 BEARING SET, Main - Standard
    BEARING SET, Main - Standard
  • 3/4
    23-818474 BEARING SET, Main - .001 Undersize
    BEARING SET, Main - .001 Undersize
  • 3/4
    23-818475 BEARING SET, Main - .002 Undersize
    BEARING SET, Main - .002 Undersize
  • 3/4
    23-818476001 BEARING SET, Main - .010 Undersize
    BEARING SET, Main - .010 Undersize
  • 3/4
    23-818477 BEARING SET, Main - .020 Undersize
    BEARING SET, Main - .020 Undersize
  • 5
    17-843378 PIN, Dowel (1/4 In. Diameter)
    PIN, Dowel (1/4 In. Diameter)
  • 6
    26-811554 SEAL
    SEAL
  • 7
    200-8M0084512 FLYWHEEL
    FLYWHEEL
  • 8
    10-845757 SCREW, (.437-20 x 1.00)
    SCREW, (.437-20 x 1.00)
  • 9
    860125T DRIVEPLATE ASSEMBLY
    HURTH
    DRIVEPLATE ASSEMBLY
    HURTH
  • 10
    10-35091 SCREW, (.375-16 x 1.00)
    HURTH
    SCREW, (.375-16 x 1.00)
    HURTH
  • 11
    13-35048 LOCKWASHER, (.375)
    HURTH
    LOCKWASHER, (.375)
    HURTH
  • 9
    860125T DRIVE PLATE
    BORG WARNER
    DRIVE PLATE
    BORG WARNER
  • 10
    10-35091 SCREW, (.375-16 x 1.00)
    BORG WARNER
    SCREW, (.375-16 x 1.00)
    BORG WARNER
  • 11
    13-35048 LOCKWASHER, (.375)
    BORG WARNER
    LOCKWASHER, (.375)
    BORG WARNER
  • 13
    614-8M0030663 CONNECTING ROD
    CONNECTING ROD
  • 14
    10-52192 BOLT
    BOLT
  • 15
    11-37493 NUT, (.375-24)
    NUT, (.375-24)
  • 16
    23-85726001 BEARING SET, Connecting Rod - Standard
    BEARING SET, Connecting Rod - Standard
  • 16
    23-85727 BEARING SET, Connecting Rod - (.001 Undersize)
    BEARING SET, Connecting Rod - (.001 Undersize)
  • 16
    23-85728 BEARING SET, Connecting Rod - (.002 Undersize)
    BEARING SET, Connecting Rod - (.002 Undersize)
  • 16
    23-85691 BEARING SET, Connecting Rod - (.010 Undersize)
    BEARING SET, Connecting Rod - (.010 Undersize)
  • 16
    23-85729 BEARING SET, Connecting Rod - (.020 Undersize)
    BEARING SET, Connecting Rod - (.020 Undersize)
  • 17
    429-811551 CRANKSHAFT
    CRANKSHAFT
  • 18
    28-845607 KEY
    KEY
  • -
    27-811547A92 GASKET SET, Engine, Overhaul
    GASKET SET, Engine, Overhaul
