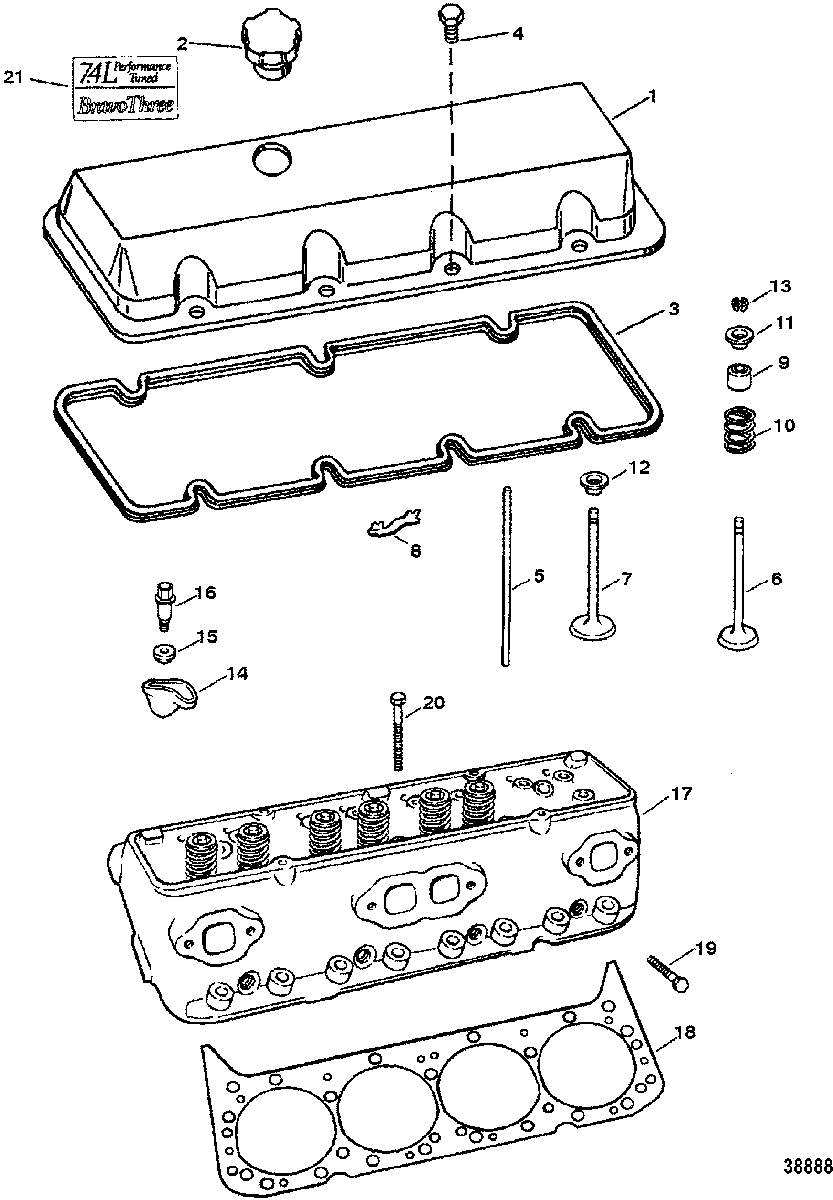

CYLINDER HEAD AND ROCKER COVER для Mercruiser - 7.4L MIE (LH) GEN. V GM 454 V-8 1992-1996 0D715494 THRU 0F820141

  • №
    Артикул
    Название
  • 1
    850462 ROCKER COVER
    ROCKER COVER
  • 2
    36-811569 CAP, Oil Tank
    CAP, Oil Tank
  • 3
    27-8M0092920 GASKET, Rocker Cover
    GASKET, Rocker Cover
  • 4
    10-811589 BOLT, (1/4-20 x 0.875)
    BOLT, (1/4-20 x 0.875)
  • 5
    75589 ROD (INLET)
    ROD (INLET)
  • 5
    75590 ROD (EXHAUST)
    ROD (EXHAUST)
  • 6
    814506 VALVE, Exhaust (STANDARD)
    VALVE, Exhaust (STANDARD)
  • 6
    814507001 VALVE, Exhaust (.015 O.S.)
    VALVE, Exhaust (.015 O.S.)
  • 7
    49134 VALVE, Intake (STANDARD)
    VALVE, Intake (STANDARD)
  • 7
    49135 VALVE (.015 O.S.)
    VALVE (.015 O.S.)
  • 8
    811585 GUIDE
    GUIDE
  • 9
    26-811545 SEAL, Valve
    SEAL, Valve
  • 10
    24-14754T SPRING
    SPRING
  • 11
    14753 CAP
    CAP
  • 12
    14755 ROTATOR
    ROTATOR
  • 13
    28-54530 KEY
    KEY
  • 14
    811590 ROCKER ARM
    ROCKER ARM
  • 15
    850472 BALL, Rocker Arm
    BALL, Rocker Arm
  • 16
    10-811593 BOLT, Rocker Arm
    BOLT, Rocker Arm
  • 17
    938-883492R1 CYLINDER HEAD (3/8-16 THREADS)
    CYLINDER HEAD (3/8-16 THREADS)
  • 17
    938-883492R1 CYLINDER HEAD (7/16-14 THREADS)
    CYLINDER HEAD (7/16-14 THREADS)
  • 18
    27-879150141 GASKET
    GASKET
  • 19
    8M0102366 BOLT, (2.00 Inch)
    BOLT, (2.00 Inch)
  • 20
    8M0102366 BOLT, (4.125 Inch)
    BOLT, (4.125 Inch)
  • -
    27-811547A92 GASKET SET, Engine, Overhaul
    GASKET SET, Engine, Overhaul
