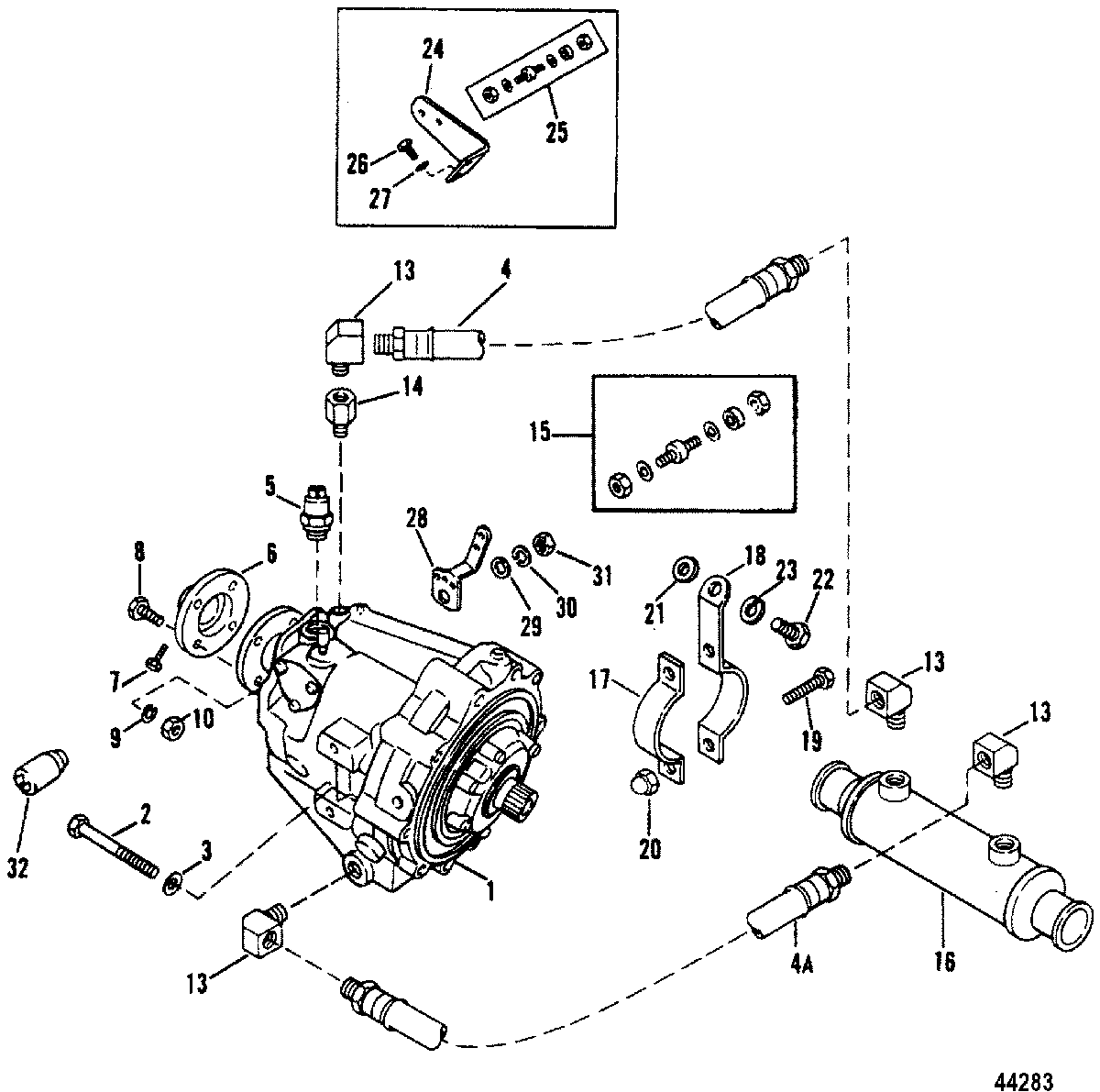

TRANSMISSION AND RELATED PARTS для Mercruiser - 7.4L MIE (LH) GEN. V GM 454 V-8 1992-1996 0D715494 THRU 0F820141

  • №
    Артикул
    Название
  • 1
    47810A19 TRANSMISSION (1.1:1 DIRECT DRIVE)
    TRANSMISSION (1.1:1 DIRECT DRIVE)
  • 1
    47811A7 TRANSMISSION (1.5:1 REDUCTION)
    TRANSMISSION (1.5:1 REDUCTION)
  • 1
    47812A7 TRANSMISSION (2.0:1 REDUCTION)
    TRANSMISSION (2.0:1 REDUCTION)
  • 1
    47813A7 TRANSMISSION (2.5:1 REDUCTION)
    TRANSMISSION (2.5:1 REDUCTION)
  • 1
    47814A7 TRANSMISSION (3.0:1 REDUCTION)
    TRANSMISSION (3.0:1 REDUCTION)
  • 2
    10-60179 SCREW, (.437-14 x 3.500)
    SCREW, (.437-14 x 3.500)
  • 3
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 4
    32-475166 HOSE ASSEMBLY, (30.00 Inches)
    HOSE ASSEMBLY, (30.00 Inches)
  • 4A
    32-475166 HOSE ASSEMBLY, (30.00 Inches)
    HOSE ASSEMBLY, (30.00 Inches)
  • 5
    87-88031 SWITCH ASSEMBLY
    SWITCH ASSEMBLY
  • 6
    79476A1 FLANGE ASSEMBLY, (5.00 x 1.00)
    FLANGE ASSEMBLY, (5.00 x 1.00)
  • 6
    79476A2 FLANGE ASSEMBLY, (5.00 x 1.125)
    FLANGE ASSEMBLY, (5.00 x 1.125)
  • 6
    79476A3 FLANGE ASSEMBLY, (5.00 x 1.25)
    FLANGE ASSEMBLY, (5.00 x 1.25)
  • 6
    79476A4 FLANGE ASSEMBLY, (5.00 x 1.375)
    FLANGE ASSEMBLY, (5.00 x 1.375)
  • 6
    79476A5 FLANGE ASSEMBLY, (5.00 x 1.50)
    FLANGE ASSEMBLY, (5.00 x 1.50)
  • 6
    79476A6 FLANGE ASSEMBLY, (5.00 x 1.75)
    FLANGE ASSEMBLY, (5.00 x 1.75)
  • 6
    79476A7 FLANGE ASSEMBLY, (5.00 x 2.00)
    FLANGE ASSEMBLY, (5.00 x 2.00)
  • 7
    10-60171 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 7
    10-60169 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 8
    10-805159 SCREW, (.437-20 x 1.500)
    SCREW, (.437-20 x 1.500)
  • 9
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 10
    11-22024 NUT, (.437-14)
    NUT, (.437-14)
  • 13
    22-47629 ELBOW, 90 Degree
    ELBOW, 90 Degree
  • 13
    22-63835 ELBOW, 45 Degree
    ELBOW, 45 Degree
  • 14
    22-88517 FITTING, Reducing
    FITTING, Reducing
  • 15
    16-97477A3 STUD KIT
    STUD KIT
  • 16
    63832T COOLER, Transmission Oil
    COOLER, Transmission Oil
  • 17
    56328A1 BRACKET (SHORT)
    BRACKET (SHORT)
  • 18
    63820T1 BRACKET (LONG)
    BRACKET (LONG)
  • 19
    10-60300 SCREW, (.250-28 x .750)
    SCREW, (.250-28 x .750)
  • 20
    11-30506 NUT, (.250-28)
    NUT, (.250-28)
  • 21
    22-816397 FITTING
    FITTING
  • 22
    10-47258 SCREW, (.312-18 x .620)
    SCREW, (.312-18 x .620)
  • 23
    13-39107 LOCKWASHER, (.312-24)
    LOCKWASHER, (.312-24)
  • 24
    18351A1 BRACKET ASSEMBLY
    BRACKET ASSEMBLY
  • 25
    16-97477A3 STUD KIT
    STUD KIT
  • 26
    10-54615 SCREW, (.250-20 x .625)
    SCREW, (.250-20 x .625)
  • 27
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 28
    43325 LEVER
    LEVER
  • 29
    12-20722 WASHER, (.328 x .625 x .060)
    WASHER, (.328 x .625 x .060)
  • 30
    13-26993 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 31
    11-22053 NUT, (.312-24)
    NUT, (.312-24)
  • 32
    47613 SWITCH
    SWITCH
