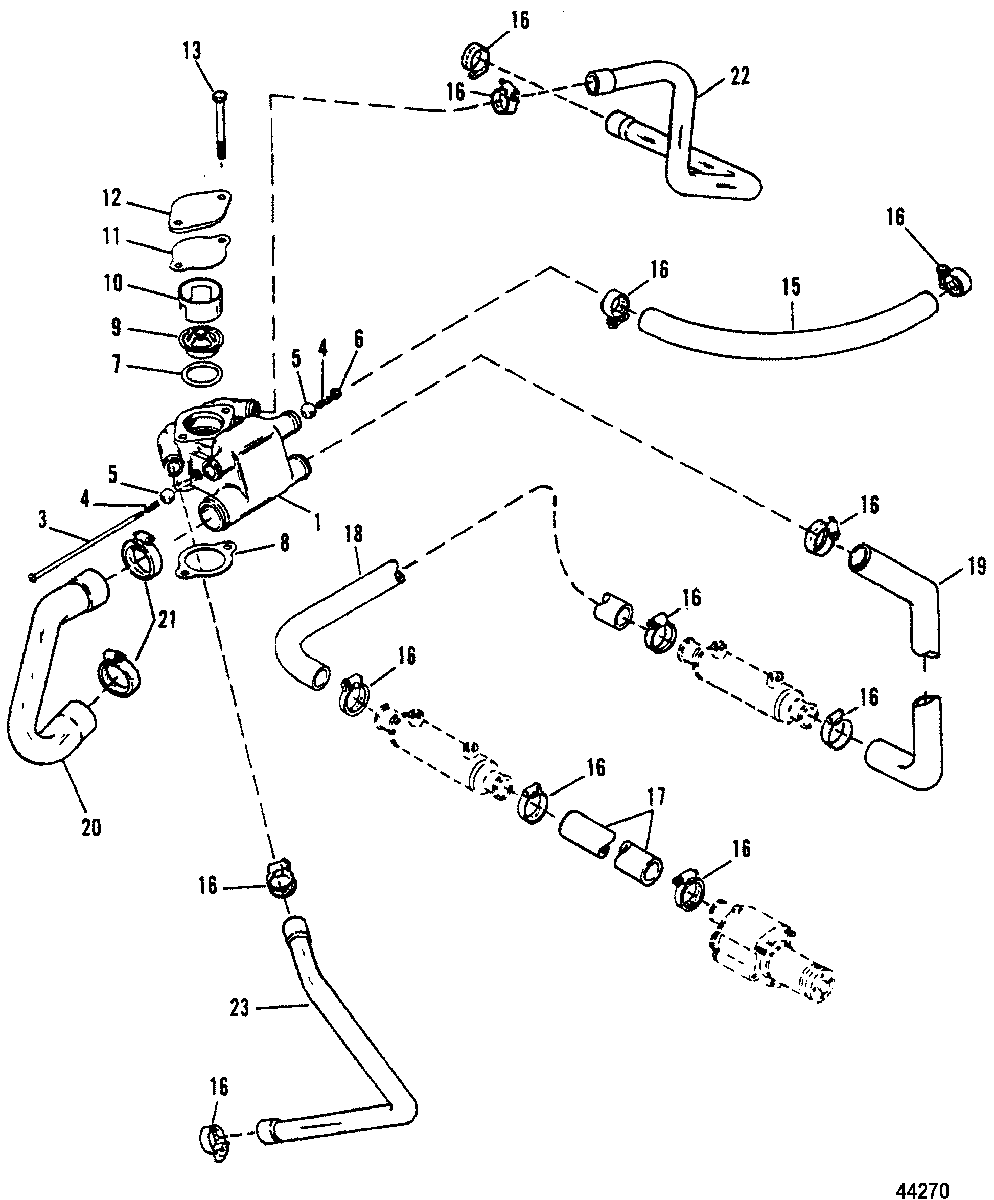

THERMOSTAT HOUSING(STANDARD COOLING) 0D715494 - 0F349999 для Mercruiser - 7.4L MIE (LH) GEN. V GM 454 V-8 1992-1996 0D715494 THRU 0F820141

  • №
    Артикул
    Название
  • 1
    16413A9 HOUSING ASSEMBLY, Thermostat
    HOUSING ASSEMBLY, Thermostat
  • 3
    10-17989 SCREW, (#10-32 x 8.600)
    IF APPLICABLE
    SCREW, (#10-32 x 8.600)
    IF APPLICABLE
  • 4
    24-75533 SPRING
    IF APPLICABLE
    SPRING
    IF APPLICABLE
  • 5
    30-98475 BALL, Nylon
    IF APPLICABLE
    BALL, Nylon
    IF APPLICABLE
  • 6
    11-826709106 NUT, (#10-32)
    IF APPLICABLE
    NUT, (#10-32)
    IF APPLICABLE
  • 7
    25-30224 O-RING, (1.859 x .139)
    O-RING, (1.859 x .139)
  • 8
    27-530451 GASKET
    GASKET
  • 9
    8M0089715 THERMOSTAT, (140 Degrees)
    THERMOSTAT, (140 Degrees)
  • 10
    23-806922 SLEEVE
    SLEEVE
  • 11
    27-331792 GASKET
    GASKET
  • 12
    17494A1 COVER KIT
    COVER KIT
  • 13
    10-60410 SCREW, (.375-16 x 4.250)
    SCREW, (.375-16 x 4.250)
  • 15
    32-817433 HOSE (DIRECT DRIVE)
    HOSE (DIRECT DRIVE)
  • 15
    32-817434 HOSE (V-DRIVE)
    HOSE (V-DRIVE)
  • 16
    54-815504220 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 17
    32-821417 HOSE, WATER PUMP TO OIL COOLER (HURTH)
    HOSE, WATER PUMP TO OIL COOLER (HURTH)
  • 17
    32-821416 HOSE, WATER PUMP TO OIL COOLER (BORG WARNER)
    HOSE, WATER PUMP TO OIL COOLER (BORG WARNER)
  • 18
    32-19081 HOSE, COOLER TO COOLER (DIRECT DRIVE - HURTH)
    HOSE, COOLER TO COOLER (DIRECT DRIVE - HURTH)
  • 18
    32-63829 HOSE, COOLER TO COOLER (BORG WARNER)
    HOSE, COOLER TO COOLER (BORG WARNER)
  • 18
    32-814749 HOSE, COOLER TO COOLER (V- DRIVE - HURTH)
    HOSE, COOLER TO COOLER (V- DRIVE - HURTH)
  • 19
    32-896999 HOSE, OIL COOLER TO THERMOSTAT HSG. (HURTH)
    HOSE, OIL COOLER TO THERMOSTAT HSG. (HURTH)
  • 19
    32-16011 HOSE, Thermostat Housing, OIL COOLER TO THERMOSTAT HSG. (BORG WARNER)
    HOSE, Thermostat Housing, OIL COOLER TO THERMOSTAT HSG. (BORG WARNER)
  • 20
    32-897181 HOSE, THERMOSTAT HOUSING TO WATER PUMP
    HOSE, THERMOSTAT HOUSING TO WATER PUMP
  • 21
    54-815504232 CLAMP, Worm Gear (2.50 Diameter)
    CLAMP, Worm Gear (2.50 Diameter)
  • 22
    32-973852 HOSE, COVER TO EXHAUST MANIFOLD (PORT)
    HOSE, COVER TO EXHAUST MANIFOLD (PORT)
  • 23
    32-897301 HOSE, COVER TO EXHAUST MANIFOLD (STBD)
    HOSE, COVER TO EXHAUST MANIFOLD (STBD)
  • -
    32-897145 HOSE, Seawater Pump To T-Fitting
    BORG WARNER R.H. ROTATION
    HOSE, Seawater Pump To T-Fitting
    BORG WARNER R.H. ROTATION
  • -
    805135 COUPLER, Hose
    BORG WARNER R.H. ROTATION
    COUPLER, Hose
    BORG WARNER R.H. ROTATION
