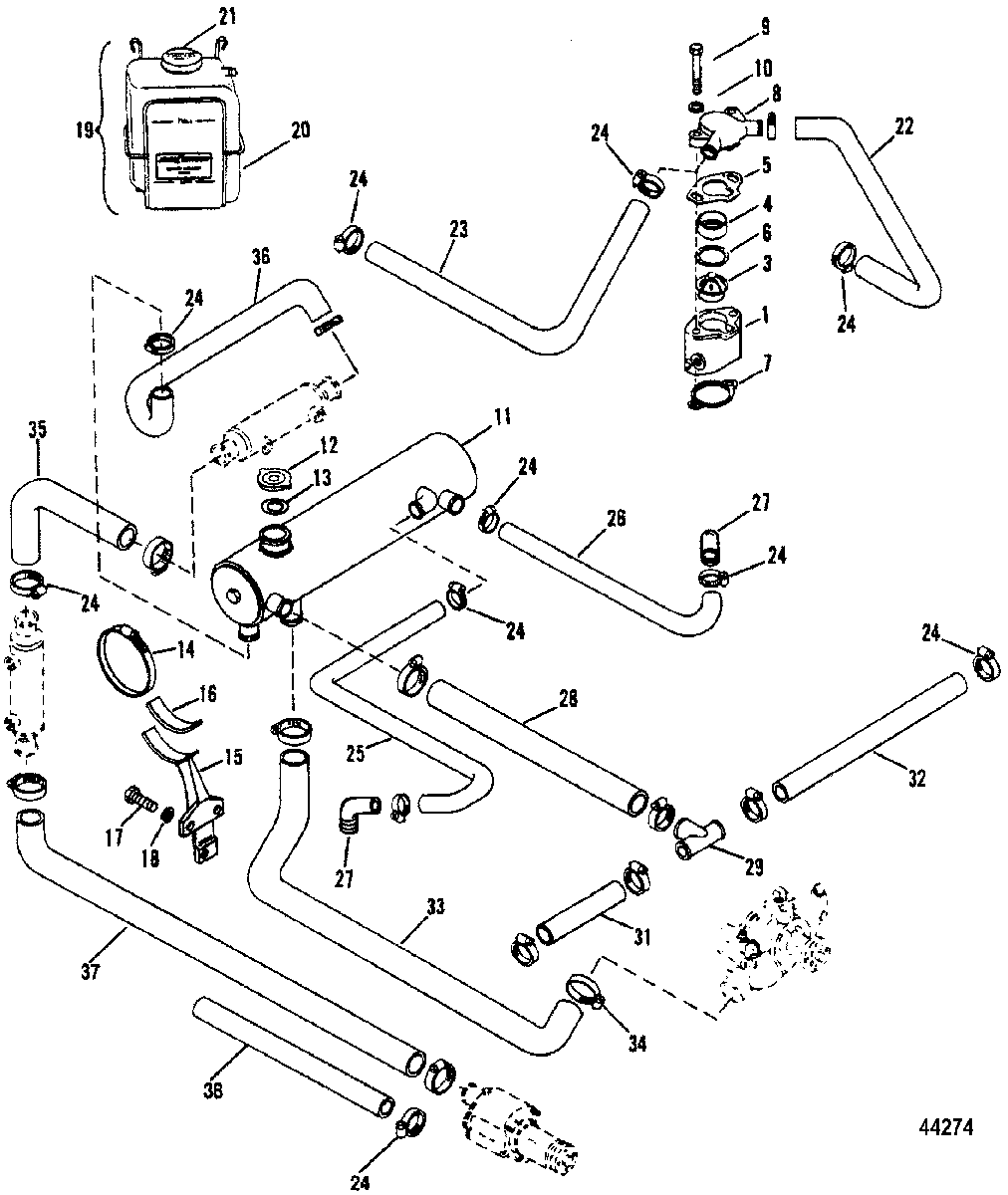

CLOSED COOLING SYSTEM(HURTH) для Mercruiser - 7.4L MIE (LH) GEN. V GM 454 V-8 1992-1996 0D715494 THRU 0F820141

  • №
    Артикул
    Название
  • 1
    55131A5 HOUSING ASSEMBLY, Thermostat
    HOUSING ASSEMBLY, Thermostat
  • 3
    8M0109441 THERMOSTAT (160 DEG.)
    THERMOSTAT (160 DEG.)
  • 4
    23-47508T SLEEVE
    SLEEVE
  • 5
    27-488181 GASKET (UPPER)
    GASKET (UPPER)
  • 6
    27-47510 GASKET (MIDDLE)
    GASKET (MIDDLE)
  • 7
    27-530451 GASKET (LOWER)
    GASKET (LOWER)
  • 8
    8M0061068 COVER
    COVER
  • 9
    10-48115 SCREW, (.375-16 x 3.50)
    SCREW, (.375-16 x 3.50)
  • 10
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 11
    814864A2 RESERVOIR ASSEMBLY
    RESERVOIR ASSEMBLY
  • 11
    22-328022 PLUG, Pipe (.125-27)
    PLUG, Pipe (.125-27)
  • 11
    27-95688 GASKET, End Cover
    GASKET, End Cover
  • 11
    816638 COVER, End
    COVER, End
  • 11
    10-814877 BOLT, End Cover
    BOLT, End Cover
  • 12
    36-808108 CAP
    CAP
  • 13
    27-71614 GASKET
    GASKET
  • 14
    54-815504388 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 15
    44441A3 BRACKET ASSEMBLY, Mounting
    BRACKET ASSEMBLY, Mounting
  • 16
    772231 PAD
    PAD
  • 17
    10-34353 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 18
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 17
    10-47461 SCREW, (.437-14 x 1.00)
    SCREW, (.437-14 x 1.00)
  • 17
    10-37269 SCREW, (.437-14 x 2.00)
    SCREW, (.437-14 x 2.00)
  • 18
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 19
    71587A10 RECOVERY KIT, Coolant
    (Note: Coolant Recovery System is sold as a complete kit. Components parts can be puchased locally.)
    RECOVERY KIT, Coolant
    (Note: Coolant Recovery System is sold as a complete kit. Components parts can be puchased locally.)
  • -
    32-774572 HOSE, (48.00 Inches Bulk)
    HOSE, (48.00 Inches Bulk)
  • 20
    71587A11 BOTTLE, Plastic
    BOTTLE, Plastic
  • 21
    72058 CAP
    CAP
  • 22
    32-973853 HOSE, COVER TO MANIFOLD (PORT)
    HOSE, COVER TO MANIFOLD (PORT)
  • 23
    32-897301 HOSE, COVER TO MANIFOLD (STARBOARD)
    HOSE, COVER TO MANIFOLD (STARBOARD)
  • 24
    54-815504220 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 25
    32-805106 HOSE, RESERVOIR/MANIFOLD (STBD.)
    DIRECT DRIVE
    HOSE, RESERVOIR/MANIFOLD (STBD.)
    DIRECT DRIVE
  • 26
    32-897190 HOSE, RESERVOIR/MANIFOLD (PORT)
    DIRECT DRIVE
    HOSE, RESERVOIR/MANIFOLD (PORT)
    DIRECT DRIVE
  • 25
    32-8M0062614 HOSE, (48.00 Inches Bulk), RESERVOIR/MANIFOLD (STBD.)
    V-DRIVE
    HOSE, (48.00 Inches Bulk), RESERVOIR/MANIFOLD (STBD.)
    V-DRIVE
  • 26
    32-919541 HOSE, RESERVOIR/MANIFOLD (PORT)
    V-DRIVE
    HOSE, RESERVOIR/MANIFOLD (PORT)
    V-DRIVE
  • 27
    22-36305T ELBOW, (90 Degrees), EXHAUST MANIFOLD - TOP (90 DEG.)
    ELBOW, (90 Degrees), EXHAUST MANIFOLD - TOP (90 DEG.)
  • 28
    32-8M0062665 HOSE, (48.00 Inches Bulk), TEE TO RESERVOIR (DIRECT DRIVE)
    HOSE, (48.00 Inches Bulk), TEE TO RESERVOIR (DIRECT DRIVE)
  • 28
    32-91033 HOSE, TEE TO RESERVOIR (V-DRIVE)
    HOSE, TEE TO RESERVOIR (V-DRIVE)
  • 29
    22-55133 TEE
    TEE
  • 31
    32-8174393 HOSE, TEE TO ELBOW (PORT)
    HOSE, TEE TO ELBOW (PORT)
  • 32
    32-8174381 HOSE, TEE TO ELBOW (STARBOARD)
    HOSE, TEE TO ELBOW (STARBOARD)
  • 33
    32-8215081 HOSE, RESERVOIR TO WATER PUMP
    HOSE, RESERVOIR TO WATER PUMP
  • 34
    54-815504232 CLAMP, Worm Gear (2.50 Diameter)
    CLAMP, Worm Gear (2.50 Diameter)
  • 35
    32-19081 HOSE, OIL COOLER TO OIL COOLER (DIRECT DRIVE)
    HOSE, OIL COOLER TO OIL COOLER (DIRECT DRIVE)
  • 35
    32-814749 HOSE, OIL COOLER TO OIL COOLER (V-DRIVE)
    HOSE, OIL COOLER TO OIL COOLER (V-DRIVE)
  • 36
    32-19226 HOSE, OIL COOLER TO RESERVOIR
    HOSE, OIL COOLER TO RESERVOIR
  • 37
    32-821417 HOSE, WATER PUMP TO OIL COOLER
    HOSE, WATER PUMP TO OIL COOLER
  • 38
    32-897145 HOSE, Seawater Pump To T-Fitting
    HOSE, Seawater Pump To T-Fitting
