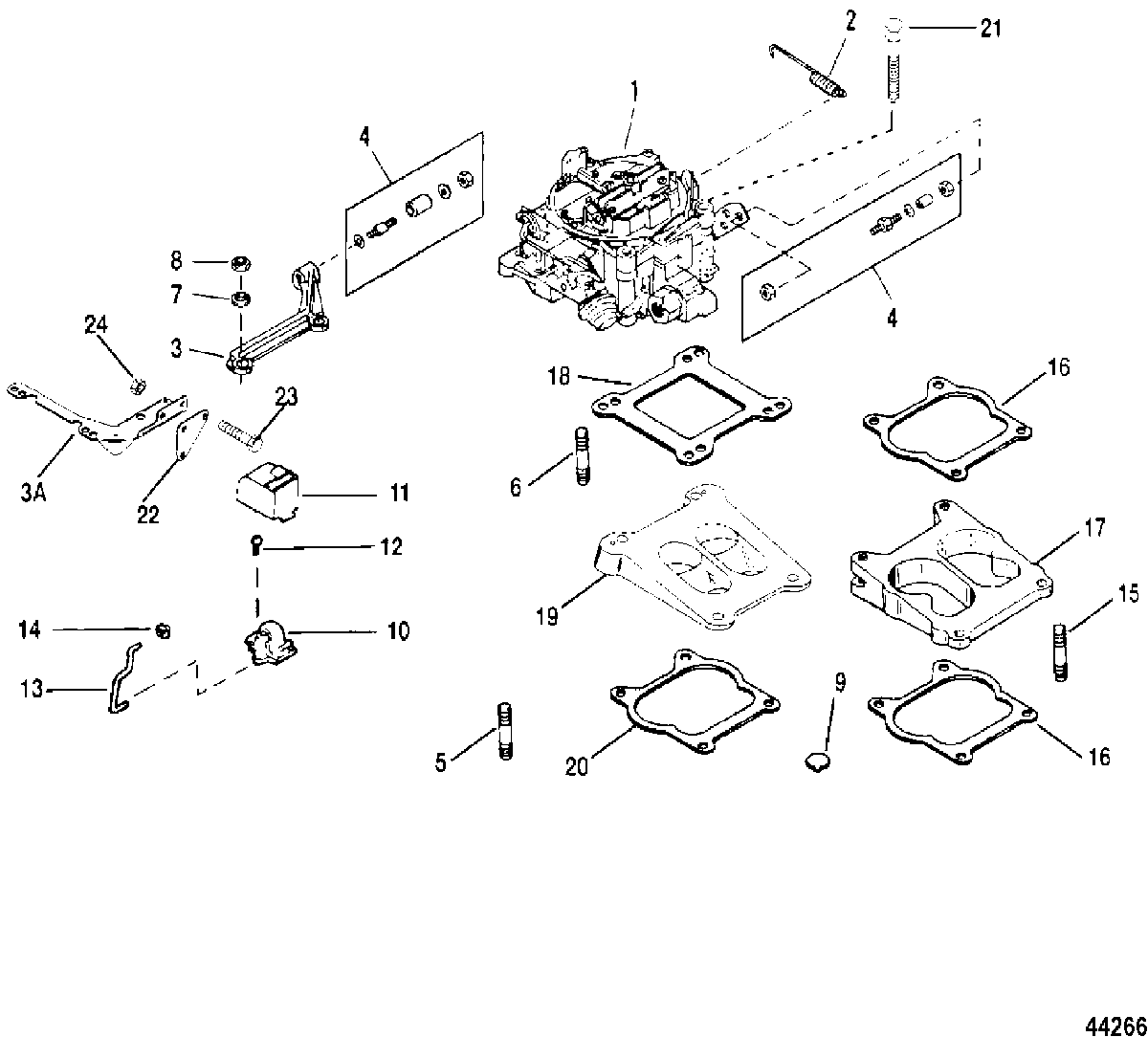

CARBURETOR AND LINKAGE(BORG WARNER) для Mercruiser - 7.4L MIE (LH) GEN. V GM 454 V-8 1992-1996 0D715494 THRU 0F820141

  • №
    Артикул
    Название
  • 1
    3310-806969A3 CARBURETOR
    SN# 0D715494 THRU 0F349999
    CARBURETOR
    SN# 0D715494 THRU 0F349999
  • 1
    3310-8M0047212 CARBURETOR
    SN# 0F350000 & Up
    CARBURETOR
    SN# 0F350000 & Up
  • 2
    24-897454 SPRING
    SPRING
  • 3
    805359T BRACKET (CAST)
    BRACKET (CAST)
  • 3A
    805359T BRACKET (STAMPED)
    BRACKET (STAMPED)
  • 4
    16-97477A3 STUD KIT
    STUD KIT
  • 5
    16-53724 STUD, (5/16 x 1-3/4)
    STUD, (5/16 x 1-3/4)
  • 6
    16-8M0113177 STUD, (.312 x 1.500)
    STUD, (.312 x 1.500)
  • 7
    12-20084 WASHER, (.328 x .562 x .062)
    WASHER, (.328 x .562 x .062)
  • 8
    11-29250 NUT, (.312-24)
    NUT, (.312-24)
  • 9
    22-12524 PLUG, (.375)
    PLUG, (.375)
  • 10
    71464A01 CHOKE
    AUTOMATIC CHOKE
    CHOKE
    AUTOMATIC CHOKE
  • 11
    63922 COVER
    AUTOMATIC CHOKE
    COVER
    AUTOMATIC CHOKE
  • 12
    10-69235 SCREW, (.190-24 x .500)
    AUTOMATIC CHOKE
    SCREW, (.190-24 x .500)
    AUTOMATIC CHOKE
  • 13
    806937 ROD, Choke
    AUTOMATIC CHOKE
    ROD, Choke
    AUTOMATIC CHOKE
  • 14
    54-89668 CLIP
    AUTOMATIC CHOKE
    CLIP
    AUTOMATIC CHOKE
  • 15
    16-63332 STUD, (.312 x 1.2812)
    2 HOLE WEDGE
    STUD, (.312 x 1.2812)
    2 HOLE WEDGE
  • 16
    27-524572 GASKET
    2 HOLE WEDGE
    GASKET
    2 HOLE WEDGE
  • 17
    821109T WEDGE, Carburetor
    2 HOLE WEDGE
    WEDGE, Carburetor
    2 HOLE WEDGE
  • 18
    27-41610 GASKET
    4 HOLE WEDGE
    GASKET
    4 HOLE WEDGE
  • 19
    806823A1 WEDGE
    4 HOLE WEDGE
    WEDGE
    4 HOLE WEDGE
  • 20
    27-524572 GASKET
    4 HOLE WEDGE
    GASKET
    4 HOLE WEDGE
  • 21
    10-807066 SCREW, (1.5 In)
    4 HOLE WEDGE
    SCREW, (1.5 In)
    4 HOLE WEDGE
  • 22
    806996 BRACKET
    BRACKET
  • 23
    10-38601 SCREW, (.250-28 x 1.250)
    SCREW, (.250-28 x 1.250)
  • 24
    11-8267089 NUT, (.250-28)
    NUT, (.250-28)
