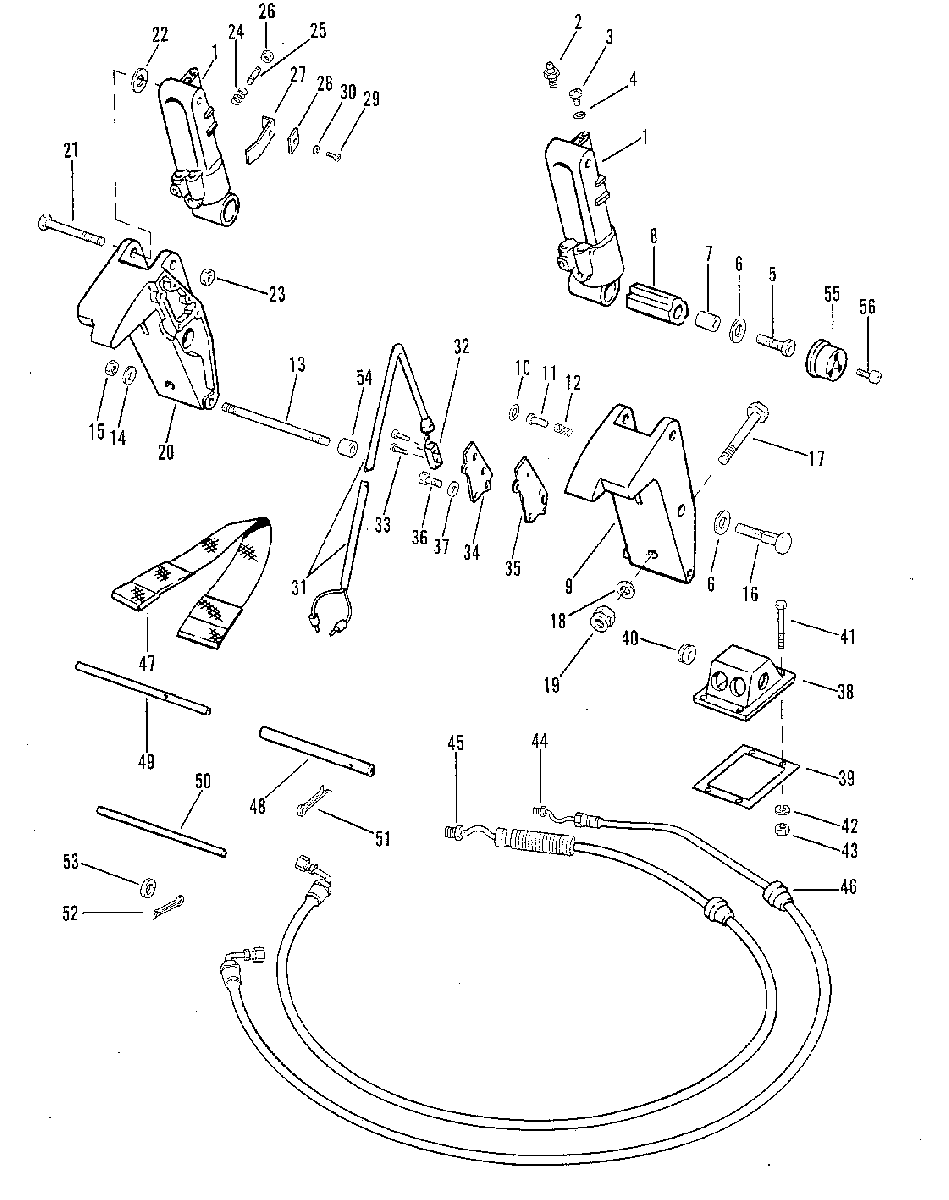

TRIM CYLINDERS AND HYDRAULIC HOSES для Mariner - 70 7177688 THRU 7208332
-
№АртикулНазвание
-
192194A20 TRIM CYLINDER ASS'Y (IDENTIFY BY CASTING #78439)TRIM CYLINDER ASS'Y (IDENTIFY BY CASTING #78439)
-
192194A20 TRIM CYLINDER ASS'Y (IDENTIFY BY NO CASTING #)TRIM CYLINDER ASS'Y (IDENTIFY BY NO CASTING #)
-
222-74036 GREASE FITTING, TRIM CYLINDERGREASE FITTING, TRIM CYLINDER
-
310-45265 SCREW, BLEEDSCREW, BLEED
-
425-45016 "O" RING, BLEED SCREW"O" RING, BLEED SCREW
-
510-45264 SCREW, TRIM CYLINDER (1-1/2") - WITH TAPPED HOLESCREW, TRIM CYLINDER (1-1/2") - WITH TAPPED HOLE
-
510-92050 SCREW, TRIM CYLINDER (1-1/2") - WITHOUT TAPPED HOLESCREW, TRIM CYLINDER (1-1/2") - WITHOUT TAPPED HOLE
-
612-28421 WASHER, TRIM CYLINDER BOLTWASHER, TRIM CYLINDER BOLT
-
723-45280 SPACER, TRIM CYLINDER - LOWERSPACER, TRIM CYLINDER - LOWER
-
823-94907A1 BUSHING, RUBBER - TRIM CYLINDERBUSHING, RUBBER - TRIM CYLINDER
-
989108A3 BRACKET, TRIM CYLINDER (PORT)BRACKET, TRIM CYLINDER (PORT)
-
1026-70608 OIL SEAL, PORT BRACKETOIL SEAL, PORT BRACKET
-
1189290 PLUNGER, LIMIT SWITCH ACTUATINGPLUNGER, LIMIT SWITCH ACTUATING
-
1224-95881 SPRING, TENSION - LIMIT SWITCH PLUNGERSPRING, TENSION - LIMIT SWITCH PLUNGER
-
1316-45282 STUD, MOUNTING BRACKETSTUD, MOUNTING BRACKET
-
1413-26993 LOCKWASHER, MOUNTING BRACKET STUDLOCKWASHER, MOUNTING BRACKET STUD
-
1511-28770 NUT, MOUNTING BRACKET STUDNUT, MOUNTING BRACKET STUD
-
1610-45263 SCREW, MOUNTING BRACKET (2-1/4")SCREW, MOUNTING BRACKET (2-1/4")
-
1710-68298 BOLT, MOUNTING BRACKET TO TRANSOM (3-1/4")BOLT, MOUNTING BRACKET TO TRANSOM (3-1/4")
-
1710-89673 BOLT, MOUNTING BRACKET TO TRANSOM (5")BOLT, MOUNTING BRACKET TO TRANSOM (5")
-
1812-46765 WASHER, MOUNTING BRACKET BOLTWASHER, MOUNTING BRACKET BOLT
-
1911-82670912 NUT, MOUNTING BRACKET BOLTNUT, MOUNTING BRACKET BOLT
-
2089111T BRACKET, TRIM CYLINDER (STARBOARD)BRACKET, TRIM CYLINDER (STARBOARD)
-
2110-45328 SCREW, TRIM CYLINDER TO MOUNTING BRACKET (3-9/16")SCREW, TRIM CYLINDER TO MOUNTING BRACKET (3-9/16")
-
2212-37807 WASHER, TRIM CYLINDER SCREW (STARBOARD ONLY)WASHER, TRIM CYLINDER SCREW (STARBOARD ONLY)
-
2311-20696 NUT, TRIM CYLINDER SCREWNUT, TRIM CYLINDER SCREW
-
2424-24390 SPRING, TENSION - ADJUSTING STUDSPRING, TENSION - ADJUSTING STUD
-
2516-8M0034461 STUD, ADJUSTING - CUT-OUT LIMIT SWITCHSTUD, ADJUSTING - CUT-OUT LIMIT SWITCH
-
2611-859124 NUT, JAM - LIMIT SWITCH ADJUSTING STUDNUT, JAM - LIMIT SWITCH ADJUSTING STUD
-
2799897 CAM, LIMIT SWITCH ADJUSTING STUDCAM, LIMIT SWITCH ADJUSTING STUD
-
2886967 PLATE, RETAINING - LIMIT SWITCH CAMPLATE, RETAINING - LIMIT SWITCH CAM
-
2910-68513 SCREW, RETAINING PLATE AND CAMSCREW, RETAINING PLATE AND CAM
-
3013-26996 LOCKWASHER, RETAINING PLATE AND CAM SCREWLOCKWASHER, RETAINING PLATE AND CAM SCREW
-
3145326A2 SWITCH ASSEMBLY, CUT-OUT LIMITSWITCH ASSEMBLY, CUT-OUT LIMIT
-
3223-45354 BUSHING, RUBBER - CUT-OUT LIMIT SWITCHBUSHING, RUBBER - CUT-OUT LIMIT SWITCH
-
3310-47255 SCREW, CUT-OUT LIMIT SWITCH (9/16")SCREW, CUT-OUT LIMIT SWITCH (9/16")
-
3489272 COVER, LIMIT SWITCHCOVER, LIMIT SWITCH
-
3527-892731 GASKET, LIMIT SWITCH COVERGASKET, LIMIT SWITCH COVER
-
3610-34994 SCREW, LIMIT SWITCH COVER (7/16")SCREW, LIMIT SWITCH COVER (7/16")
-
3712-38833 WASHER, LIMIT SWITCH COVER SCREWWASHER, LIMIT SWITCH COVER SCREW
-
3887774A1 COVER, INLET - TRANSOMCOVER, INLET - TRANSOM
-
3927-87775 GASKET, INLET COVERGASKET, INLET COVER
-
4025-45507 GROMMET, RUBBER - INLET COVERGROMMET, RUBBER - INLET COVER
-
4110-32866 SCREW, INLET COVER TO BOAT (2")SCREW, INLET COVER TO BOAT (2")
-
4213-26996 LOCKWASHER, INLET COVER SCREWLOCKWASHER, INLET COVER SCREW
-
4311-68219 NUT, INLET COVER SCREWNUT, INLET COVER SCREW
-
4432-88005 HOSE
TRIM - CYLINDER TO CONTROL VALVE (5') - 12/32" O.D.HOSE
TRIM - CYLINDER TO CONTROL VALVE (5') - 12/32" O.D. -
4532-88006 HOSE, LIFT - CYLINDER TO CONTROL VALVE (5') - 17/32" O.D. (#32-88006)HOSE, LIFT - CYLINDER TO CONTROL VALVE (5') - 17/32" O.D. (#32-88006)
-
4623-35977 GROMMET, RUBBER (3/8" I.D. - 1" LONG)GROMMET, RUBBER (3/8" I.D. - 1" LONG)
-
4623-35977 GROMMET, RUBBER (3/8" I.D. - 7/8" LONG)GROMMET, RUBBER (3/8" I.D. - 7/8" LONG)
-
4625-12602002 GROMMET, RUBBER (7/16" I.D. - 7/8" LONG)GROMMET, RUBBER (7/16" I.D. - 7/8" LONG)
-
4773519A1 TILT STOPTILT STOP
-
4869259 TUBE, MOUNTING - TILT STOPTUBE, MOUNTING - TILT STOP
-
4977669 PIN, MOUNTING TUBEPIN, MOUNTING TUBE
-
5063473 TUBE, CUSHIONTUBE, CUSHION
-
5118-36002 COTTER PIN, MOUNTING TUBE PINCOTTER PIN, MOUNTING TUBE PIN
-
5218-45882 COTTER PIN, TILT PIN RETAININGCOTTER PIN, TILT PIN RETAINING
-
5312-39304 WASHER, TILT PINWASHER, TILT PIN
-
5423-89112 BUSHING, MOUNTING BRACKETBUSHING, MOUNTING BRACKET
-
5570679 COVER, TRIM CYLINDER NOT USED ON LATE MODELSCOVER, TRIM CYLINDER NOT USED ON LATE MODELS
-
5610-37655 SCREW, TRIM CYLINDER COVER NOT USED ON LATE MODELSSCREW, TRIM CYLINDER COVER NOT USED ON LATE MODELS
