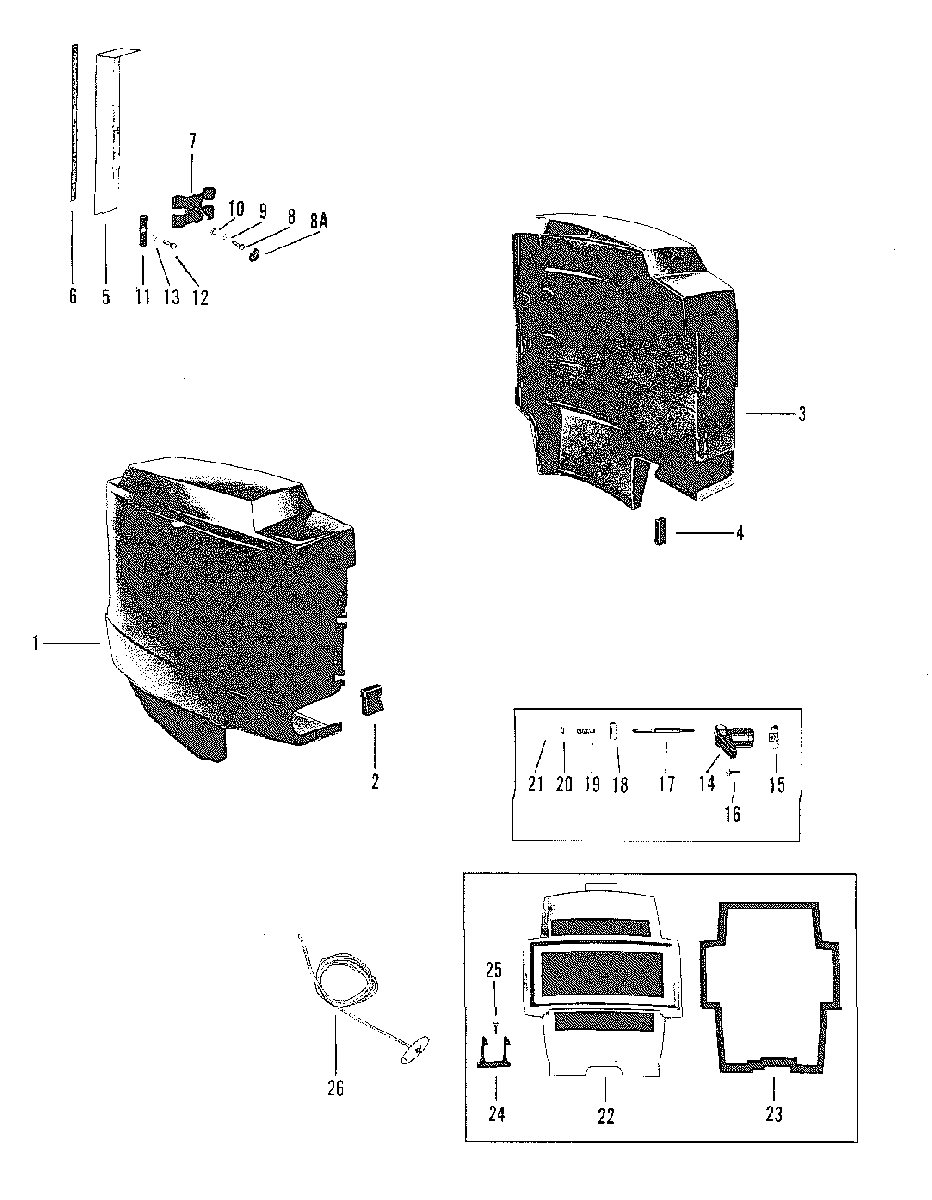

COWLING AND FRONT COVER для Mariner - 70 7177688 THRU 7208332

  • №
    Артикул
    Название
  • 1
    2142-6228A3 COWL ASSEMBLY, STARBOARD - WITHOUT DECALS
    COWL ASSEMBLY, STARBOARD - WITHOUT DECALS
  • 2
    26-60297 SEAL, FUEL CONNECTOR - COWL
    SEAL, FUEL CONNECTOR - COWL
  • 3
    2141-6227A17 COWL ASSEMBLY, PORT - WITHOUT DECALS
    COWL ASSEMBLY, PORT - WITHOUT DECALS
  • 4
    26-60298 SEAL, CONTROL CABLES - COWL
    SEAL, CONTROL CABLES - COWL
  • 5
    89717T BRACKET, COWL SEALING - REAR
    BRACKET, COWL SEALING - REAR
  • 6
    698761 SEAL, REAR BRACKET
    SEAL, REAR BRACKET
  • 7
    90980 BRACKET, COWL HINGE
    BRACKET, COWL HINGE
  • 8
    10-455611 SCREW, HING BRACKET - LOWER (1-1/8")
    SCREW, HING BRACKET - LOWER (1-1/8")
  • 8
    10-75794 SCREW, HINGE BRACKET - UPPER (1-1/8")
    SCREW, HINGE BRACKET - UPPER (1-1/8")
  • 8A
    75805 CAP, HINGE BRACKET SCREW (UPPER)
    CAP, HINGE BRACKET SCREW (UPPER)
  • 9
    13-26992 LOCKWASHER, HINGE BRACKET SCREW
    LOCKWASHER, HINGE BRACKET SCREW
  • 10
    12-37998 WASHER, HINGE BRACKET SCREW
    WASHER, HINGE BRACKET SCREW
  • 10
    12-75806 WASHER, HINGE BRACKET SCREW (UPPER)
    WASHER, HINGE BRACKET SCREW (UPPER)
  • 11
    90979 PIN, COWL HINGE
    PIN, COWL HINGE
  • 12
    10-28782 SCREW, PIN TO COWL (7/8")
    SCREW, PIN TO COWL (7/8")
  • 13
    13-26993 LOCKWASHER, PIN ATTACHING SCREW
    LOCKWASHER, PIN ATTACHING SCREW
  • 14
    46785A5 COWL LATCH ASSEMBLY
    COWL LATCH ASSEMBLY
  • 15
    62628 BARREL, COWL LATCH
    BARREL, COWL LATCH
  • 16
    10-31312 SCREW, LATCH ASSEMBLY TO BARREL (7/8")
    SCREW, LATCH ASSEMBLY TO BARREL (7/8")
  • 17
    15222 BAR, ADJUSTMENT - COWL LATCH
    BAR, ADJUSTMENT - COWL LATCH
  • 18
    62629 BARREL, COWL LATCH
    BARREL, COWL LATCH
  • 19
    24-62624 SPRING, TENSION - COWL LATCH
    SPRING, TENSION - COWL LATCH
  • 20
    12-30164 WASHER, ADJUSTMNET BAR TO BARREL
    WASHER, ADJUSTMNET BAR TO BARREL
  • 21
    11-859124 NUT, ADJUSTMENT BAR TO BARREL
    NUT, ADJUSTMENT BAR TO BARREL
  • 22
    2143-7254A12 FRONT COVER ASSEMBLY, WITHOUT DECALS
    FRONT COVER ASSEMBLY, WITHOUT DECALS
  • 23
    795511 BLANKET, SOUND ABSORBING
    BLANKET, SOUND ABSORBING
  • 24
    61158T HOOK, FRONT COVER
    HOOK, FRONT COVER
  • 25
    10-69570 SCREW, HOOK TO FRONT COVER (3/4")
    SCREW, HOOK TO FRONT COVER (3/4")
  • 26
    47341A11 STARTER ROPE (FOR MANUAL STARTING ONLY)
    STARTER ROPE (FOR MANUAL STARTING ONLY)
