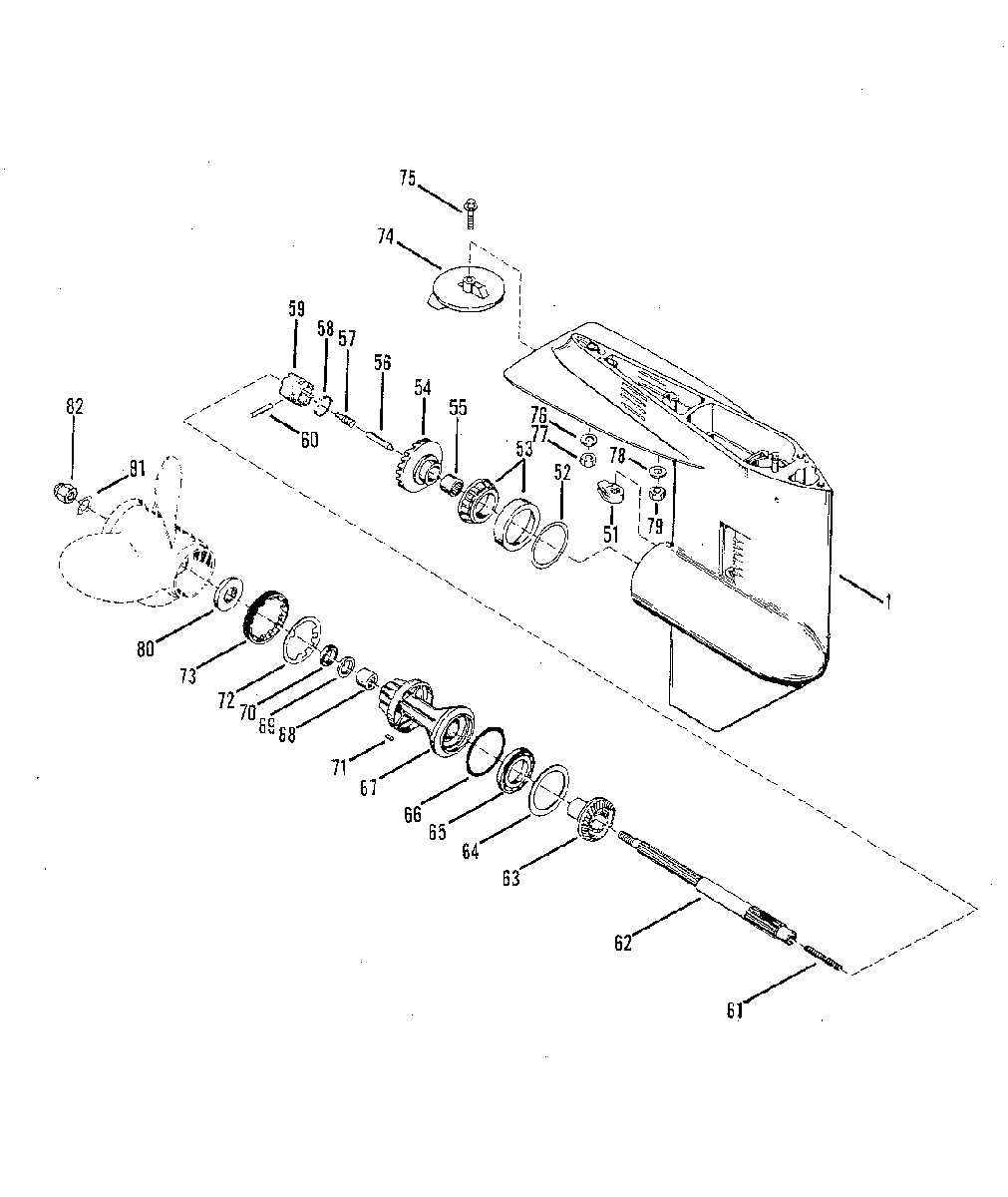

GEAR HOUSING (PROPELLER SHAFT) для Mariner - 70 7177688 THRU 7208332

  • №
    Артикул
    Название
  • -
    1643-9539A9 GEAR HOUSING ASSEMBLY - COMPLETE (LONG SHAFT)
    GEAR HOUSING ASSEMBLY - COMPLETE (LONG SHAFT)
  • 1
    1643-9539T1 GEAR HOUSING ASS'Y - SEE PAGE 34 FOR BREAKDOWN
    GEAR HOUSING ASS'Y - SEE PAGE 34 FOR BREAKDOWN
  • 51
    760394 SHIFT CAM
    SHIFT CAM
  • 52
    15-38374A1 SHIM, BEARING CUP (.002-3-5-10)
    SHIM, BEARING CUP (.002-3-5-10)
  • 53
    31-38356A1 TAPERED ROLLER BEARING ASSEMBLY
    TAPERED ROLLER BEARING ASSEMBLY
  • 54
    43-88018T1 FORWARD GEAR
    FORWARD GEAR
  • 55
    31-21739 ROLLER BEARING, FORWARD GEAR
    ROLLER BEARING, FORWARD GEAR
  • 56
    38441 CAM FOLLOWER
    CAM FOLLOWER
  • 57
    20843 SLIDE, CROSS PIN
    SLIDE, CROSS PIN
  • 58
    24-39845 SPRING, COMPRESSION - CAM FOLLOWER
    SPRING, COMPRESSION - CAM FOLLOWER
  • 59
    52-92911T RATCHET, SLIDING CLUTCH
    RATCHET, SLIDING CLUTCH
  • 60
    17-8M0020942 CROSS PIN, RATCHET TO PROPELLER SHAFT
    CROSS PIN, RATCHET TO PROPELLER SHAFT
  • 61
    24-38114 SPRING, RETAINING - CROSS PIN
    SPRING, RETAINING - CROSS PIN
  • 62
    44-75365 PROPELLER SHAFT
    PROPELLER SHAFT
  • 63
    43-88017T REVERSE GEAR
    REVERSE GEAR
  • 64
    12-32004 THRUST WASHER, REVERSE GEAR
    THRUST WASHER, REVERSE GEAR
  • 65
    30-20839T BALL BEARING, REVERSE GEAR
    BALL BEARING, REVERSE GEAR
  • 66
    25-31986 "O" RING, BEARING CARRIER
    "O" RING, BEARING CARRIER
  • 67
    69386T1 BEARING CARRIER ASSEMBLY
    BEARING CARRIER ASSEMBLY
  • 68
    31-21700 ROLLER BEARING, BEARING CARRIER
    ROLLER BEARING, BEARING CARRIER
  • 69
    26-69188 OIL SEAL, BEARING CARRIER
    OIL SEAL, BEARING CARRIER
  • 70
    26-69189 OIL SEAL, BEARING CARRIER
    OIL SEAL, BEARING CARRIER
  • 71
    28-30281 KEY, LOCATING, BEARING CARRIER
    KEY, LOCATING, BEARING CARRIER
  • 72
    14-53012 TAB WASHER, GEAR HOUSING NUT
    TAB WASHER, GEAR HOUSING NUT
  • 73
    11-87763 NUT, GEAR HOUSING
    NUT, GEAR HOUSING
  • 74
    97-31640Q4 TRIM TAB ASSEMBLY, GEAR HOUSING
    TRIM TAB ASSEMBLY, GEAR HOUSING
  • 75
    10-66024 SCREW, TRIM TAB TO GEAR HOUSING
    SCREW, TRIM TAB TO GEAR HOUSING
  • 76
    12-856774 WASHER, DRIVE SHAFT HOUSING STUD (3/8")
    WASHER, DRIVE SHAFT HOUSING STUD (3/8")
  • 77
    11-8M0042636 NUT, DRIVE SHAFT HOUSING STUD (3/8")
    NUT, DRIVE SHAFT HOUSING STUD (3/8")
  • 78
    12-65791 WASHER, DRIVE SHAFT HOUSING STUD (7/16")
    WASHER, DRIVE SHAFT HOUSING STUD (7/16")
  • 79
    11-34933 NUT, DRIVE SHAFT HOUSING STUD (7/16")
    NUT, DRIVE SHAFT HOUSING STUD (7/16")
  • 80
    73345A1 THRUST HUB, FRONT
    THRUST HUB, FRONT
  • 81
    14-76281 TAB WASHER, PROPELLER
    TAB WASHER, PROPELLER
  • 82
    11-69578Q1 PROPELLER NUT
    PROPELLER NUT
