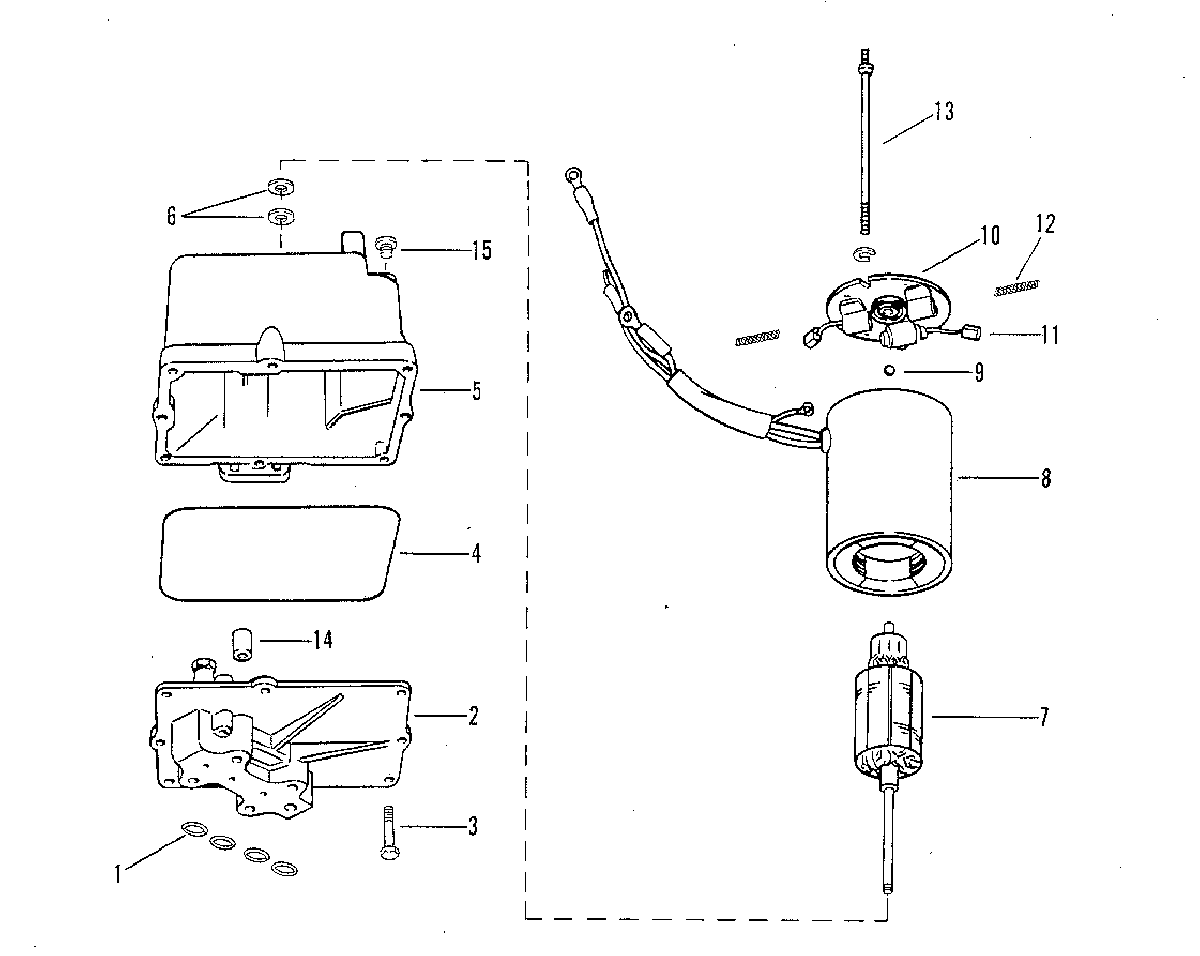

HYDRAULIC PUMP ASSEMBLY (PLASTIC RESERVOIR) для Mariner - 70 7177688 THRU 7208332

  • №
    Артикул
    Название
  • -
    92975A32 HYDRAULIC PUMP ASSEMBLY
    HYDRAULIC PUMP ASSEMBLY
  • 1
    25-48171 "O" RING, HYDRAULIC PUMP
    "O" RING, HYDRAULIC PUMP
  • 2
    92975A32 VALVE BODY AND GEAR ASSEMBLY
    VALVE BODY AND GEAR ASSEMBLY
  • 3
    10-69570 SCREW, VALVE BODY TO RESERVOIR
    SCREW, VALVE BODY TO RESERVOIR
  • 4
    392-7735 SEAL, RESERVOIR TO VALVE BODY AND GEAR
    SEAL, RESERVOIR TO VALVE BODY AND GEAR
  • 5
    392-7731 RESERVOIR ASSEMBLY (PLASTIC)
    RESERVOIR ASSEMBLY (PLASTIC)
  • 6
    392-7732 WASHER, THRUST - ARMATURE
    WASHER, THRUST - ARMATURE
  • 7
    392-7729 ARMATURE, FIELD AND FRAME
    ARMATURE, FIELD AND FRAME
  • 8
    392-8261 FIELD AND FRAME ASSEMBLY
    FIELD AND FRAME ASSEMBLY
  • 9
    392-7730 BALL, COMMUTATOR END PLATE
    BALL, COMMUTATOR END PLATE
  • 10
    392-8262 PLATE ASSEMBLY, COMMUTATOR END
    PLATE ASSEMBLY, COMMUTATOR END
  • 11
    392-8989 BRUSH SET, COMMUTATOR END PLATE
    BRUSH SET, COMMUTATOR END PLATE
  • 12
    392-2529 SPRING SET, BRUSH TENSION
    SPRING SET, BRUSH TENSION
  • 13
    392-7733 BOLT SET, THRU - PLATE AND FRAME TO RESERVOIR
    BOLT SET, THRU - PLATE AND FRAME TO RESERVOIR
  • 14
    392-7727 COUPLER AND SHAFT
    COUPLER AND SHAFT
  • 15
    392-7728 FILL PLUG, RESERVOIR
    FILL PLUG, RESERVOIR
