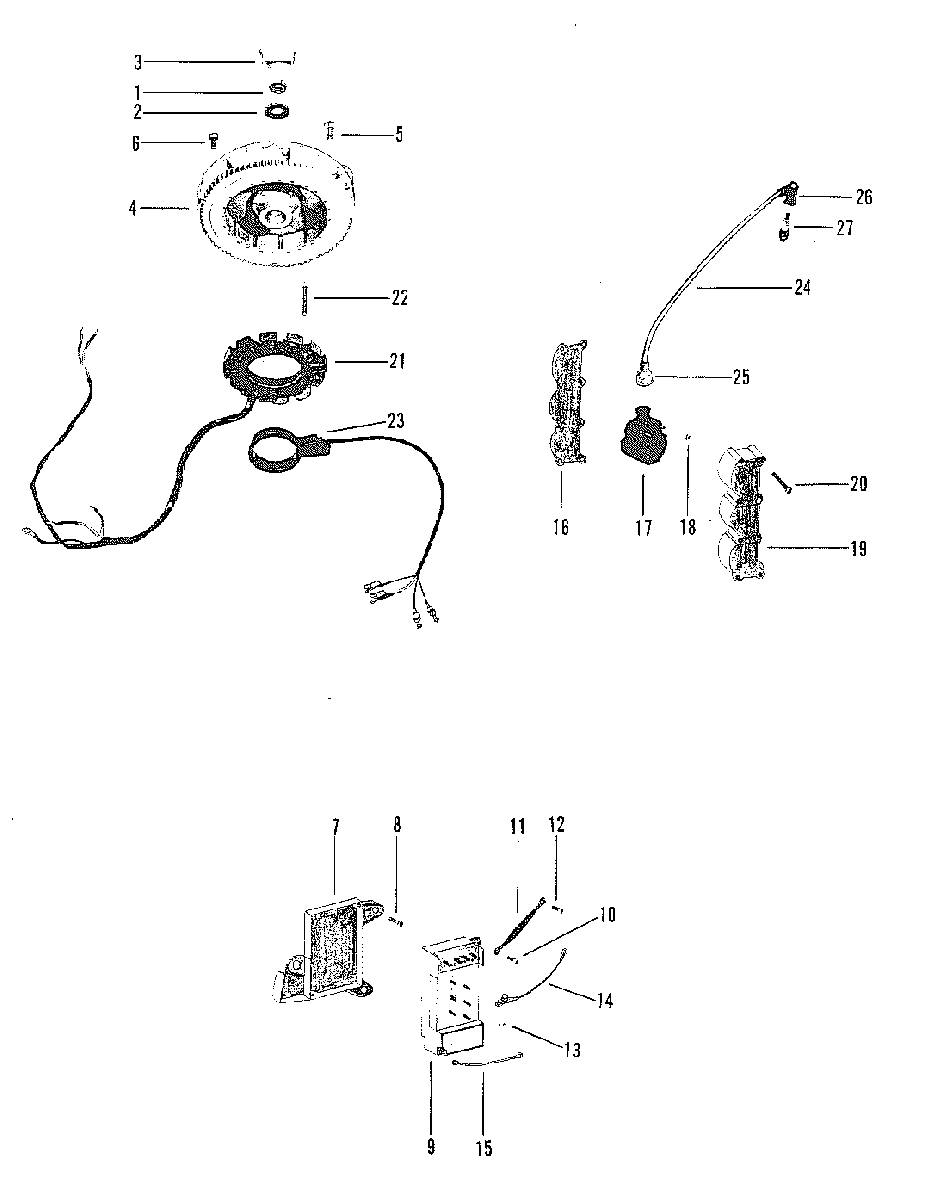

FLYWHEEL, SWITCH BOX, IGNITION COIL, STATOR для Mariner - 70 7177688 THRU 7208332
-
№АртикулНазвание
-
111-52901 NUT, FLYWHEELNUT, FLYWHEEL
-
212-33001 WASHER, FLYWHEEL NUTWASHER, FLYWHEEL NUT
-
319-45907 PLUG, FLYWHEEL PULLER THREADSPLUG, FLYWHEEL PULLER THREADS
-
4248-8722A5 FLYWHEEL ASSEMBLY
UNITED STATES 6322885 AND BELOWFLYWHEEL ASSEMBLY
UNITED STATES 6322885 AND BELOW -
4248-8722A5 FLYWHEEL ASSEMBLY
UNITED STATES 6322886 AND UPFLYWHEEL ASSEMBLY
UNITED STATES 6322886 AND UP -
510-68997 SCREW, PLATE/HUB (3/4")SCREW, PLATE/HUB (3/4")
-
610-32417 SCREW, FLEXIBLE PLATE TO FLYWHEEL (5/8")SCREW, FLEXIBLE PLATE TO FLYWHEEL (5/8")
-
7889351 PLATE, SWITCH BOXPLATE, SWITCH BOX
-
810-824941 SCREW, SWITCH BOX PLATE (3/4")SCREW, SWITCH BOX PLATE (3/4")
-
9332-7778A12 SWITCH BOX ASSEMLBYSWITCH BOX ASSEMLBY
-
1010-20619 SCREW, SWITCH BOX TO PLATE (1-1/8")SCREW, SWITCH BOX TO PLATE (1-1/8")
-
1184-60466A8 WIRE ASSEMBLY, SWITCH BOX SCREWWIRE ASSEMBLY, SWITCH BOX SCREW
-
1210-62568 SCREW, WIRE ATTACHINGSCREW, WIRE ATTACHING
-
1311-45076 NUT, SWITCH BOX TERMINALNUT, SWITCH BOX TERMINAL
-
1484-60443A3 WIRE ASSEMBLY, SWITCH BOX TO COIL (GREEN)WIRE ASSEMBLY, SWITCH BOX TO COIL (GREEN)
-
1484-62822A1 WIRE ASSEMBLY, SWITCH BOX TO COIL (GREEN/WHITE)WIRE ASSEMBLY, SWITCH BOX TO COIL (GREEN/WHITE)
-
1484-68896A4 WIRE ASSEMBLY, SWITCH BOX TO COIL (GREEN/RED)WIRE ASSEMBLY, SWITCH BOX TO COIL (GREEN/RED)
-
1584-60466A1 WIRE ASSEMBLY, SWITCH BOX TO COIL (BLACK)WIRE ASSEMBLY, SWITCH BOX TO COIL (BLACK)
-
1673439 PLATE, MOUNTING - IGNITION COILPLATE, MOUNTING - IGNITION COIL
-
17339-832757A4 IGNITION COIL ASSEMBLYIGNITION COIL ASSEMBLY
-
1811-45076 NUT, IGNITION COIL TERMINALNUT, IGNITION COIL TERMINAL
-
1943542 COVER, IGNITION COILCOVER, IGNITION COIL
-
2010-92399 SCREW, COVER TO MOUNTING PLAT (2-1/4")SCREW, COVER TO MOUNTING PLAT (2-1/4")
-
21398-5704A7 STATOR ASSEMBLYSTATOR ASSEMBLY
-
2210-63136 SCREW, STATOR TO UPPER END CAP (7/8")SCREW, STATOR TO UPPER END CAP (7/8")
-
2396455A8 TRIGGER PLATE ASSEMBLYTRIGGER PLATE ASSEMBLY
-
2484-813715A1 WIRE ASSEMBLY, SPARK PLUGWIRE ASSEMBLY, SPARK PLUG
-
25332-2854T01 BOOT, IGNITION COIL ENDBOOT, IGNITION COIL END
-
2685-63709A1 PROTECTOR ASSEMBLYPROTECTOR ASSEMBLY
-
2733-97180Q SPARK PLUG (AC#40FFM)SPARK PLUG (AC#40FFM)
-
2733-14103550 SPARK PLUG (CHAMPION#QL-76V)/CANADA AND BELGIUMSPARK PLUG (CHAMPION#QL-76V)/CANADA AND BELGIUM
Все узлы модели:
- CARBURETOR ASSEMBLY
- CARBURETOR LINKAGE AND CHOKE SOLENOID
- CLAMP BRACKET ASSEMBLY
- COWL SUPPORT BRACKETS
- COWLING AND FRONT COVER
- CRANKSHAFT, PISTONS AND CONNECTING RODS
- CYLINDER BLOCK AND CRANKCASE ASSEMBLY
- DRIVE SHAFT HOUSING ASSEMBLY
- EXHAUST AND MANIFOLD COVERS
- • FLYWHEEL, SWITCH BOX, IGNITION COIL, STATOR
- FUEL PUMP, FUEL FILTER AND FUEL LINES
- GEAR HOUSING (DRIVE SHAFT)
- GEAR HOUSING (PROPELLER SHAFT)
- HYDRAULIC PUMP ASSEMBLY (METAL RESERVOIR)
- HYDRAULIC PUMP ASSEMBLY (PLASTIC RESERVOIR)
- MISCELLANEOUS PARTS/ACCESSORIES
- POWER TRIM COMPONENTS
- POWER TRIM COMPONENTS
- POWER TRIM CYLINDER REPAIR KITS (76509A23 TRIM CYLINDER)
- POWER TRIM CYLINDER REPAIR KITS (92194A20 TRIM CYLINDER)
- SHIFT LINKAGE AND EXHAUST PLATE
- STARTER MOTOR ASSEMBLY (BOSCH)
- STARTER MOTOR ASSEMBLY (PRESTOLITE)
- STARTER MOTOR, STARTER SOLENOID, RECTIFIER
- SWIVEL BRACKET AND REVERSE LOCK
- THROTTLE CONTROL LINKAGE AND SPARK ADVANCE
- TRIM CYLINDERS AND HYDRAULIC HOSES
