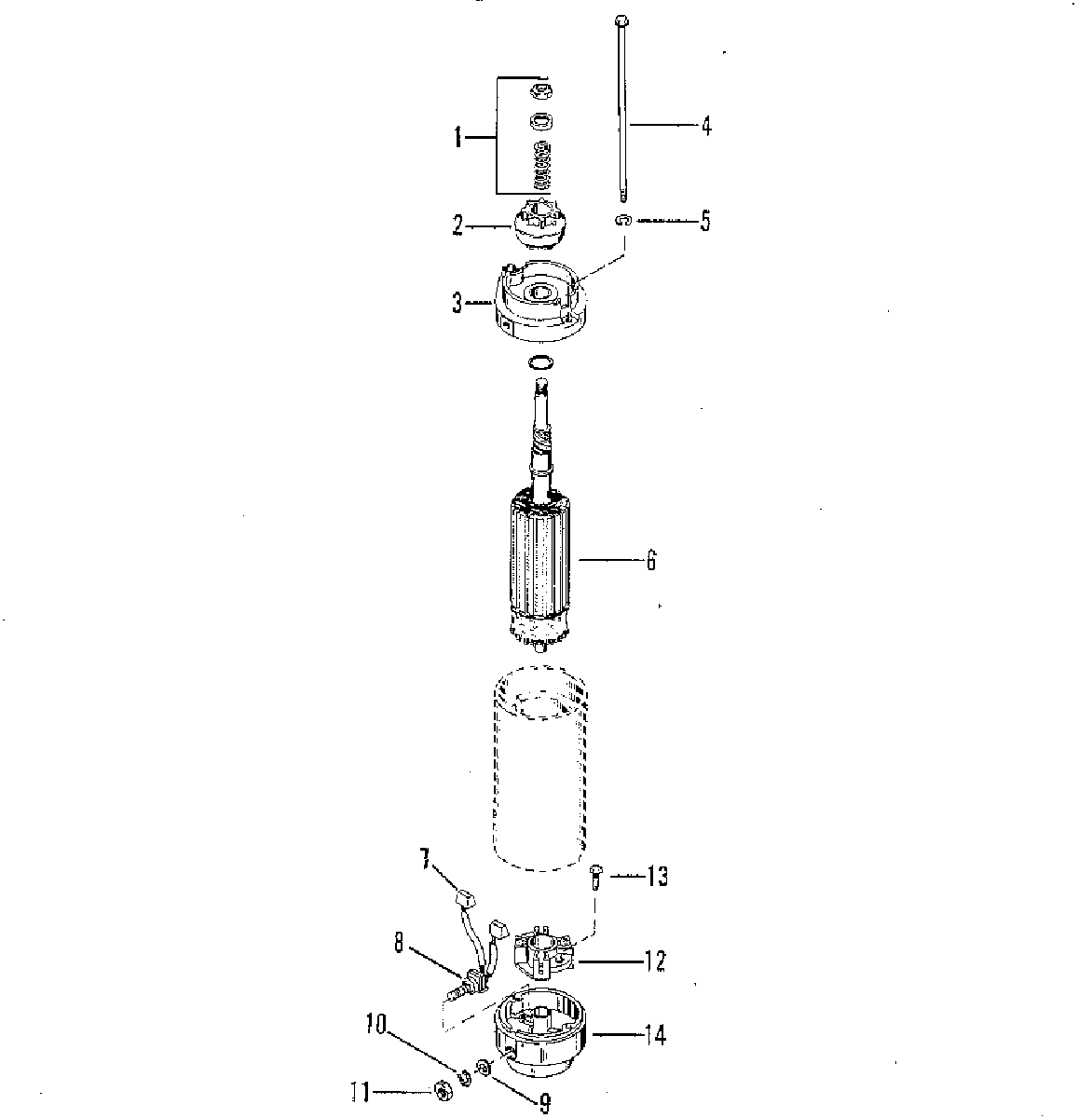

STARTER MOTOR ASSEMBLY (BOSCH) для Mariner - 70 7177688 THRU 7208332
-
№АртикулНазвание
-
-50-44369A1 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
190643 DRIVE KITDRIVE KIT
-
2685753 DRIVE ASSEMBLYDRIVE ASSEMBLY
-
3N.S.S. PLATE, DRIVE ENDPLATE, DRIVE END
-
410-68576 BOLT, THRU - PLATE TO END CAPBOLT, THRU - PLATE TO END CAP
-
513-61789 LOCKWASHER, THRU BOLTLOCKWASHER, THRU BOLT
-
668578 ARMATUREARMATURE
-
7898265016 BRUSH SETBRUSH SET
-
823-57387 BUSHING, INSULATING - INPUT STUDBUSHING, INSULATING - INPUT STUD
-
912-38013 WASHER, INPUT STUDWASHER, INPUT STUD
-
1013-26992 LOCKWASHER, INPUT STUDLOCKWASHER, INPUT STUD
-
1111-20890 NUT, INPUT STUDNUT, INPUT STUD
-
12898265014 HOLDER, BRUSHHOLDER, BRUSH
-
1310-68586 SCREW, BRUSH AND HOLDER TO CAPSCREW, BRUSH AND HOLDER TO CAP
-
1415386001 END CAP, COMMUTATOREND CAP, COMMUTATOR
Все узлы модели:
- CARBURETOR ASSEMBLY
- CARBURETOR LINKAGE AND CHOKE SOLENOID
- CLAMP BRACKET ASSEMBLY
- COWL SUPPORT BRACKETS
- COWLING AND FRONT COVER
- CRANKSHAFT, PISTONS AND CONNECTING RODS
- CYLINDER BLOCK AND CRANKCASE ASSEMBLY
- DRIVE SHAFT HOUSING ASSEMBLY
- EXHAUST AND MANIFOLD COVERS
- FLYWHEEL, SWITCH BOX, IGNITION COIL, STATOR
- FUEL PUMP, FUEL FILTER AND FUEL LINES
- GEAR HOUSING (DRIVE SHAFT)
- GEAR HOUSING (PROPELLER SHAFT)
- HYDRAULIC PUMP ASSEMBLY (METAL RESERVOIR)
- HYDRAULIC PUMP ASSEMBLY (PLASTIC RESERVOIR)
- MISCELLANEOUS PARTS/ACCESSORIES
- POWER TRIM COMPONENTS
- POWER TRIM COMPONENTS
- POWER TRIM CYLINDER REPAIR KITS (76509A23 TRIM CYLINDER)
- POWER TRIM CYLINDER REPAIR KITS (92194A20 TRIM CYLINDER)
- SHIFT LINKAGE AND EXHAUST PLATE
- • STARTER MOTOR ASSEMBLY (BOSCH)
- STARTER MOTOR ASSEMBLY (PRESTOLITE)
- STARTER MOTOR, STARTER SOLENOID, RECTIFIER
- SWIVEL BRACKET AND REVERSE LOCK
- THROTTLE CONTROL LINKAGE AND SPARK ADVANCE
- TRIM CYLINDERS AND HYDRAULIC HOSES
