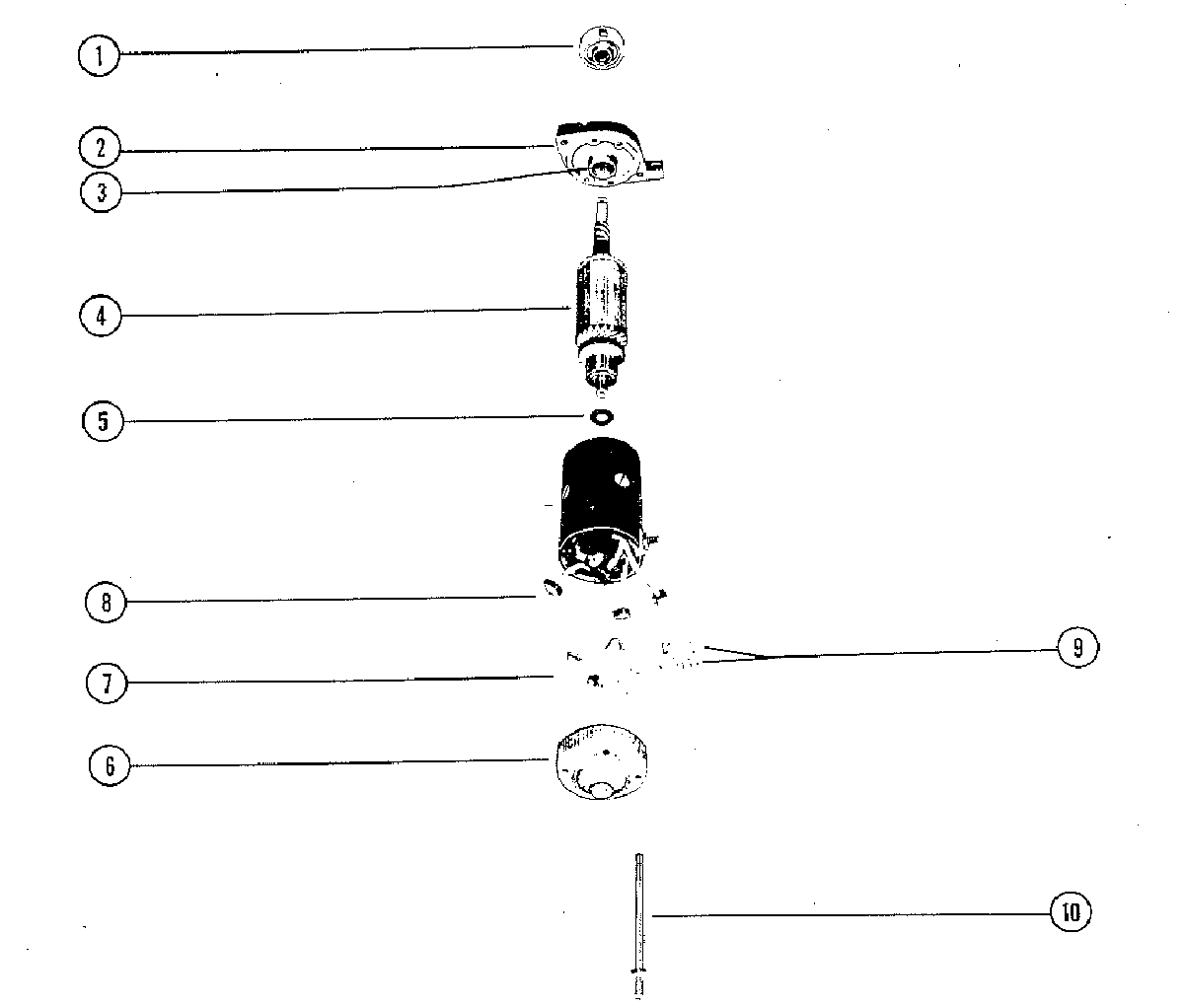

STARTER MOTOR ASSEMBLY (PRESTOLITE) для Mariner - 70 7177688 THRU 7208332
-
№АртикулНазвание
-
1392-8848 MOTOR DRIVEMOTOR DRIVE
-
2392-8852 PLATE ASSEMBLY, DRIVE ENDPLATE ASSEMBLY, DRIVE END
-
3392-8853 BUSHING, DRIVE END PLATEBUSHING, DRIVE END PLATE
-
4392-8847 ARMATUREARMATURE
-
5392-8856 PACKAGE, ARMATURE THRUST WASHERPACKAGE, ARMATURE THRUST WASHER
-
6392-8849 END CAP ASSEMBLY, COMMUTATOREND CAP ASSEMBLY, COMMUTATOR
-
7392-8850 BRUSH PLATE AND HOLDER ASSEMBLYBRUSH PLATE AND HOLDER ASSEMBLY
-
8392-8851 BRUSH AND TERMINAL SETBRUSH AND TERMINAL SET
-
9392-8854 SPRING SET, BRUSH (2 SPRINGS PER SET)SPRING SET, BRUSH (2 SPRINGS PER SET)
-
10392-8855 BOLT, THRU - END CAP TO END PLATE (1/4-28)BOLT, THRU - END CAP TO END PLATE (1/4-28)
Все узлы модели:
- CARBURETOR ASSEMBLY
- CARBURETOR LINKAGE AND CHOKE SOLENOID
- CLAMP BRACKET ASSEMBLY
- COWL SUPPORT BRACKETS
- COWLING AND FRONT COVER
- CRANKSHAFT, PISTONS AND CONNECTING RODS
- CYLINDER BLOCK AND CRANKCASE ASSEMBLY
- DRIVE SHAFT HOUSING ASSEMBLY
- EXHAUST AND MANIFOLD COVERS
- FLYWHEEL, SWITCH BOX, IGNITION COIL, STATOR
- FUEL PUMP, FUEL FILTER AND FUEL LINES
- GEAR HOUSING (DRIVE SHAFT)
- GEAR HOUSING (PROPELLER SHAFT)
- HYDRAULIC PUMP ASSEMBLY (METAL RESERVOIR)
- HYDRAULIC PUMP ASSEMBLY (PLASTIC RESERVOIR)
- MISCELLANEOUS PARTS/ACCESSORIES
- POWER TRIM COMPONENTS
- POWER TRIM COMPONENTS
- POWER TRIM CYLINDER REPAIR KITS (76509A23 TRIM CYLINDER)
- POWER TRIM CYLINDER REPAIR KITS (92194A20 TRIM CYLINDER)
- SHIFT LINKAGE AND EXHAUST PLATE
- STARTER MOTOR ASSEMBLY (BOSCH)
- • STARTER MOTOR ASSEMBLY (PRESTOLITE)
- STARTER MOTOR, STARTER SOLENOID, RECTIFIER
- SWIVEL BRACKET AND REVERSE LOCK
- THROTTLE CONTROL LINKAGE AND SPARK ADVANCE
- TRIM CYLINDERS AND HYDRAULIC HOSES
