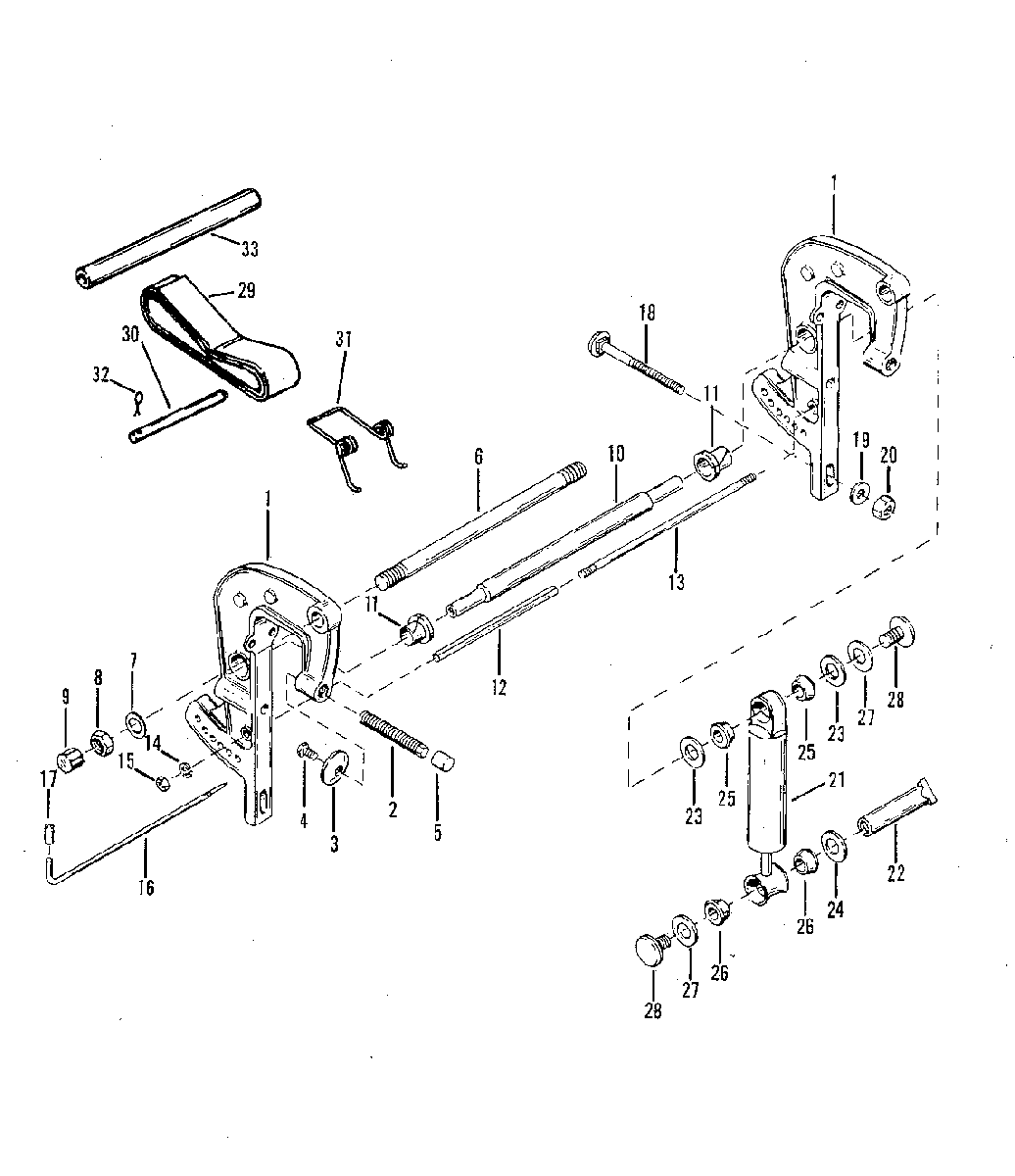

CLAMP BRACKET ASSEMBLY для Mariner - 70 7177688 THRU 7208332

  • №
    Артикул
    Название
  • 1
    1440-8394A3 CLAMP BRACKET ASSEMBLY
    CLAMP BRACKET ASSEMBLY
  • 2
    10-78492A1 THUMB SCREW ASSEMBLY
    THUMB SCREW ASSEMBLY
  • 3
    12-78493 WASHER, THUMB SCREW
    WASHER, THUMB SCREW
  • 4
    10-78495 SCREW, WASHER TO THUMB SCREW
    SCREW, WASHER TO THUMB SCREW
  • 5
    75043 CAP, THUMB SCREW (ELECTRIC)
    CAP, THUMB SCREW (ELECTRIC)
  • 6
    8M0041936 TILT TUBE
    TILT TUBE
  • 7
    12-52864 WASHER, TILT TUBE
    WASHER, TILT TUBE
  • 8
    11-858869 NUT, TILT TUBE
    NUT, TILT TUBE
  • 9
    53078 CAP, PLASTIC - TILT TUBE
    CAP, PLASTIC - TILT TUBE
  • 10
    55-28416 PIN, UPPER SHOCK (WITH SHOCK ABSORBER)
    PIN, UPPER SHOCK (WITH SHOCK ABSORBER)
  • 11
    23-73203 BUSHING, CLAMP BRACKET
    BUSHING, CLAMP BRACKET
  • 12
    23-59623 SPACER, CLAMP BRACKET STUD
    SPACER, CLAMP BRACKET STUD
  • 13
    16-59625 STUD, CLAMP BRACKET
    STUD, CLAMP BRACKET
  • 14
    13-26993 LOCKWASHER, CLAMP BRACKET STUD
    LOCKWASHER, CLAMP BRACKET STUD
  • 15
    11-28770 NUT, CLAMP BRACKET STUD
    NUT, CLAMP BRACKET STUD
  • 16
    17-8M0026068 TILT LOCK PIN ASSEMBLY
    TILT LOCK PIN ASSEMBLY
  • 17
    32-28052 SLEEVE, RUBBER - TILT LOCK PIN
    SLEEVE, RUBBER - TILT LOCK PIN
  • 18
    10-68298 BOLT, CLAMP BRACKET TO TRANSOM (3/1/4")
    BOLT, CLAMP BRACKET TO TRANSOM (3/1/4")
  • 19
    12-46765 WASHER, CLAMP BRACKET BOLT
    WASHER, CLAMP BRACKET BOLT
  • 18
    10-89673 BOLT, CLAMP BRACKET TO TRANSOM (5")
    BOLT, CLAMP BRACKET TO TRANSOM (5")
  • 19
    12-28420 WASHER, CLAMP BRACKET BOLT
    WASHER, CLAMP BRACKET BOLT
  • 19
    12-68300 WASHER, CLAMP BRACKET BOLT
    WASHER, CLAMP BRACKET BOLT
  • 20
    11-82671112 NUT, CLAMP BRACKET BOLT
    NUT, CLAMP BRACKET BOLT
  • 21
    55-58780A4 SHOCK ABSORBER WITH SHOCK ABSORBER
    SHOCK ABSORBER WITH SHOCK ABSORBER
  • 22
    55-696531 PIN, LOWER SHOCK WITH SHOCK ABSORBER
    PIN, LOWER SHOCK WITH SHOCK ABSORBER
  • 23
    12-28196 WASHER, UPPER BUSHING RETAINER (INNER)
    WITH SHOCK ABSORBER
    WASHER, UPPER BUSHING RETAINER (INNER)
    WITH SHOCK ABSORBER
  • 24
    12-59378 WASHER, LOWER BUSHING RETAINER (INNER)
    WITH SHOCK ABSORBER
    WASHER, LOWER BUSHING RETAINER (INNER)
    WITH SHOCK ABSORBER
  • 25
    23-32171 BUSHING, RUBBER - SHOCK ABSORBER (UPPER)
    WITH SHOCK ABSORBER
    BUSHING, RUBBER - SHOCK ABSORBER (UPPER)
    WITH SHOCK ABSORBER
  • 26
    23-28198 BUSHING, RUBBER - SHOCK ABSORBER (LOWER)
    WITH SHOCK ABSORBER
    BUSHING, RUBBER - SHOCK ABSORBER (LOWER)
    WITH SHOCK ABSORBER
  • 27
    12-69374 WASHER, UPPER AND LOWER BUSHING (OUTER)
    WITH SHOCK ABSORBER
    WASHER, UPPER AND LOWER BUSHING (OUTER)
    WITH SHOCK ABSORBER
  • 28
    10-69375A1 SCREW, UPPER AND LOWER SHOCK PIN (5/8")
    SCREW, UPPER AND LOWER SHOCK PIN (5/8")
  • 29
    98876 STRAP, TILT STOP WITHOUT SHOCK ABSORBER
    STRAP, TILT STOP WITHOUT SHOCK ABSORBER
  • 30
    98878 PIN, LOWER MOUNT - WITH SHOCK ABSORBER
    PIN, LOWER MOUNT - WITH SHOCK ABSORBER
  • 31
    24-98875 SPRING - WITH SHOCK ABSORBER
    SPRING - WITH SHOCK ABSORBER
  • 32
    18-328571 COTTER PIN - WITH SHOCK ABSORBER
    COTTER PIN - WITH SHOCK ABSORBER
  • 33
    98877 PIN, UPPER MOUNT - WITH SHOCK ABSORBER
    PIN, UPPER MOUNT - WITH SHOCK ABSORBER
