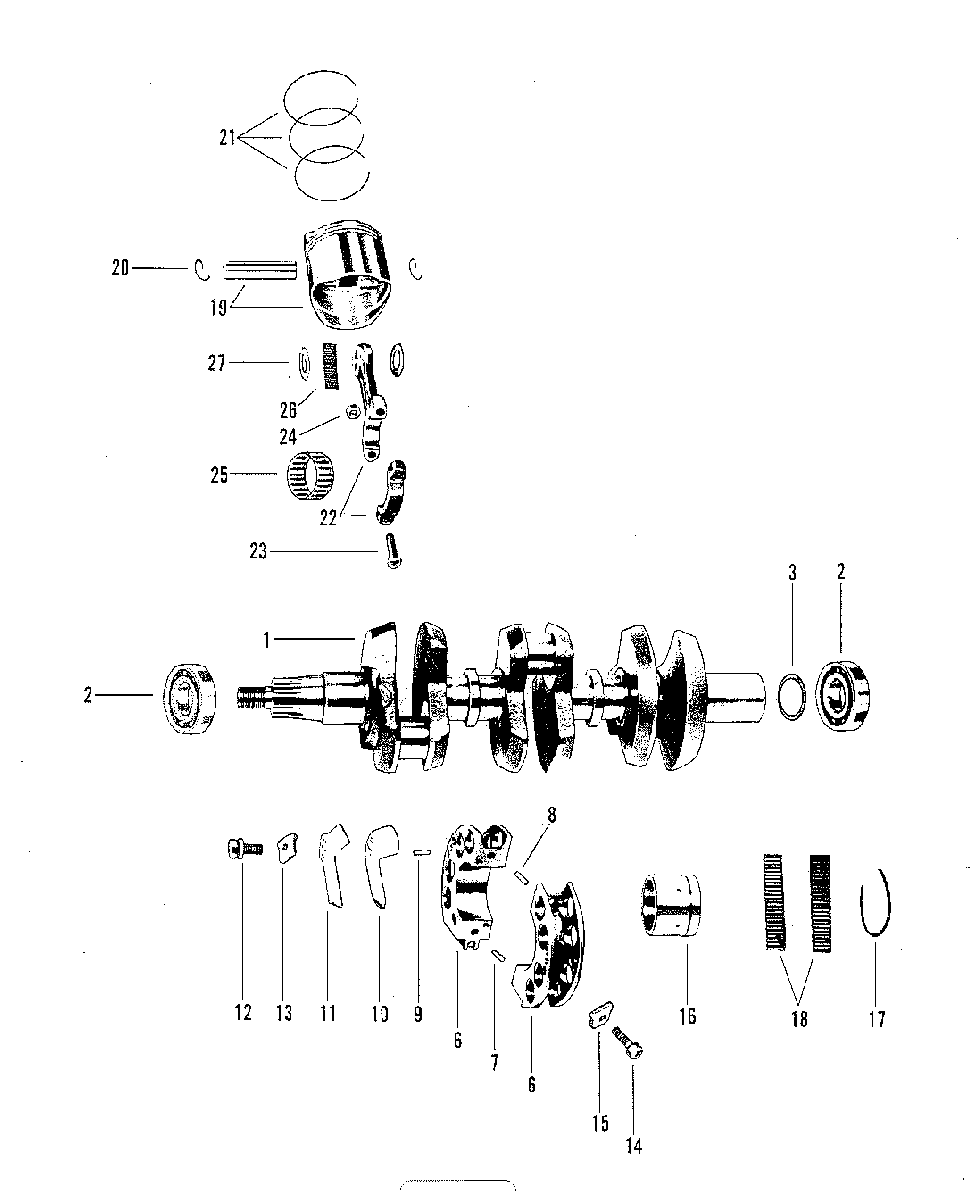

CRANKSHAFT, PISTONS AND CONNECTING RODS для Mariner - 70 7177688 THRU 7208332
-
№АртикулНазвание
-
1462-8839A2 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
230-64424T BEARING, BALL - LOWER AND UPPERBEARING, BALL - LOWER AND UPPER
-
315-22369A1 SHIM, LOWER BEARING TO CRANKSHAFTSHIM, LOWER BEARING TO CRANKSHAFT
-
6542-7509A3 MAIN BEARING ASSEMBLY (VALVE TYPE)MAIN BEARING ASSEMBLY (VALVE TYPE)
-
717-20032 DOWEL PIN, MAIN BEARINGDOWEL PIN, MAIN BEARING
-
817-60282 DOWEL PIN, (STEPPED)DOWEL PIN, (STEPPED)
-
917-65855 DOWEL PIN, REED STOPDOWEL PIN, REED STOP
-
1034-66051A1 REED SET, MATCHED - MAIN BEARINGREED SET, MATCHED - MAIN BEARING
-
1134-65946 REED STOPREED STOP
-
1210-77280 SCREW, REED STOP MOUNTING (9/16")SCREW, REED STOP MOUNTING (9/16")
-
1311-20110 NUT, REED STOP MOUNTING SCREWNUT, REED STOP MOUNTING SCREW
-
1410-45775 SCREW, MAIN BEARING CLAMPING (9/16")SCREW, MAIN BEARING CLAMPING (9/16")
-
1511-45774 NUT, MAIN BEARING SCREW CLAMPINGNUT, MAIN BEARING SCREW CLAMPING
-
1626113T RACE, OUTER (PAIR)RACE, OUTER (PAIR)
-
1753-26933 RING, SNAP - OUTER RACE CLAMPINGRING, SNAP - OUTER RACE CLAMPING
-
1829-714221 BEARING NEEDLEBEARING NEEDLE
-
19774-9137A12 PISTON AND PISTON PIN ASSEMBLY (STANDARD)PISTON AND PISTON PIN ASSEMBLY (STANDARD)
-
19774-9137A13 PISTON AND PISTON PIN ASSEMBLY (.015 O.S.)PISTON AND PISTON PIN ASSEMBLY (.015 O.S.)
-
19774-9137A14 PISTON AND PISTON PIN ASSEMBLY (.030 O.S.)PISTON AND PISTON PIN ASSEMBLY (.030 O.S.)
-
2053-857196 LOCK RING, PISTON PINLOCK RING, PISTON PIN
-
2139-78816A12 RING, PISTON (STANDARD)RING, PISTON (STANDARD)
-
2139-78811A12 RING PISTON (.015 O.S.)RING PISTON (.015 O.S.)
-
2139-88392A12 RING PISTON (.030 O.S.)RING PISTON (.030 O.S.)
-
22624-8101A3 CONNECTING ROD AND CAP ASSEMBLYCONNECTING ROD AND CAP ASSEMBLY
-
2310-54803 SCREW, CAP TO CONNECTING ROD W/NUTSCREW, CAP TO CONNECTING ROD W/NUT
-
2411-49091 NUT, CONNECTING ROD SCREW W/NUTNUT, CONNECTING ROD SCREW W/NUT
-
2310-91012 SCREW, CAP TO CONNECTING ROD - W/O NUTSCREW, CAP TO CONNECTING ROD - W/O NUT
-
2531-62596A1 BEARING ASSEMBLYBEARING ASSEMBLY
-
2629-47270 BEARING, NEEDLE - PISTON PINBEARING, NEEDLE - PISTON PIN
-
2712-8M0032839 WASHER, NEEDLE LOCATINGWASHER, NEEDLE LOCATING
