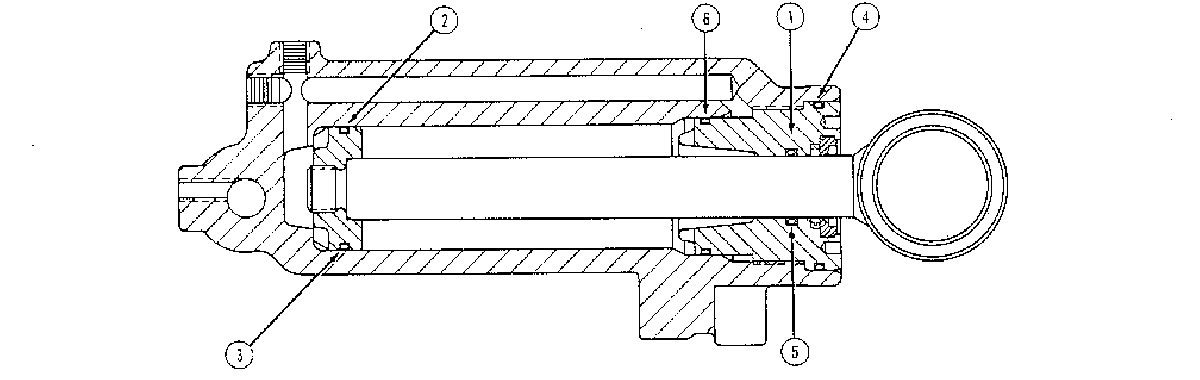

POWER TRIM CYLINDER REPAIR KITS (92194A20 TRIM CYLINDER) для Mariner - 70 7177688 THRU 7208332
-
№АртикулНазвание
-
-92188A2 REPAIR KIT (SEE NOTE BELOW)REPAIR KIT (SEE NOTE BELOW)
-
1N.S.S. CYLINDER CAPCYLINDER CAP
-
2N.S.S. "O" RING (1-1/4" X 1-1/2" X 1/8")"O" RING (1-1/4" X 1-1/2" X 1/8")
-
3N.S.S. SPACERSPACER
-
4N.S.S. "O" RING (1-7/8" X 2-1/16" X 3/32")"O" RING (1-7/8" X 2-1/16" X 3/32")
-
5N.S.S. "O" RING (3/4" X 15/16" X 3/32")"O" RING (3/4" X 15/16" X 3/32")
-
6N.S.S. "O" RING (1-1/2" X 1-3/4" X 3/32")"O" RING (1-1/2" X 1-3/4" X 3/32")
Все узлы модели:
- CARBURETOR ASSEMBLY
- CARBURETOR LINKAGE AND CHOKE SOLENOID
- CLAMP BRACKET ASSEMBLY
- COWL SUPPORT BRACKETS
- COWLING AND FRONT COVER
- CRANKSHAFT, PISTONS AND CONNECTING RODS
- CYLINDER BLOCK AND CRANKCASE ASSEMBLY
- DRIVE SHAFT HOUSING ASSEMBLY
- EXHAUST AND MANIFOLD COVERS
- FLYWHEEL, SWITCH BOX, IGNITION COIL, STATOR
- FUEL PUMP, FUEL FILTER AND FUEL LINES
- GEAR HOUSING (DRIVE SHAFT)
- GEAR HOUSING (PROPELLER SHAFT)
- HYDRAULIC PUMP ASSEMBLY (METAL RESERVOIR)
- HYDRAULIC PUMP ASSEMBLY (PLASTIC RESERVOIR)
- MISCELLANEOUS PARTS/ACCESSORIES
- POWER TRIM COMPONENTS
- POWER TRIM COMPONENTS
- POWER TRIM CYLINDER REPAIR KITS (76509A23 TRIM CYLINDER)
- • POWER TRIM CYLINDER REPAIR KITS (92194A20 TRIM CYLINDER)
- SHIFT LINKAGE AND EXHAUST PLATE
- STARTER MOTOR ASSEMBLY (BOSCH)
- STARTER MOTOR ASSEMBLY (PRESTOLITE)
- STARTER MOTOR, STARTER SOLENOID, RECTIFIER
- SWIVEL BRACKET AND REVERSE LOCK
- THROTTLE CONTROL LINKAGE AND SPARK ADVANCE
- TRIM CYLINDERS AND HYDRAULIC HOSES
