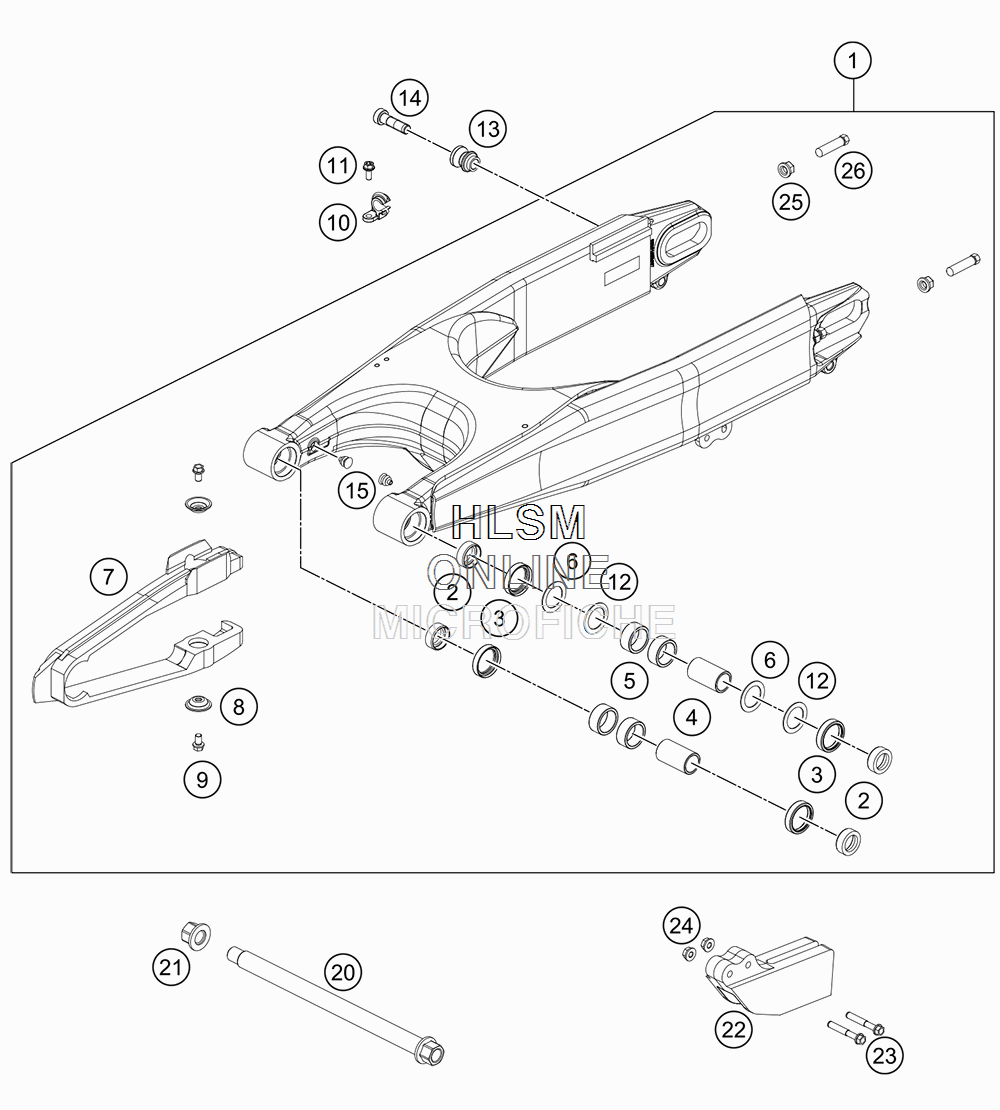

SWING ARM для Ktm 450 RALLY FACTORY REPLICA - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    76404030044 SWINGAR M RALL Y CPL.
    SWINGAR M RALL Y CPL.
  • 2
    76204034000 SP ACER F . SHAFT SEALRING
    SP ACER F . SHAFT SEALRING
  • 3
    0760253270 SHAFT SEAL RING 25X32X7
    SHAFT SEAL RING 25X32X7
  • 4
    59404032000 BEARING SLEEVE 17X22X38,7
    BEARING SLEEVE 17X22X38,7
  • 5
    0618222812 NEEDLEBEAR HK2212V 22/28/12 MB
    NEEDLEBEAR HK2212V 22/28/12 MB
  • 6
    76203037100 STOP DISK 22X32X1,0
    STOP DISK 22X32X1,0
  • 7
    50304066100 CHAIN GUARD
    CHAIN GUARD
  • 8
    72210079000 BUCKET
    BUCKET
  • 9
    0025060106 HH COLLAR SCREW M6X10
    HH COLLAR SCREW M6X10
  • 10
    54611076100 RETAIN.CLAMP FOR BRAKE HOSE
    RETAIN.CLAMP FOR BRAKE HOSE
  • 11
    0010050103 SPECIAL SCREW M 5,0X10
    SPECIAL SCREW M 5,0X10
  • 12
    76203037000 STOP DISK 22,2X31,7X0,5
    STOP DISK 22,2X31,7X0,5
  • 13
    76404059000 SUPPOR T F . LIFTING DEVICE
    SUPPOR T F . LIFTING DEVICE
  • 14
    0032100356S AH-COLLAR SCREW M10X35 ISA45
    AH-COLLAR SCREW M10X35 ISA45
  • 15
    60004042000 PLUG SFL12 GREY
    PLUG SFL12 GREY
  • 20
    76204037044 SWINGAR M BOL T CPL.
    SWINGAR M BOL T CPL.
  • 21
    54603015000 SELF LOCKING NUT M14X1,5 WS=19
    SELF LOCKING NUT M14X1,5 WS=19
  • 22
    54607066100 CHAIN GUIDE REAR
    CHAIN GUIDE REAR
  • 23
    0025060406 HH COLLAR SCREW M6X40
    HH COLLAR SCREW M6X40
  • 24
    56509064100 SELF LOCKING NUT M6
    SELF LOCKING NUT M6
  • 25
    58414030000 HH COLLAR NUT M10X1,25
    HH COLLAR NUT M10X1,25
  • 26
    50304040100 SCREW M10X1,25X50 WS=10
    SCREW M10X1,25X50 WS=10
