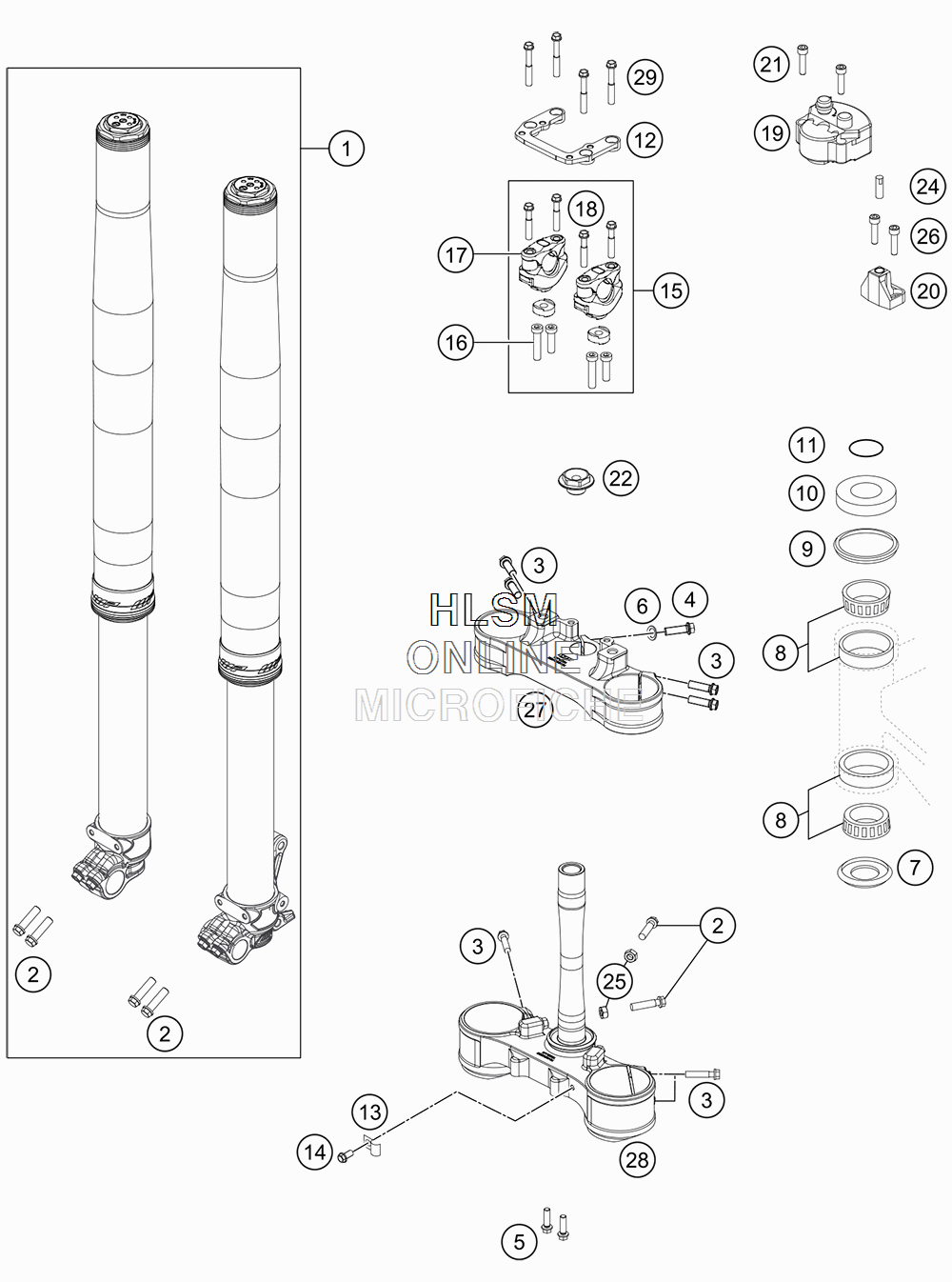

FRONT FORK- TRIPLE CLAMP для Ktm 450 RALLY FACTORY REPLICA - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    14182N40E FORK 450 RALLY
    FORK 450 RALLY
  • 2
    0025080256 HH COLLAR SCREW M8X25
    HH COLLAR SCREW M8X25
  • 3
    0025080306 HH COLLAR SCREW M8X30
    HH COLLAR SCREW M8X30
  • 4
    0025080256S HH COLLAR SCREW M8X25
    HH COLLAR SCREW M8X25
  • 5
    0025080206 HH COLLAR SCREW M8X20
    HH COLLAR SCREW M8X20
  • 6
    36003014000 LOCK WASHER 8MM
    LOCK WASHER 8MM
  • 7
    77701084000 O-RING SUPPORT W. SEALING LIP
    O-RING SUPPORT W. SEALING LIP
  • 8
    54201081100 TAPERED ROLLER BEARING CPL.
    TAPERED ROLLER BEARING CPL.
  • 9
    54601184000 STEARING HEAD GASKET TOP
    STEARING HEAD GASKET TOP
  • 10
    7620108600030 STEER HEAD COV SHOR TENED BLK
    STEER HEAD COV SHOR TENED BLK
  • 11
    0770025035 O-RING 25X3,55 NBR70
    O-RING 25X3,55 NBR70
  • 12
    R0502003000 GPS SUPPORT MILLED
    GPS SUPPORT MILLED
  • 13
    50211096000 CLAMP FOR WIRING HARNESS
    CLAMP FOR WIRING HARNESS
  • 14
    0025050166 HH COLLAR SCREW M5X16
    HH COLLAR SCREW M5X16
  • 15
    SXS07125200 PHDS PROGRESSIVE H-BAR DAMPING
    PHDS PROGRESSIVE H-BAR DAMPING
  • 16
    0912100256 AH SCREW DIN0912-M10X25
    AH SCREW DIN0912-M10X25
  • 16
    0032100356S AH-COLLAR SCREW M10X35 ISA45
    AH-COLLAR SCREW M10X35 ISA45
  • 17
    SXS05125203 ELASTOMER GREEN/SOFT
    ELASTOMER GREEN/SOFT
  • 17
    SXS05125204 ELASTOMER YELLOW/MEDIUM
    ELASTOMER YELLOW/MEDIUM
  • 17
    SXS05125205 ELASTOMER RED/HARD
    ELASTOMER RED/HARD
  • 18
    0025080456 HH COLLAR SCREW M8X45
    HH COLLAR SCREW M8X45
  • 19
    58512050100 STEERING DAMPER
    STEERING DAMPER
  • 20
    76403001079 STEERING DAMPER BRACKET CPL.
    STEERING DAMPER BRACKET CPL.
  • 21
    0912060253 AH SCREW DIN0912-M 6X25
    AH SCREW DIN0912-M 6X25
  • 22
    54801036000 STEER.HEAD SCREW M20X1,5 WS=27
    STEER.HEAD SCREW M20X1,5 WS=27
  • 24
    58502006100 PIN F .STEERIN G ST AB. 8MM 05
    PIN F .STEERIN G ST AB. 8MM 05
  • 25
    46030045000 COLLAR NUT M8 WS=10
    COLLAR NUT M8 WS=10
  • 26
    0012060164 AH SCREW DIN6912 M6X16 SL
    AH SCREW DIN6912 M6X16 SL
  • 27
    7640103422204 TOP TRIPLE CLAMP X=22MM
    TOP TRIPLE CLAMP X=22MM
  • 28
    7640103222204 BOT. TRIPLE CLAMP CPL.
    BOT. TRIPLE CLAMP CPL.
  • 29
    0025080506 HH COLLAR SCREW M8X50
    HH COLLAR SCREW M8X50
