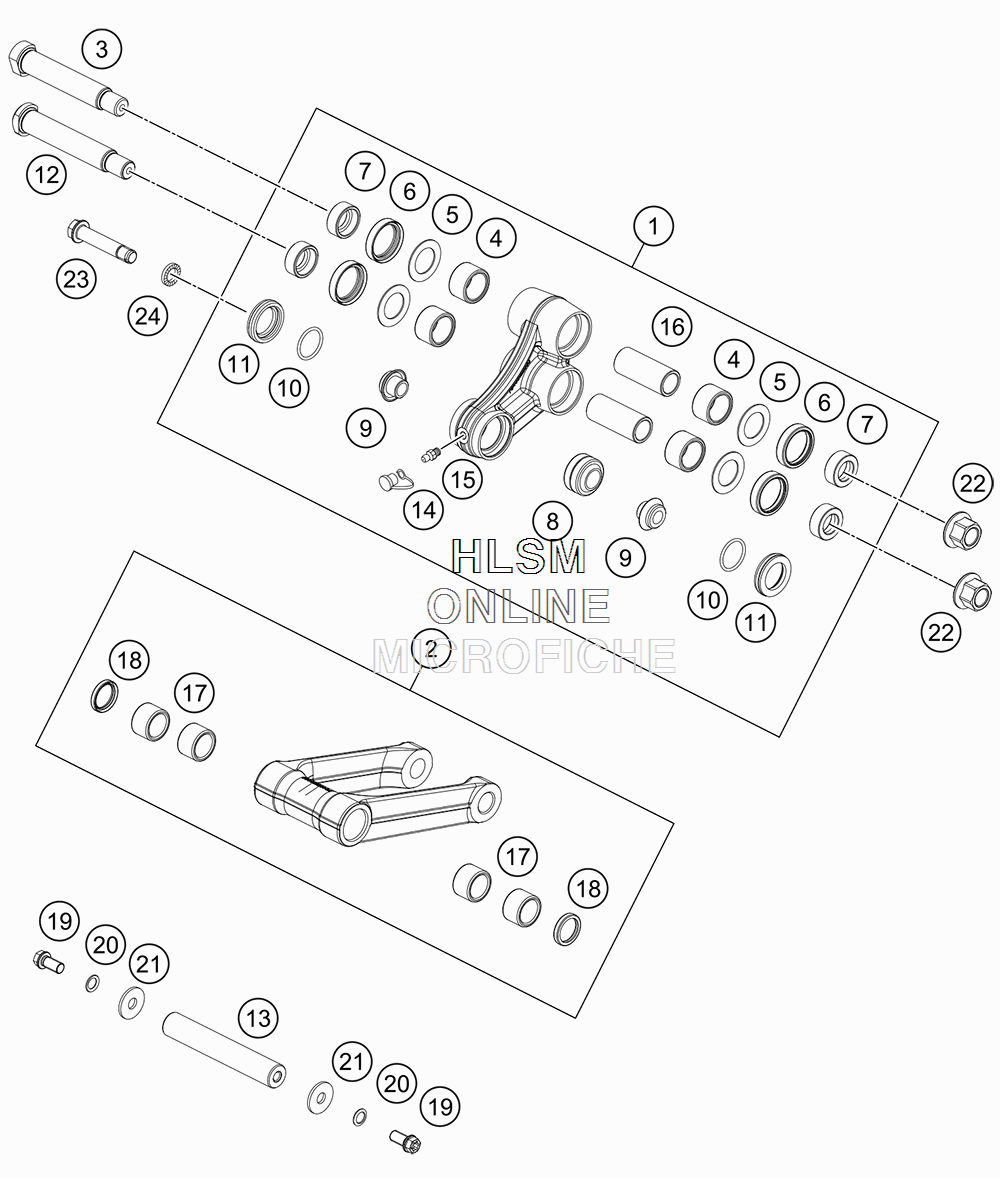

PRO LEVER LINKING для Ktm 450 RALLY FACTORY REPLICA - 2017 года выпуска
-
№АртикулНазвание
-
176403132044 CANTILEVER CPL.CANTILEVER CPL.
-
276403183044 PULL ROD CPL.PULL ROD CPL.
-
376403032010 BOL T FOR CANTILEVERBOL T FOR CANTILEVER
-
454603097000 NEEDLE BUSH HKNEEDLE BUSH HK
-
559033080000 SHIM 20X32X1SHIM 20X32X1
-
60760253270 SHAFT SEAL RING 25X32X7SHAFT SEAL RING 25X32X7
-
777204080130 BUCKET SHAFT SEAL RING 25X11BUCKET SHAFT SEAL RING 25X11
-
876203083050 SPHERICAL BEARING INA GE14BWSPHERICAL BEARING INA GE14BW
-
976403085000 COLLAR BUSHINGCOLLAR BUSHING
-
100770021020 O-RING 21,00X2,00 NBR70O-RING 21,00X2,00 NBR70
-
1176203032020 SUPPOR T FOR SEAL RINGSUPPOR T FOR SEAL RING
-
1276403032015 BOL T FOR CANTILEVERBOL T FOR CANTILEVER
-
1376203083010 PULL ROD ANCHOR BOL TPULL ROD ANCHOR BOL T
-
1453003099000 CAP WITH LOOP REDCAP WITH LOOP RED
-
1572003035000 GREASE FITTING M6 STRAIGHTGREASE FITTING M6 STRAIGHT
-
1654603081000 BUSHING SLEEVE 15 X 20 X 48BUSHING SLEEVE 15 X 20 X 48
-
1756503195100 NEEDLE BEARING HK 1816NEEDLE BEARING HK 1816
-
180760182442 SHAFT SEAL RING 18X24X4SHAFT SEAL RING 18X24X4
-
190025080166S HH COLLAR SCREW M8X16HH COLLAR SCREW M8X16
-
2036003014000 LOCK WASHER 8MMLOCK WASHER 8MM
-
210021080003 WASHER DIN9021-A 8,4WASHER DIN9021-A 8,4
-
2254603015000 SELF LOCKING NUT M14X1,5 WS=19SELF LOCKING NUT M14X1,5 WS=19
-
2377204089000 HH COLLAR SCREW M10X52 SW13HH COLLAR SCREW M10X52 SW13
-
2450233041100 PAIR OF WASHERS M10 NORDLOCKPAIR OF WASHERS M10 NORDLOCK
