ACCESSORIES KIT для Ktm 450 RALLY FACTORY REPLICA - 2017 года выпуска
-
№АртикулНазвание
-
058412040100 REAR MIRROR L/S+R/SREAR MIRROR L/S+R/S
-
076408099000 DECAL SETDECAL SET
-
0312305 DOCUMENTS BAGDOCUMENTS BAG
-
0312313 KTM BALLPOINT PEN ORANGEKTM BALLPOINT PEN ORANGE
-
03210039 CUSTOMER WELCOME LETTERCUSTOMER WELCOME LETTER
-
00024060156 HH COLLAR SCREW M6X15HH COLLAR SCREW M6X15
-
00985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
00985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
00125060003 WASHER DIN0125-A 6,4WASHER DIN0125-A 6,4
-
081212016100 WASH CAP SETWASH CAP SET
-
00017060205 SCREW FOR PLASTIC K60X20SCREW FOR PLASTIC K60X20
-
050311029000 FLASHER SWITCH CEVFLASHER SWITCH CEV
-
013011070060 ADAPTER FOR FLASHER SWITCHADAPTER FOR FLASHER SWITCH
-
00084040223 CYL.HEAD SCREW DIN0084-M 4X22ACYL.HEAD SCREW DIN0084-M 4X22A
-
076508016050 NUMBER PLATE LO. PARTNUMBER PLATE LO. PART
-
077005009033 CATALYST WELDED EXCCATALYST WELDED EXC
-
078114026000 FLASHER CPL.FRONT R/S REAR L/SFLASHER CPL.FRONT R/S REAR L/S
-
078114025000 FLASHER CPL.FRONT L/S REAR R/SFLASHER CPL.FRONT L/S REAR R/S
-
058414030000 HH COLLAR NUT M10X1,25HH COLLAR NUT M10X1,25
-
00797100003 LOCK WASHER DIN6797-J10,5 ZILOCK WASHER DIN6797-J10,5 ZI
-
00125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
044611207200 FLASHER UNITFLASHER UNIT
-
076411080000 WIRING HARNESS FLASHERWIRING HARNESS FLASHER
-
062512081000 BRACKET SIDE REFLECTORBRACKET SIDE REFLECTOR
-
016512180100 SIDE REFLECTOR RED REARSIDE REFLECTOR RED REAR
-
040006006000 WASHER 6MMWASHER 6MM
-
00125050003 WASHER DIN0125-A 5,3WASHER DIN0125-A 5,3
-
058412080000 REFLECTOR REDREFLECTOR RED
-
058412080050 BRACKET FOR REFLECTORBRACKET FOR REFLECTOR
-
060012081200 LICENCE FITTINGLICENCE FITTING
-
049111425200 BULB 12V 2,3W (W2X4,6D)BULB 12V 2,3W (W2X4,6D)
-
00934040003 HEXAGON NUT DIN0934-M 4HEXAGON NUT DIN0934-M 4
-
00081050121 SCREW FOR PLASTIC K50X12SCREW FOR PLASTIC K50X12
-
077714069400 TACHO DIGITAL KM/H F. 21"TACHO DIGITAL KM/H F. 21"
-
058214069051 RUBBER GROMMET 16X10,8X3RUBBER GROMMET 16X10,8X3
-
075014047000 LICENSE PLATE ILLUMINATIONLICENSE PLATE ILLUMINATION
-
00081250181 SCREW FOR PLASTIC 50X18 T20SCREW FOR PLASTIC 50X18 T20
-
076511078000 WIRING HARN. LIC. PLATE ILLUM.WIRING HARN. LIC. PLATE ILLUM.
-
049011435100 BULB 12V 5W (W2,1X9,5D) PHIL.BULB 12V 5W (W2,1X9,5D) PHIL.
-
00966050163 OVAL HEAD SCREW DIN0966-M 5X16OVAL HEAD SCREW DIN0966-M 5X16
-
00985040163 FLAT HEAD SCREW DIN7985-M 4X16FLAT HEAD SCREW DIN7985-M 4X16
-
07730821000028 FRONT FENDER WHITEFRONT FENDER WHITE
-
077308010099 MOUNTING KIT FRONT FENDERMOUNTING KIT FRONT FENDER
-
05900109410028 FORK PROTECT. L/S+R/S WHITEFORK PROTECT. L/S+R/S WHITE
-
059001092050 SPECIAL SCREW M6X12,5SPECIAL SCREW M6X12,5
-
13213343EN OWN.MAN. 450 RALL Y REPLICAOWN.MAN. 450 RALL Y REPLICA
-

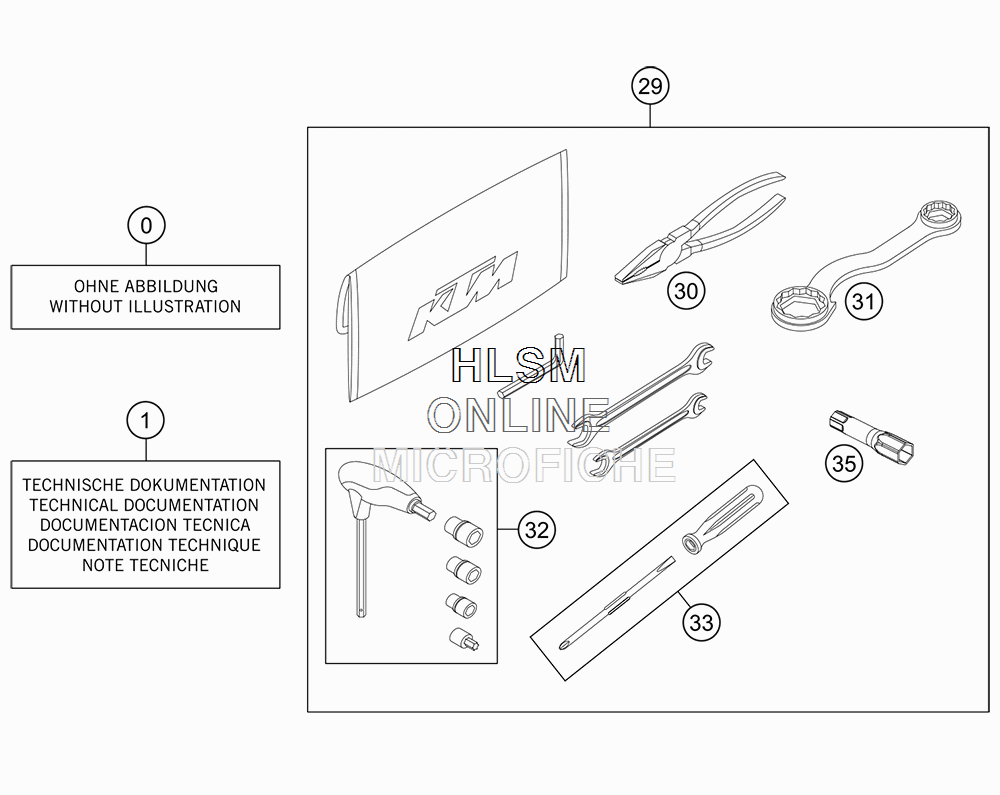

2976429099000 TOOL SET RALLYTOOL SET RALLY
-
3053012028200 GRIP ORANGE B & FGRIP ORANGE B & F
-
3150329080100 WRENCH SW=17/21/27/32 B & FWRENCH SW=17/21/27/32 B & F
-
3260029070300 T-WRENCH WS=6/8/10/TX45/SK4X1T-WRENCH WS=6/8/10/TX45/SK4X1
-
3353012024100 SCREW DRIVER L=105MMSCREW DRIVER L=105MM
-
3578029072000 SPARK PLUG SOCKETSPARK PLUG SOCKET
