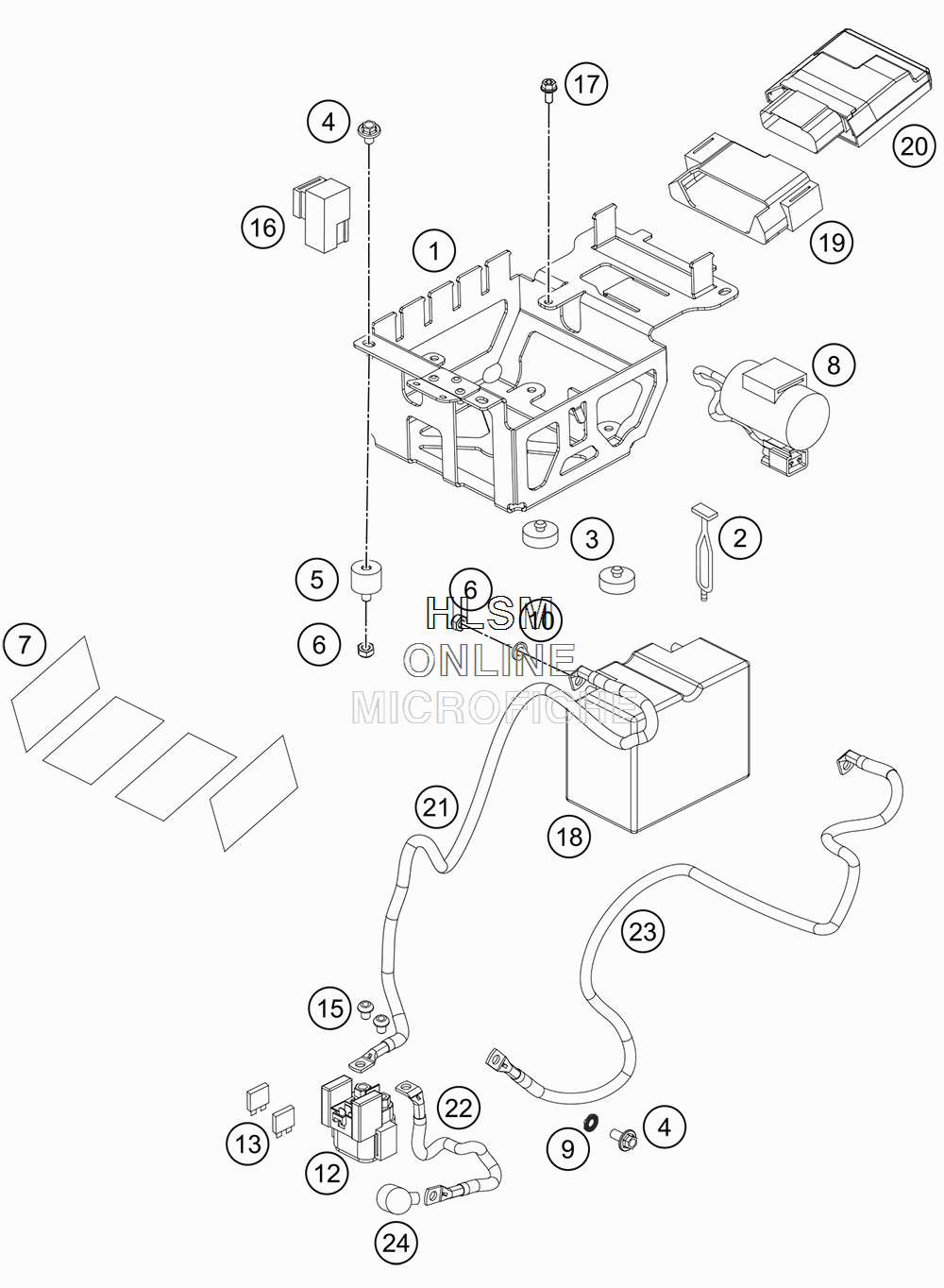

BATTERY для Ktm 450 RALLY FACTORY REPLICA - 2017 года выпуска

№

Артикул

Название
1

76411154000 ELCTRONIC BOX

ELCTRONIC BOX
2

50303018000 RUBBER L=145MM

RUBBER L=145MM
3

50307020000 RUBBER BUFFER FOR TANK

RUBBER BUFFER FOR TANK
4

0024060106 HH COLLAR SCREW M6X10

HH COLLAR SCREW M6X10
5

43205062100 RUBBER GROMMET 20X15-M6X10 (1)

RUBBER GROMMET 20X15-M6X10 (1)
6

0985060003 SELF LOCK. NUT DIN0985-M 6

SELF LOCK. NUT DIN0985-M 6
7

59003001099 METAMOLL 90X45X3MM

METAMOLL 90X45X3MM
8

77711035000 CONDENSATOR

CONDENSATOR
9

58411098100 CONTACT WASHER M6 VSV-K6

CONTACT WASHER M6 VSV-K6
10

0125060003 WASHER DIN0125-A 6,4

WASHER DIN0125-A 6,4
12

58211058000 STARTER RELAY 12V

STARTER RELAY 12V
13

58011109130 FUSE 30 A

FUSE 30 A
15

0902060083 AH OVAL SCREW ISO 7380 M 6X8

AH OVAL SCREW ISO 7380 M 6X8
16

61111057000 RELAY CM1A-R-12V-H80

RELAY CM1A-R-12V-H80
17

0025050106 COLLAR SCREW M5X10 ISA30

COLLAR SCREW M5X10 ISA30
18

77311953000 LITHIUM ION BATTERY 5S

LITHIUM ION BATTERY 5S
19

77741031050 RUBBER BRACKET ECU

RUBBER BRACKET ECU
20

77741031000 ELECTRONIC CONTROL UNIT

ELECTRONIC CONTROL UNIT
21

76411059050 BATTERY CABLE

BATTERY CABLE
22

76411059000 STARTER CABLE 10MM

STARTER CABLE 10MM
23

76411097000 GROUND CABLE 10MM

GROUND CABLE 10MM
24

77240099000 PROTECTION CAP F. STARTER ENG.

PROTECTION CAP F. STARTER ENG.
