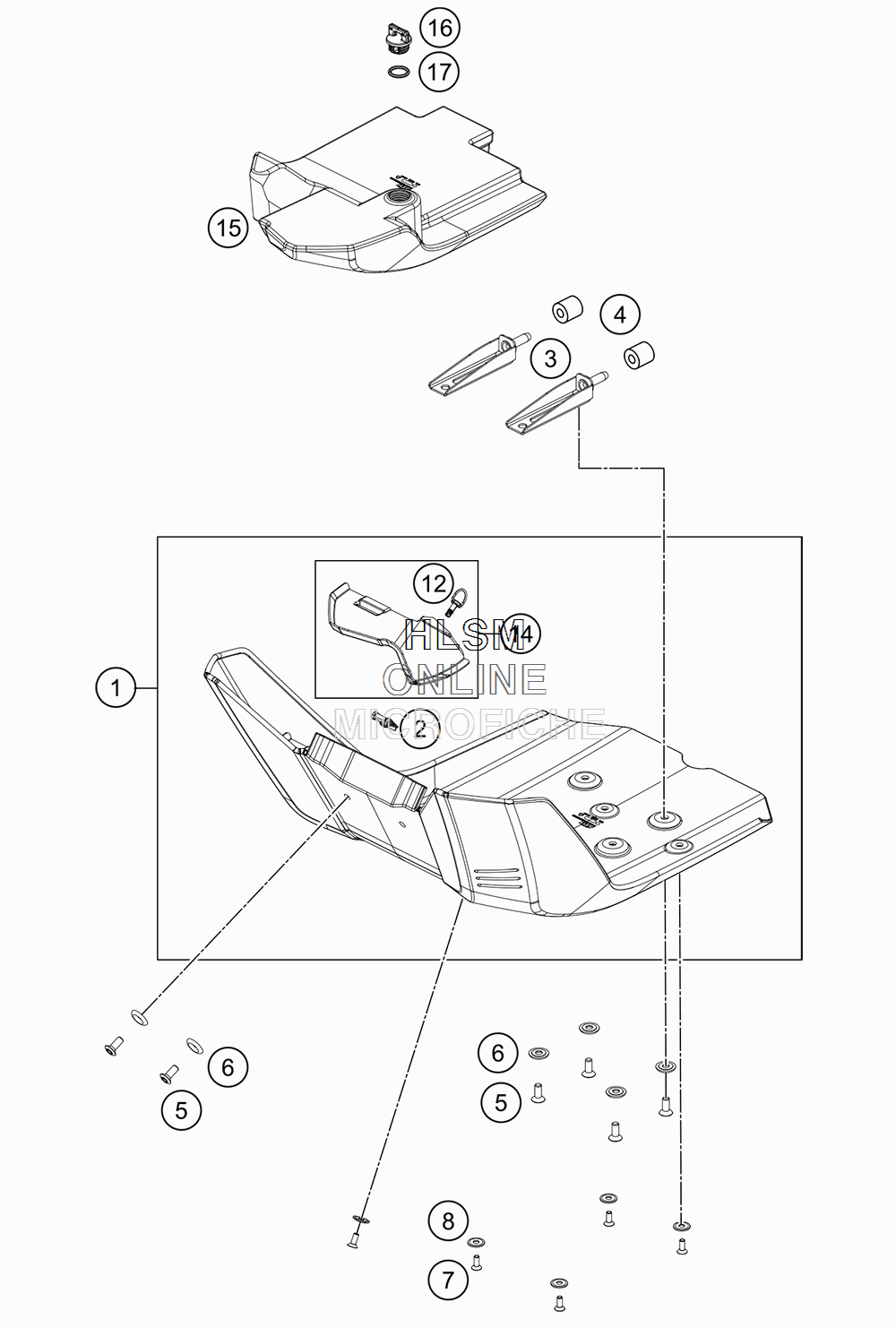

ENGINE GUARD для Ktm 450 RALLY FACTORY REPLICA - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    76412099140 ENGINE GUARD WITH TOOL CASE
    ENGINE GUARD WITH TOOL CASE
  • 2
    45007040052 CLIP
    CLIP
  • 3
    76412099010 ENGINE GUARD BRACKET REAR CPL.
    ENGINE GUARD BRACKET REAR CPL.
  • 4
    76203005031 RUBBER INSERT
    RUBBER INSERT
  • 5
    0019080206S FLAT HEAD SCREW M. ISA45 M8X20
    FLAT HEAD SCREW M. ISA45 M8X20
  • 6
    58303061000 SPECIAL WASHER ALU 8 X 24 MM
    SPECIAL WASHER ALU 8 X 24 MM
  • 7
    0991060163 FLAT HEAD SCR. DIN7991-M 6X16
    FLAT HEAD SCR. DIN7991-M 6X16
  • 8
    58308045000 SPECIAL WASHER 7X12,5X20 BLACK
    SPECIAL WASHER 7X12,5X20 BLACK
  • 12
    45007040051 QUICK RELEASE CPL. 50 SXR
    QUICK RELEASE CPL. 50 SXR
  • 14
    76412099142 COVER TOOL CASE CPL.
    COVER TOOL CASE CPL.
  • 15
    76412099000 WATER CANISTER
    WATER CANISTER
  • 16
    79430020033 OIL FILLER CAP M24X3 WITH O-RING
    OIL FILLER CAP M24X3 WITH O-RING
  • 17
    0770191015 O-RING 19,00X3,00 NBR
    O-RING 19,00X3,00 NBR
