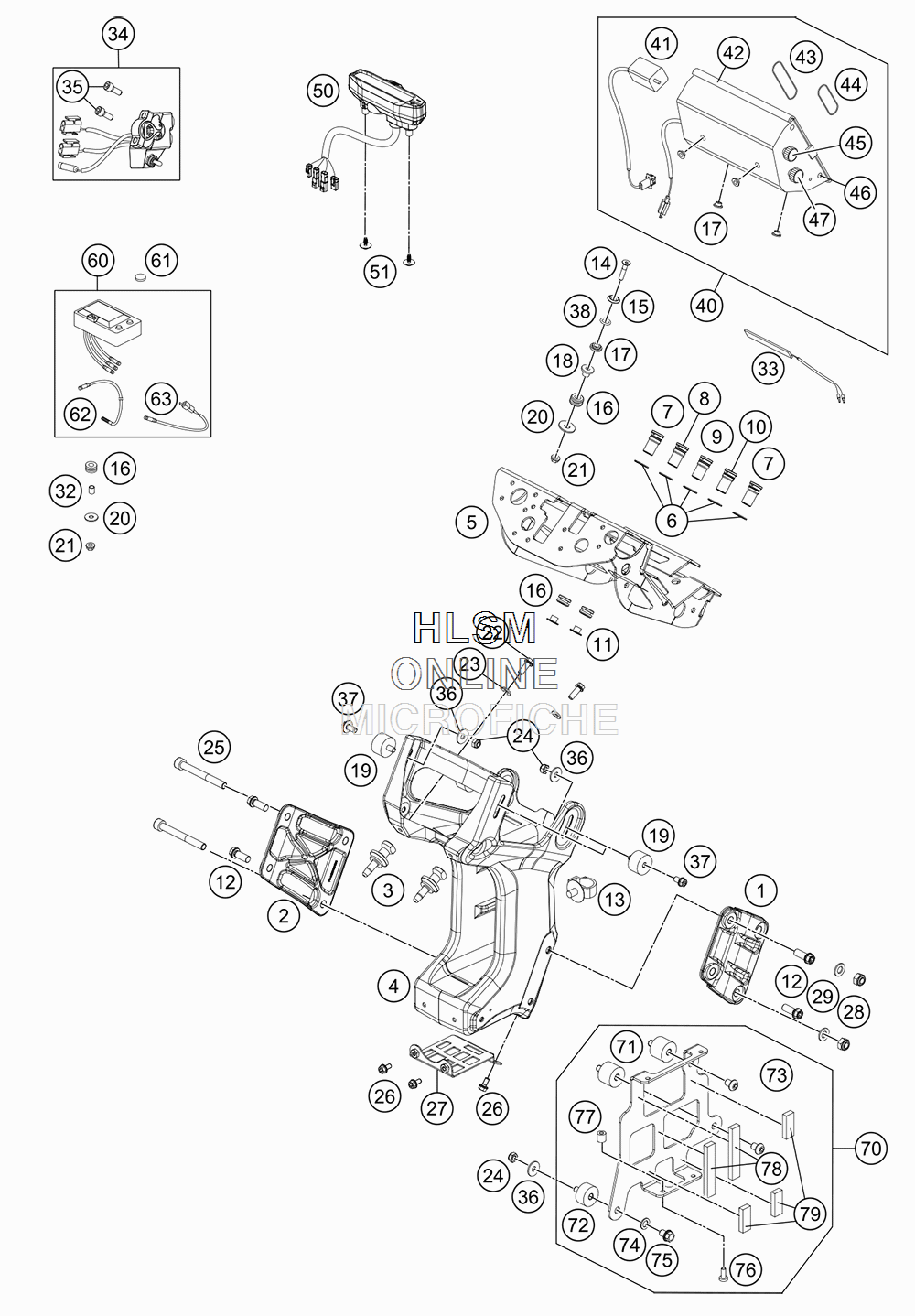

INSTRUMENTS / LOCK SYSTEM для Ktm 450 RALLY FACTORY REPLICA - 2017 года выпуска`
-
№АртикулНазвание
-
176412098190 ATTACHMENT FOR NAVI SUPP . L/SATTACHMENT FOR NAVI SUPP . L/S
-
276412098180 ATTACHMENT FOR NAVI SUPP . R/SATTACHMENT FOR NAVI SUPP . R/S
-
376412098043 POSITION PINPOSITION PIN
-
476412098040 ROADBOOK SUPPORTROADBOOK SUPPORT
-
576412091000 ROAD BOOK CARRIER CPL.ROAD BOOK CARRIER CPL.
-
60471140100 LOCK WASHER DIN0471-14X1LOCK WASHER DIN0471-14X1
-
781214086000 INDICATOR LIGHT RESERVEINDICATOR LIGHT RESERVE
-
858011021300 H.BEAM INDICATOR LIGHT BLUEH.BEAM INDICATOR LIGHT BLUE
-
981214083000 INDICATOR LIGHT LED YELLOW FIINDICATOR LIGHT LED YELLOW FI
-
1058011025000 OIL INDICATOR LIGHT REDOIL INDICATOR LIGHT RED
-
1176408001004 BUSHINGBUSHING
-
120025080206 HH COLLAR SCREW M8X20HH COLLAR SCREW M8X20
-
1358111076000 CABLE SUPPORT KHS NR.150-47610CABLE SUPPORT KHS NR.150-47610
-
140991050253 FLAT HEAD SCREW DIN7991-M 5X25FLAT HEAD SCREW DIN7991-M 5X25
-
1540006006000 WASHER 6MMWASHER 6MM
-
1631008060000 RUBBER SLEEVE D=8MM OPENRUBBER SLEEVE D=8MM OPEN
-
1750213161000 COLLAR BUSHINGCOLLAR BUSHING
-
1876412091043 BUSHINGBUSHING
-
1976212092031 RUB. GROM. 25X15XTYP B CPL.RUB. GROM. 25X15XTYP B CPL.
-
200021050003 WASHER DIN9021-A 5,3WASHER DIN9021-A 5,3
-
210985050003 SELF LOCKING NUT DIN0985-M5SELF LOCKING NUT DIN0985-M5
-
220025060166 HH COLLAR SCREW M6X16HH COLLAR SCREW M6X16
-
230125060003 WASHER DIN0125-A 6,4WASHER DIN0125-A 6,4
-
240985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
250912080706 CYL-SCREW DIN 912-M8X70CYL-SCREW DIN 912-M8X70
-
260025050106 COLLAR SCREW M5X10 ISA30COLLAR SCREW M5X10 ISA30
-
2776412098050 PLUG BOARD ZSBPLUG BOARD ZSB
-
280985080003 SELF LOCKING NUT DIN0985-M 8SELF LOCKING NUT DIN0985-M 8
-
290125080003 WASHER DIN0125-A 8,4WASHER DIN0125-A 8,4
-
3258011039000 SPACER BUSHING 6,5 X 8 X7SPACER BUSHING 6,5 X 8 X7
-
3376212098000 LIGHT DIODE CPL.RALL YELIGHT DIODE CPL.RALL YE
-
3476412175044 ROADBOOK SWITCH CPL.ROADBOOK SWITCH CPL.
-
350912060163 AH SCREW DIN0912-M 6X16AH SCREW DIN0912-M 6X16
-
360021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
370024060106 HH COLLAR SCREW M6X10HH COLLAR SCREW M6X10
-
380770090021 O-RING 9X2 VITONO-RING 9X2 VITON
-
4076212098044 ROADBOOK CPL.ROADBOOK CPL.
-
4158512074044 ROADBOOK ENGINE CPL.ROADBOOK ENGINE CPL.
-
4258512074020 PLASTIC COVER FOR ROADBOOKPLASTIC COVER FOR ROADBOOK
-
4358512074070 O-RING FOR ROADBOOK LONGO-RING FOR ROADBOOK LONG
-
4458512074060 O-RING FOR ROADBOOK SHORTO-RING FOR ROADBOOK SHORT
-
4558512074030 ALU-BUTTON TOP FOR ROADBOOKALU-BUTTON TOP FOR ROADBOOK
-
4658512074050 PLASTIC BUSHING F . ROADBOOKPLASTIC BUSHING F . ROADBOOK
-
4758512074040 ALU-BUTTON BASE F . ROADBOOKALU-BUTTON BASE F . ROADBOOK
-
5077714069400 TACHO DIGITAL KM/H F. 21"TACHO DIGITAL KM/H F. 21"
-
510081645121 EJOT DELTA PT SCREW 45X12-ZEJOT DELTA PT SCREW 45X12-Z
-
6076412085000 TRIPMASTERTRIPMASTER
-
6158512085160 BATTERY FOR ICO TRIPMASTERBATTERY FOR ICO TRIPMASTER
-
6276412085010 WHEEL SENSOR TRIPMASTER RNSWHEEL SENSOR TRIPMASTER RNS
-
6376412085020 ELECTRIC CABLE TRIPMASTER RNSELECTRIC CABLE TRIPMASTER RNS
-
7076412084033M01 EMERGENCY SENDER CPL.EMERGENCY SENDER CPL.
-
7143205062100 RUBBER GROMMET 20X15-M6X10 (1)RUBBER GROMMET 20X15-M6X10 (1)
-
7276412084006M01 RUBBER GROMMET 20X10-M6X1RUBBER GROMMET 20X10-M6X1
-
730902060083 AH OVAL SCREW ISO 7380 M 6X8AH OVAL SCREW ISO 7380 M 6X8
-
7450233041000 PAIR OF WASHERS M 6 NORDLOCKPAIR OF WASHERS M 6 NORDLOCK
-
750015060083 HH COLLAR SCREW M 6X8HH COLLAR SCREW M 6X8
-
7607985040103 FLA T HEAD SCREW DIN7985 M4X10FLA T HEAD SCREW DIN7985 M4X10
-
7776412084002M01 SLEEVE EMERGENCY SENDERSLEEVE EMERGENCY SENDER
-
7876412084003M01 FOAM RUBBER 55MMFOAM RUBBER 55MM
-
7976412084004M01 FOAM RUBBER 27MMFOAM RUBBER 27MM
