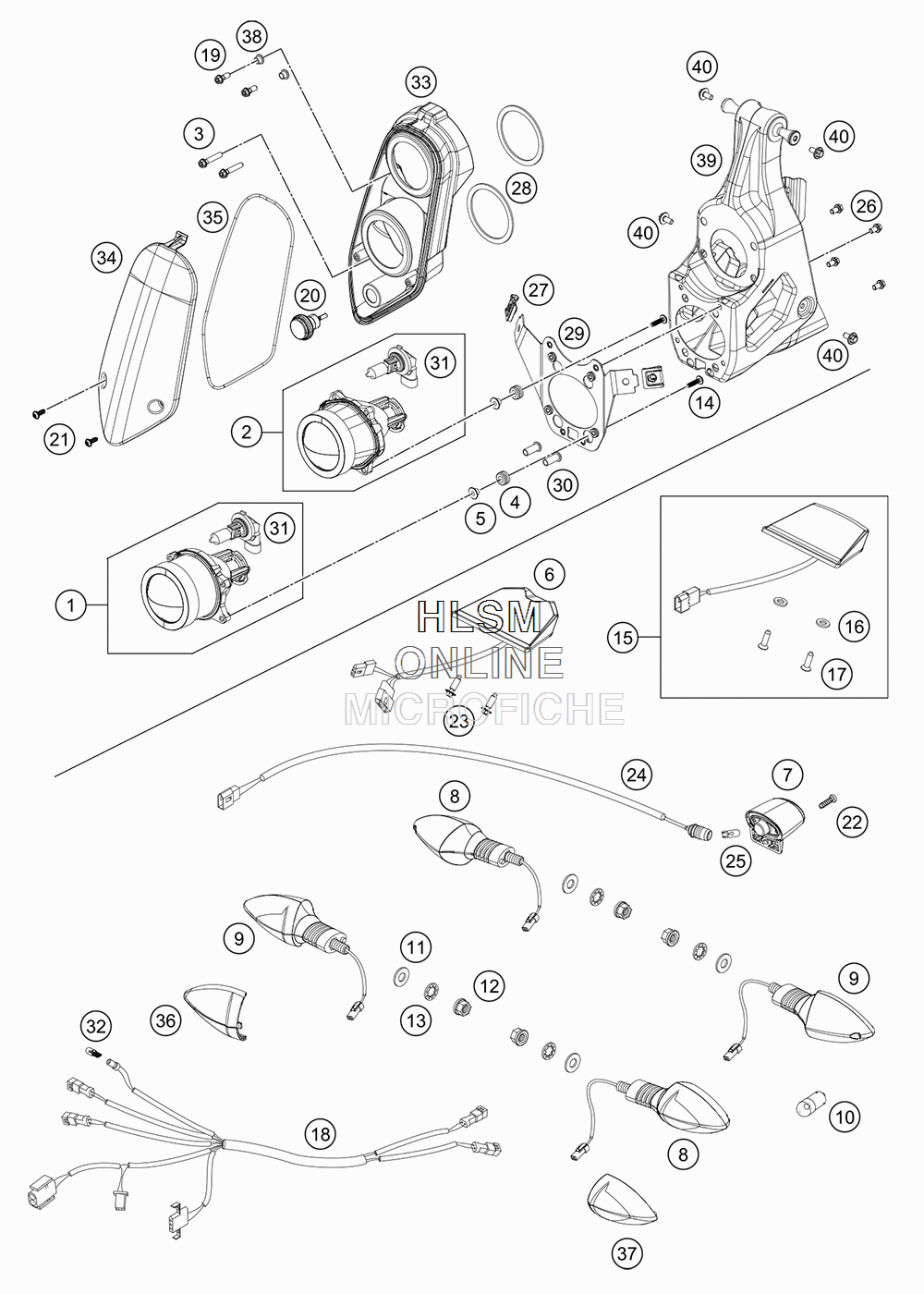

LIGHTING SYSTEM для Ktm 450 RALLY FACTORY REPLICA - 2017 года выпуска
-
№АртикулНазвание
-
176414001000 HEADLIGHT HIGH BEAMHEADLIGHT HIGH BEAM
-
276214002000 HEADLIGHT LOW BEAMHEADLIGHT LOW BEAM
-
30025060306 HH COLLAR SCREW M6X30HH COLLAR SCREW M6X30
-
431008060000 RUBBER SLEEVE D=8MM OPENRUBBER SLEEVE D=8MM OPEN
-
576408001004 BUSHINGBUSHING
-
676514040000 REAR LIGHTREAR LIGHT
-
775014047000 LICENSE PLATE ILLUMINATIONLICENSE PLATE ILLUMINATION
-
878114025000 FLASHER CPL.FRONT L/S REAR R/SFLASHER CPL.FRONT L/S REAR R/S
-
978114026000 FLASHER CPL.FRONT R/S REAR L/SFLASHER CPL.FRONT R/S REAR L/S
-
1060114027000 BULB 12V ORANGEBULB 12V ORANGE
-
110125100003 WASHER DIN0125-A10,5WASHER DIN0125-A10,5
-
1258414030000 HH COLLAR NUT M10X1,25HH COLLAR NUT M10X1,25
-
130797100003 LOCK WASHER DIN6797-J10,5 ZILOCK WASHER DIN6797-J10,5 ZI
-
1476414003002 EJOMA T PT SCREW 50X20EJOMA T PT SCREW 50X20
-
1576314040044 ADDITIONAL REAR LIGHT CPL.ADDITIONAL REAR LIGHT CPL.
-
1677332036004 WASHER 5,3X12X0,5WASHER 5,3X12X0,5
-
170985050103 OVAL HEAD SCR. DIN7985-M 5X10OVAL HEAD SCR. DIN7985-M 5X10
-
1876411080000 WIRING HARNESS FLASHERWIRING HARNESS FLASHER
-
190025060126 HH COLLAR SCREW M6X12HH COLLAR SCREW M6X12
-
2076414004000 POSITION LIGHTPOSITION LIGHT
-
210081050141 EJOT PT SCREW 50X14 WN 1451EJOT PT SCREW 50X14 WN 1451
-
220081250181 SCREW FOR PLASTIC 50X18 T20SCREW FOR PLASTIC 50X18 T20
-
230017060205 SCREW FOR PLASTIC K60X20SCREW FOR PLASTIC K60X20
-
2476511078000 WIRING HARN. LIC. PLATE ILLUM.WIRING HARN. LIC. PLATE ILLUM.
-
2549011435100 BULB 12V 5W (W2,1X9,5D) PHIL.BULB 12V 5W (W2,1X9,5D) PHIL.
-
260025060106 HH COLLAR SCREW M6X10HH COLLAR SCREW M6X10
-
2745007040052 CLIPCLIP
-
2876408001005 CELLULAR RUBBERCELLULAR RUBBER
-
2976408004010 FRONTLIGHT MASK HOLDER ASSYFRONTLIGHT MASK HOLDER ASSY
-
3076408001003 BUSHBUSH
-
3176414003001 BULB HB3BULB HB3
-
3249111425200 BULB 12V 2,3W (W2X4,6D)BULB 12V 2,3W (W2X4,6D)
-
3376408001000 FRONTLIGH T MASKFRONTLIGH T MASK
-
3476412079000 STONE GUARDSTONE GUARD
-
3569006001060 GASKET F. AIRBOXGASKET F. AIRBOX
-
3678114028000 FLASHER LENS L/S R/S TRANSP.FLASHER LENS L/S R/S TRANSP.
-
3778114027000 FLASHER LENS FRO.L/S-REAR R/SFLASHER LENS FRO.L/S-REAR R/S
-
3876408001002 SLEEVESLEEVE
-
3976408003000 LIGHT SUPPOR T STRUCTURE ASSYLIGHT SUPPOR T STRUCTURE ASSY
-
400024060136 HH COLLAR SCREW M6X13HH COLLAR SCREW M6X13
