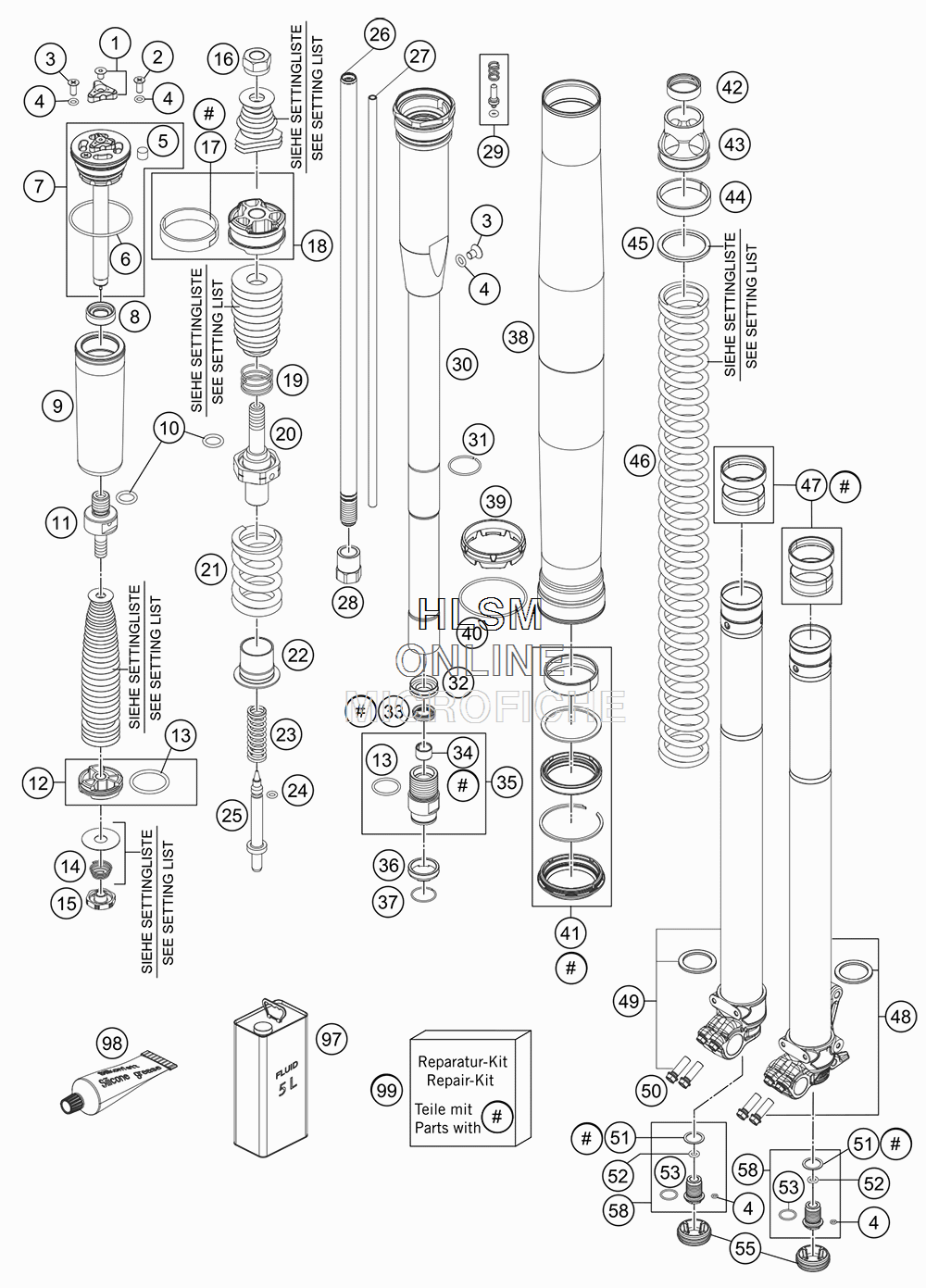

FRONT FORK DISASSEMBLED для Ktm 450 RALLY FACTORY REPLICA - 2017 года выпуска

  • №
    Артикул
    Название
  • 1
    48600811S ADJUSTING KNOB + SCREW
    ADJUSTING KNOB + SCREW
  • 2
    48600526 SCREW M4X10
    SCREW M4X10
  • 3
    48600542 AH SCREW M4X6
    AH SCREW M4X6
  • 4
    50180222 O-RING NBR 4X1,5
    O-RING NBR 4X1,5
  • 5
    15080017 SILICON CAP
    SILICON CAP
  • 6
    40140024 O-RING NBR 43X2
    O-RING NBR 43X2
  • 7
    48600516E1 SCREW CAP L=125
    SCREW CAP L=125
  • 8
    48600514 MEMBRANE SLEEVE
    MEMBRANE SLEEVE
  • 9
    48600281 MEMBRANE
    MEMBRANE
  • 10
    48600299 O-RING 6X1,2 NBR
    O-RING 6X1,2 NBR
  • 11
    48600509 PISTON ROD COMPRESSION
    PISTON ROD COMPRESSION
  • 12
    48600047S PISTON + O-RING
    PISTON + O-RING
  • 13
    46811499 O-RING NBR 21X2
    O-RING NBR 21X2
  • 14
    48600202 SPRING CHECK VALVE D=0,7
    SPRING CHECK VALVE D=0,7
  • 15
    48600163 CHECK VALVE NUT M6X0,5 D=2
    CHECK VALVE NUT M6X0,5 D=2
  • 16
    40540486 NUT M6X0,5 REBOUND
    NUT M6X0,5 REBOUND
  • 17
    48600455 PISTON RING 5X1X68
    PISTON RING 5X1X68
  • 18
    48600575S PISTON REBOUND + PISTON RING
    PISTON REBOUND + PISTON RING
  • 19
    48600382 SHUTTLE VALVE SPRING C=0,4
    SHUTTLE VALVE SPRING C=0,4
  • 20
    48600576 PISTON ROD REBOUND
    PISTON ROD REBOUND
  • 21
    48600578 SPRING REB. L=32 C=37 DI=13,9
    SPRING REB. L=32 C=37 DI=13,9
  • 22
    48600525 GUIDING BUSH REBOUND SPRING
    GUIDING BUSH REBOUND SPRING
  • 23
    48600444 REBOUND SPRING C=4N/MM
    REBOUND SPRING C=4N/MM
  • 24
    48600298 O-RING 2X1,5 NBR
    O-RING 2X1,5 NBR
  • 25
    48600277 ADJUSTER NEEDLE
    ADJUSTER NEEDLE
  • 26
    48600464 PISTON ROD SXS 2005
    PISTON ROD SXS 2005
  • 27
    48600269 ADJUSTING TUBE L=371
    ADJUSTING TUBE L=371
  • 28
    48600459 COUNTERNUT M12X1 WS17
    COUNTERNUT M12X1 WS17
  • 29
    48600977S PIN KIT
    PIN KIT
  • 30
    48600519E4 MEMBRANE HOLDER INKL. PIPE
    MEMBRANE HOLDER INKL. PIPE
  • 31
    48600512 LOCK WASHER D=25,5
    LOCK WASHER D=25,5
  • 32
    48601056 RING 23,45X8,9
    RING 23,45X8,9
  • 33
    48600829 SHAFT SEAL RING 12MM
    SHAFT SEAL RING 12MM
  • 34
    48600430 DU BUSH FOR PISTON ROD
    DU BUSH FOR PISTON ROD
  • 35
    48601055S SCREW SLEEVE M24,5X1 CPL.
    SCREW SLEEVE M24,5X1 CPL.
  • 36
    48600297 CHECK VALVE STOP
    CHECK VALVE STOP
  • 37
    48600446 LOCK WASHER D=20
    LOCK WASHER D=20
  • 38
    48600761 OUTER TUBE L577 D54/60MM
    OUTER TUBE L577 D54/60MM
  • 39
    48600698 FORK PROTECTION RING
    FORK PROTECTION RING
  • 40
    48600016 GUIDING RING D=58MM
    GUIDING RING D=58MM
  • 41
    R14040 GASKET KIT CPL.
    GASKET KIT CPL.
  • 42
    48600577 RING SPRING-SUPPORT
    RING SPRING-SUPPORT
  • 43
    48600520 SPRING SUPPORT
    SPRING SUPPORT
  • 44
    48600744 GUIDE RING 44 X39
    GUIDE RING 44 X39
  • 45
    48600456 SPACER 43X35X2,5
    SPACER 43X35X2,5
  • 45
    48600457 SPACER 43X35X5
    SPACER 43X35X5
  • 45
    48600458 SPACER 43X35X1,5
    SPACER 43X35X1,5
  • 46
    91410030S SPRING 5,0 N/MM
    SPRING 5,0 N/MM
  • 47
    R14047 REP. KIT GUIDE BUSHINGS
    REP. KIT GUIDE BUSHINGS
  • 48
    48601540S1 AXLE-CL. MA DISC BR+INNERT . LEFT
    AXLE-CL. MA DISC BR+INNERT . LEFT
  • 49
    48601541S1 AXLE-CL. MA DISC BR+INNERT . RIGHT
    AXLE-CL. MA DISC BR+INNERT . RIGHT
  • 50
    0025080256 HH COLLAR SCREW M8X25
    HH COLLAR SCREW M8X25
  • 51
    48600275 COPPER WASHER 20,5X26X1
    COPPER WASHER 20,5X26X1
  • 52
    48600301 O-RING NBR 9,5X1,5
    O-RING NBR 9,5X1,5
  • 53
    46810811 O-RING NBR 17X2 PA
    O-RING NBR 17X2 PA
  • 54
    48600280E SCREW BUSH M20X1 L=33 CPL.
    SCREW BUSH M20X1 L=33 CPL.
  • 55
    48600141 RUBBER CAP D=35MM
    RUBBER CAP D=35MM
  • 97
    48601166S1 FORK OIL SAE4 5L
    FORK OIL SAE4 5L
  • 98
    T511 SILICONE GREASE F. DUST STRI
    SILICONE GREASE F. DUST STRI
  • 99
    R14053 REPAIR KIT FORK
    REPAIR KIT FORK
