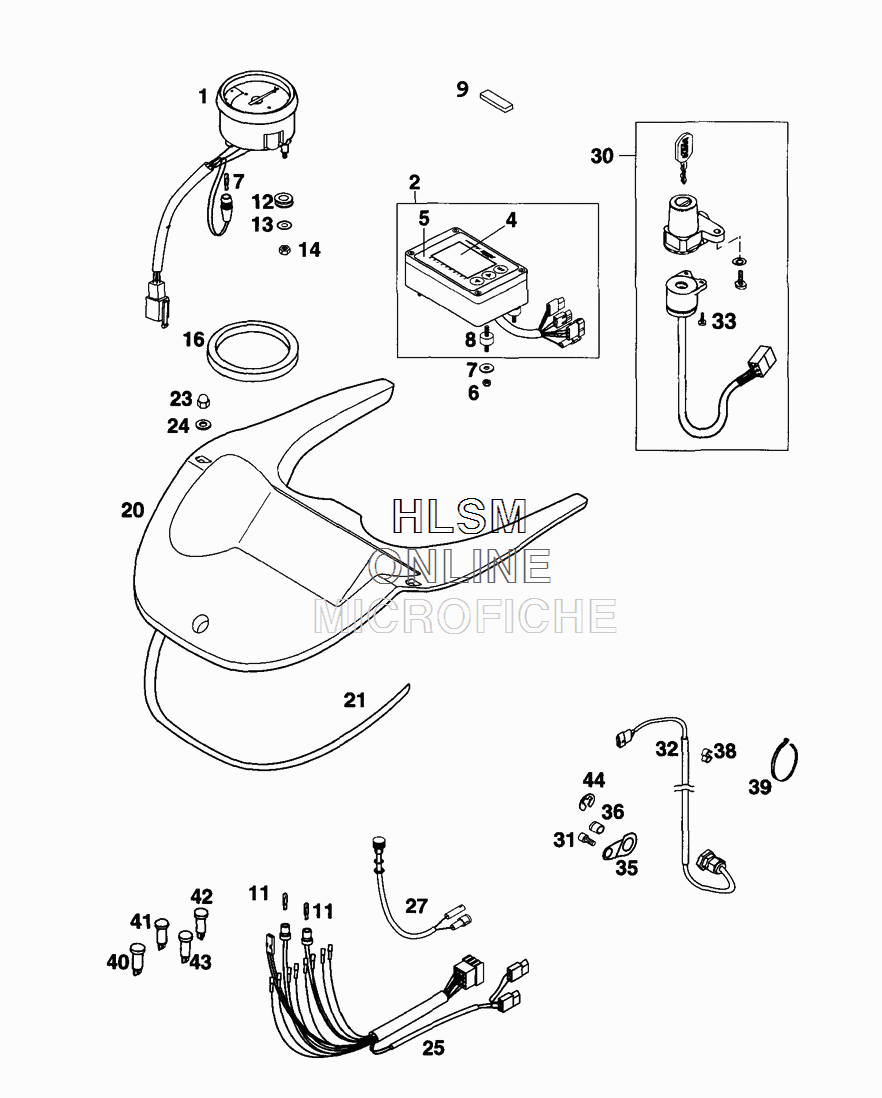

TACHOMETER W/ TRIPPMASTER для Ktm LC4 640 Adventure R - 2001 года выпуска`
-
№АртикулНазвание
-
158714075000 TACHOMETER DUKETACHOMETER DUKE
-
258212085000 TRIPMASTER IMO-100R CPL.TRIPMASTER IMO-100R CPL.
-
458212085050 DISPLAY LENS FOR TRIPMDISPLAY LENS FOR TRIPM
-
558212085051 KEYBOARD FOIL F.TRIPM.KEYBOARD FOIL F.TRIPM.
-
60985040003 SELF LOCKING NUT DIN0985-M 4SELF LOCKING NUT DIN0985-M 4
-
70021040003 WASHER DIN9021-A 4,3WASHER DIN9021-A 4,3
-
858212085052 RUBBER GROMMET 15X8-M4X10 (2)RUBBER GROMMET 15X8-M4X10 (2)
-
958211001063 FOAM 4X9MM PER METERFOAM 4X9MM PER METER
-
1149111425000 BULB 12V 1,2W (W2X4,6D)BULB 12V 1,2W (W2X4,6D)
-
1231008008000 RUBBER GROMMET BLACKRUBBER GROMMET BLACK
-
130134070003 WASHER DIN0134- 7,4WASHER DIN0134- 7,4
-
140934050003 HEXAGON NUT DIN0934-M 5HEXAGON NUT DIN0934-M 5
-
1658311054000 FOAM RUBBER RING 81X97X10FOAM RUBBER RING 81X97X10
-
2058214070100 COCKPIT COVER ADVENTURECOCKPIT COVER ADVENTURE
-
2158214070150 BORDER PROTEC.BORDER PROTEC.
-
230587060001 HH CAP NUT DIN1587-M 6 BLACKHH CAP NUT DIN1587-M 6 BLACK
-
2456032005100 WASHER 6X17X1,5 BLACKWASHER 6X17X1,5 BLACK
-
2558211078100 WIRING HAR. F. CONTROLSWIRING HAR. F. CONTROLS
-
2758212083000 CONTRAST POTENTIOMETERCONTRAST POTENTIOMETER
-
3058411066000 IGNITION LOCK (EURO) (4 SWITCH POSITIONS)IGNITION LOCK (EURO) (4 SWITCH POSITIONS)
-
3058411066100 IGNITION LOCK LC4 (USA/AUS) (3 SWITCH POSITIONS)IGNITION LOCK LC4 (USA/AUS) (3 SWITCH POSITIONS)
-
310912080103 AH SCREW DIN912 M8X10AH SCREW DIN912 M8X10
-
3258212084000 SENSOR CABLE CPLSENSOR CABLE CPL
-
330985040123 FLAT HEAD SCREW DIN7985-M 4X12FLAT HEAD SCREW DIN7985-M 4X12
-
3558214050151 BRACKET F. SENSORBRACKET F. SENSOR
-
3658214069050 SENSOR MAGNETSENSOR MAGNET
-
3855011022000 CLAMP 8/8MMCLAMP 8/8MM
-
3944011076100 CABLE TIE 100MMCABLE TIE 100MM
-
3944011076200 CABLE TIE 200MMCABLE TIE 200MM
-
4058011021300 H.BEAM INDICATOR LIGHT BLUEH.BEAM INDICATOR LIGHT BLUE
-
4158011023300 NEUTRAL INDIC. LIGHT GREENNEUTRAL INDIC. LIGHT GREEN
-
4258011022400 TEMPERATURE WARN. LIGHT REDTEMPERATURE WARN. LIGHT RED
-
4358011024200 FLASHER INDICATOR LIGHT GREENFLASHER INDICATOR LIGHT GREEN
-
440799070000 TAB WASHER DIN6799-RS 7,0TAB WASHER DIN6799-RS 7,0
