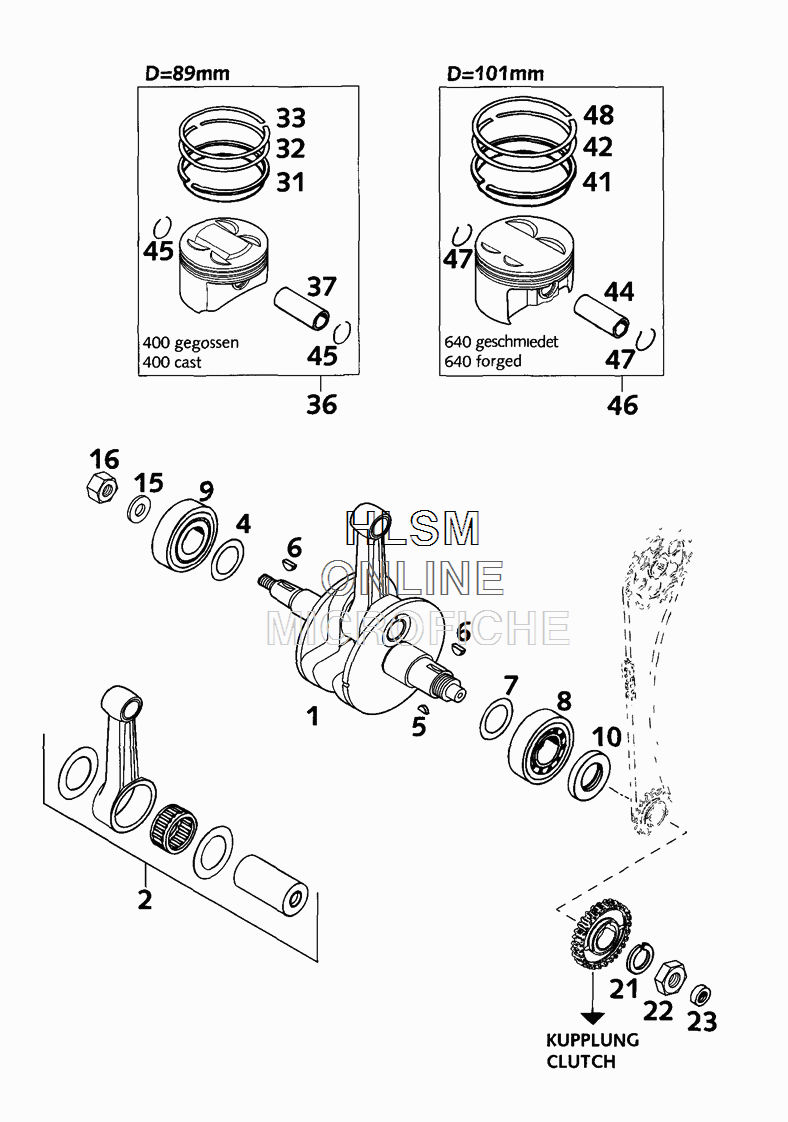

CRANKSHAFT W/ PISTON для Ktm LC4 640 Adventure R - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    58430018100 CRANKSHAFT CPL. (STROKE 78MM)
    CRANKSHAFT CPL. (STROKE 78MM)
  • 2
    58330015044 CONNECTING ROD REPAIR SET 141.5MM
    CONNECTING ROD REPAIR SET 141.5MM
  • 4
    56530081000 SHIM WASHER 36X48X0,10
    SHIM WASHER 36X48X0,10
  • 4
    56530081100 SHIM WASHER 36X48X0,15
    SHIM WASHER 36X48X0,15
  • 4
    56530081300 SHIM WASHER 36X48X0,30
    SHIM WASHER 36X48X0,30
  • 5
    0888030050 WOODRUFF KEY DIN6888-3X5X13
    WOODRUFF KEY DIN6888-3X5X13
  • 6
    6946005 WOODRUFF KEY 5X6,5 HARDED
    WOODRUFF KEY 5X6,5 HARDED
  • 7
    56030081000 THRUST WASHER 30X42X0,1
    THRUST WASHER 30X42X0,1
  • 7
    56030081100 THRUST WASHER 30X42X0,15
    THRUST WASHER 30X42X0,15
  • 7
    56030081200 THRUST WASHER 30X42X0,3
    THRUST WASHER 30X42X0,3
  • 8
    58030082000 CYL.ROLLER BEARING NJ 306 C3
    CYL.ROLLER BEARING NJ 306 C3
  • 9
    56530123000 CYLINDER ROLLER BEARING NJ 207
    CYLINDER ROLLER BEARING NJ 207
  • 10
    0760304771 SHAFT SEAL RING 30X47X7 VITON
    SHAFT SEAL RING 30X47X7 VITON
  • 15
    58330095000 STEEL WASHER 16 X 30 X 3
    STEEL WASHER 16 X 30 X 3
  • 16
    58430028000 HEX NUT M16X1,25 L/S
    HEX NUT M16X1,25 L/S
  • 21
    58030019000 LOCKING RING VSK 20
    LOCKING RING VSK 20
  • 22
    0936200155 HEXAGON NUT DIN0936-M20X1,5
    HEXAGON NUT DIN0936-M20X1,5
  • 23
    0760122270 SHAFT SEAL RING 12 X 22 X 7 B
    SHAFT SEAL RING 12 X 22 X 7 B
  • 41
    58330031300 OIL SCRAPER RING 101X2,5
    OIL SCRAPER RING 101X2,5
  • 42
    58330932100 TAP.COMPR.PISTON RING 101X1,25
    TAP.COMPR.PISTON RING 101X1,25
  • 44
    58330833000 PISTON PIN 22 X 13 X 60
    PISTON PIN 22 X 13 X 60
  • 45
    58030074100 CIRCLIP C 22 X 1,5
    CIRCLIP C 22 X 1,5
  • 46
    58430007000I PISTON I CPL.101MM FORGED
    PISTON I CPL.101MM FORGED
  • 46
    58430007000II PISTON II 101MM FORGED
    PISTON II 101MM FORGED
  • 47
    58430074000 CIRCLIP 22 X 1,6
    CIRCLIP 22 X 1,6
  • 48
    58430032000 L-RING 101X93,5X1,5
    L-RING 101X93,5X1,5
