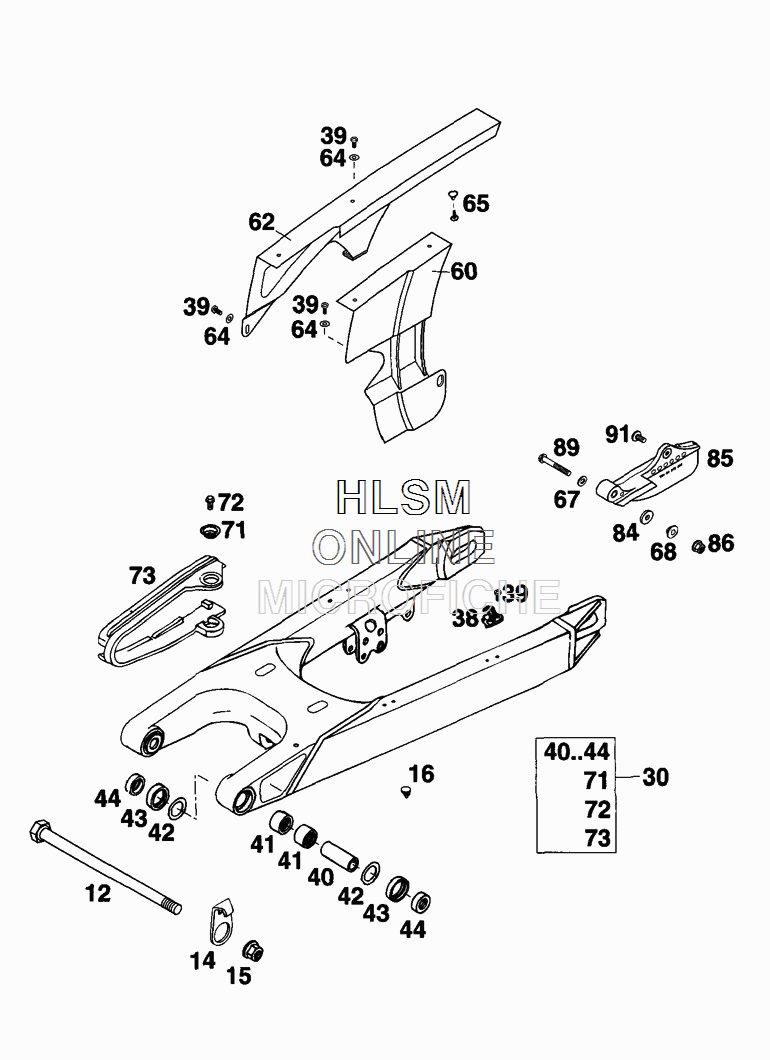

SWINGARM W/ CHAIN GUARD для Ktm LC4 640 Adventure R - 2001 года выпуска

‹-+›
  • №
    Артикул
    Название
  • 12
    54603014000 SWINGARM BOLT 15X250
    SWINGARM BOLT 15X250
  • 14
    50230211000 BRAKE HOSE GUIDE
    BRAKE HOSE GUIDE
  • 15
    54603015000 SELF LOCKING NUT M14X1,5 W5=19
    SELF LOCKING NUT M14X1,5 W5=19
  • 16
    54403135000 PLASTIC CAP SFL10
    PLASTIC CAP SFL10
  • 30
    58404030044 SWINGARM CPL. L=567MM
    SWINGARM CPL. L=567MM
  • 38
    54611076100 RETAIN.CLAMP FOR BRAKE HOSE
    RETAIN.CLAMP FOR BRAKE HOSE
  • 39
    0010050103 SPECIAL SCREW M 5,0X10
    SPECIAL SCREW M 5,0X10
  • 40
    50203081700 BEARING SLEEVE 15X20X38,7
    BEARING SLEEVE 15X20X38,7
  • 41
    59004031000 NEEDLE BUSH HK2012V
    NEEDLE BUSH HK2012V
  • 42
    59004033000 STOP DISK 22,2X31,7X0,8
    STOP DISK 22,2X31,7X0,8
  • 43
    0760253270 SHAFT SEAL RING 25X32X7
    SHAFT SEAL RING 25X32X7
  • 44
    54603090000 BUCKET F.SHAFTSEALRING 15X25X9
    BUCKET F.SHAFTSEALRING 15X25X9
  • 60
    58307060000 CHAINGUARD SMALL
    CHAINGUARD SMALL
  • 62
    58307060150 CHAINGUARD LARGE
    CHAINGUARD LARGE
  • 64
    0125050003 WASHER DIN0125-A 5,0
    WASHER DIN0125-A 5,0
  • 65
    20012062055 HOLLOW RIVET TWO PARTS
    HOLLOW RIVET TWO PARTS
  • 67
    0125060003 WASHER DIN0125-A 6,4
    WASHER DIN0125-A 6,4
  • 68
    58404060050 WASHER CHAINGUARD 6,5X10X16X6
    WASHER CHAINGUARD 6,5X10X16X6
  • 71
    72210079000 BUCKET
    BUCKET
  • 72
    0015060103 HH COLLAR SCREW M 6X10 WS=8
    HH COLLAR SCREW M 6X10 WS=8
  • 73
    58307073000 CHAIN SLIDING GUARD DUKE
    CHAIN SLIDING GUARD DUKE
  • 84
    50232050001 STEEL WASHER 6X17X3
    STEEL WASHER 6X17X3
  • 85
    58404070000 CHAIN GUIDE CPL. REAR LC4
    CHAIN GUIDE CPL. REAR LC4
  • 86
    56509064100 SELF LOCKING NUT M6 10.9
    SELF LOCKING NUT M6 10.9
  • 89
    0015060503 HH COLLAR SCREW M 6X50 WS=8
    HH COLLAR SCREW M 6X50 WS=8
  • 91
    0014060103 HH COLLAR SCREW M 6X10 WS=8
    HH COLLAR SCREW M 6X10 WS=8
