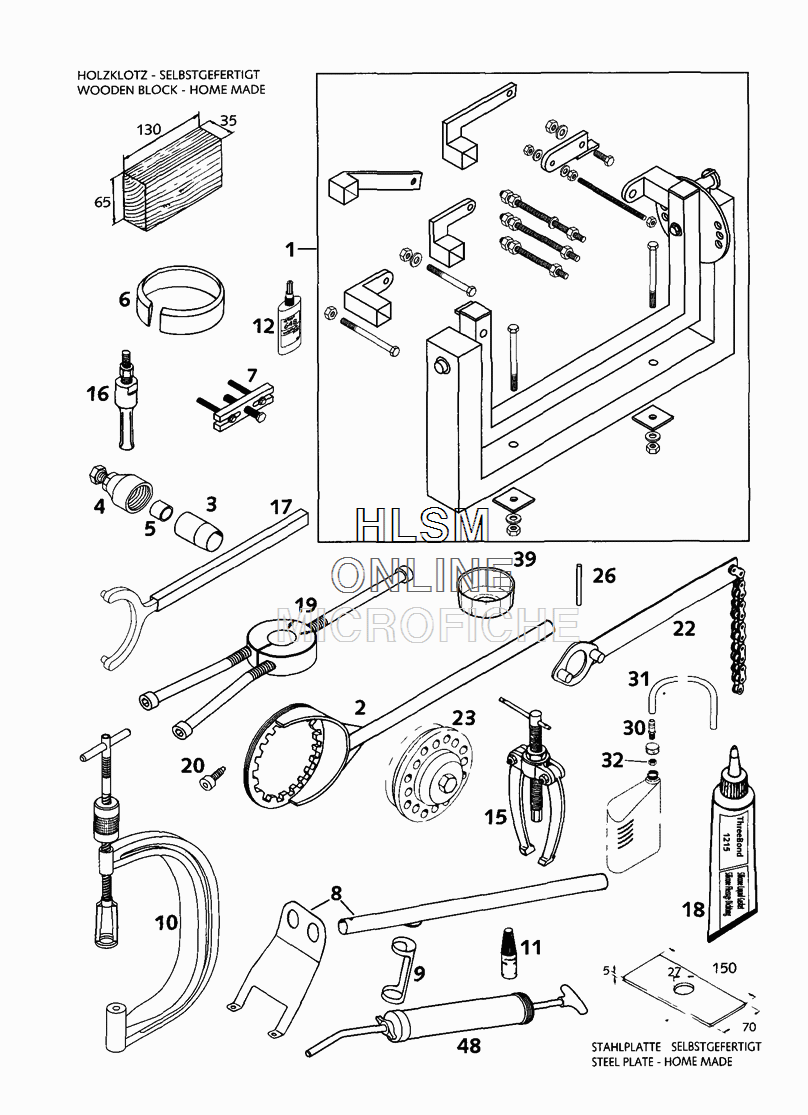

SPECIAL TOOL для Ktm LC4 640 Adventure R - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    56012001000 UNIVERSAL MOUNTING RACK
    UNIVERSAL MOUNTING RACK
  • 2
    58329003000 CLUTCH HOLDER D=160MM
    CLUTCH HOLDER D=160MM
  • 3
    58012005025 MOUNTING SLEEVE D=25MM (FOR CRANKSHAFT SEAL L/S)
    MOUNTING SLEEVE D=25MM (FOR CRANKSHAFT SEAL L/S)
  • 4
    58429009000 MAGNETO EXTRACTOR
    MAGNETO EXTRACTOR
  • 5
    58429031000 PROTECTOR CAP F. CRANKSHAFT M16
    PROTECTOR CAP F. CRANKSHAFT M16
  • 6
    58012015101 PISTON RING COMPRESSOR D=101MM
    PISTON RING COMPRESSOR D=101MM
  • 7
    59029021000 EXTRACT.PRIM.GEAR-INNER CLUTCH (F.PRIM.GEAR D.INNER CLUTCH)
    EXTRACT.PRIM.GEAR-INNER CLUTCH (F.PRIM.GEAR D.INNER CLUTCH)
  • 8
    58012019000 VALVE INSTALLATION KIT
    VALVE INSTALLATION KIT
  • 9
    6276470 PUSH INSERT
    PUSH INSERT
  • 10
    59029019000 VALVE SPRING LEVER
    VALVE SPRING LEVER
  • 11
    6899785 LOCTITE 243 BLUE 6CCM
    LOCTITE 243 BLUE 6CCM
  • 12
    58429059000 LOCTITE 648 GREEN 20ML
    LOCTITE 648 GREEN 20ML
  • 15
    15112017000 BEARING EXTRACTOR
    BEARING EXTRACTOR
  • 16
    15112018000 INTERN.BEAR.PULLER 12-16 MM
    INTERN.BEAR.PULLER 12-16 MM
  • 16
    15112018100 INTERN.BEAR.PULLER 18-23 MM
    INTERN.BEAR.PULLER 18-23 MM
  • 17
    58429012000 HOLDING WRENCH FOR WHEEL
    HOLDING WRENCH FOR WHEEL
  • 18
    309098 SILICON GASKET THREE-BOND
    SILICON GASKET THREE-BOND
  • 19
    58429037043 MOUNTING TOOL. F. BEARING NJ 207
    MOUNTING TOOL. F. BEARING NJ 207
  • 19
    58429037040 MOUNTING TOOL HEARING NJ 306
    MOUNTING TOOL HEARING NJ 306
  • 20
    58030080000 LOCATING SCREW M8
    LOCATING SCREW M8
  • 22
    51012012000 HOLDING SPANNER FOR SPROCKET
    HOLDING SPANNER FOR SPROCKET
  • 23
    54629027000 RIVETTING TOOL FOR CLUTCH
    RIVETTING TOOL FOR CLUTCH
  • 26
    58029026007 LIMIT PLUG GAUGE F. VALVE GUIDE (D=7, 05MM)
    LIMIT PLUG GAUGE F. VALVE GUIDE (D=7, 05MM)
  • 30
    59030022000 BLEEDER FLANGE M8 WS=10
    BLEEDER FLANGE M8 WS=10
  • 31
    31007107001 PVC-HOSE 6X9 MM PER METER
    PVC-HOSE 6X9 MM PER METER
  • 32
    0934080003 HEXAGON NUT DIN0934-M 8
    HEXAGON NUT DIN0934-M 8
  • 39
    58329039000 WRENCH SCREW FILTER
    WRENCH SCREW FILTER
  • 48
    58429048000 INJECTION FOR FRONT PIPE (DEAERATE,FOR FRONT PIPE)
    INJECTION FOR FRONT PIPE (DEAERATE,FOR FRONT PIPE)
