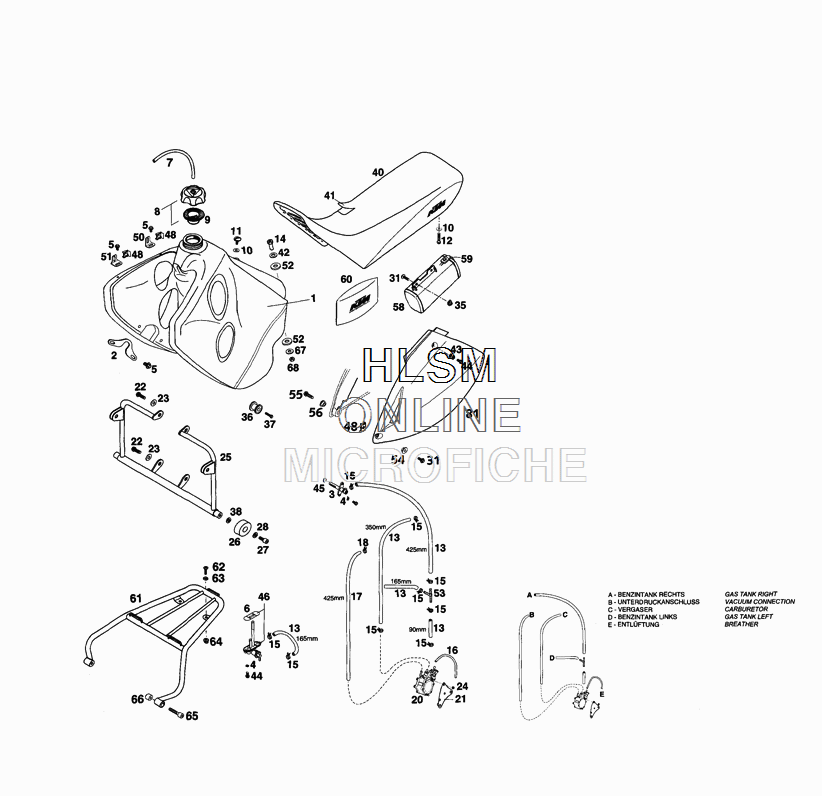

TANK - SEAT - COVER для Ktm LC4 640 Adventure R - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    5820701304490 FUEL TANK 30LI. (SILVER)
    FUEL TANK 30LI. (SILVER)
  • 2
    58507023000 BRACKET FOR 30 LITER TANK
    BRACKET FOR 30 LITER TANK
  • 3
    58507003000 FUEL COCK CPL. SMALL RALLYE
    FUEL COCK CPL. SMALL RALLYE
  • 4
    0603061001 CU-SEAL RING DIN7603- 6X10X1
    CU-SEAL RING DIN7603- 6X10X1
  • 5
    0014060103 HH COLLAR SCREW M 6X10 WS=8
    HH COLLAR SCREW M 6X10 WS=8
  • 6
    58307106100 GASKET FUEL COCK MIKUNI
    GASKET FUEL COCK MIKUNI
  • 7
    310071070 PVC-HOSE 6X9 MM PER METER
    PVC-HOSE 6X9 MM PER METER
  • 8
    59007008044 FILLER CAP CPL. SMALL EUROPE
    FILLER CAP CPL. SMALL EUROPE
  • 9
    59007009000 GASKET FOR FILLER CAP HIGH
    GASKET FOR FILLER CAP HIGH
  • 10
    0125060003 WASHER DIN0125-A 6,4
    WASHER DIN0125-A 6,4
  • 11
    58007044000 OVAL HEAD SCREW M6X15 250/4T
    OVAL HEAD SCREW M6X15 250/4T
  • 12
    58407011000 SCREW FOR SEAT
    SCREW FOR SEAT
  • 13
    54435024001 HOSE ID 7,5 PER METER
    HOSE ID 7,5 PER METER
  • 14
    58307014000 SPECIAL NUT M8
    SPECIAL NUT M8
  • 15
    58007117000 YDNAC-KLAMMER 10107 10MM
    YDNAC-KLAMMER 10107 10MM
  • 16
    31007007001 PVC-HOSE 5 X 8 MM
    PVC-HOSE 5 X 8 MM
  • 17
    58205035001 HOSE 6X10 PER METER
    HOSE 6X10 PER METER
  • 18
    58007017000 YDNAC CLAMP 10101 (9MM)
    YDNAC CLAMP 10101 (9MM)
  • 20
    58312093000 FUEL PUMP MIKUNI RALLYE
    FUEL PUMP MIKUNI RALLYE
  • 21
    58212071000 BRACKET FOR FUEL PUMP
    BRACKET FOR FUEL PUMP
  • 22
    0015060203 HH COLLAR SCREW M 6X20 WS=8
    HH COLLAR SCREW M 6X20 WS=8
  • 23
    0021060003 WASHER DIN9021-A 6,4
    WASHER DIN9021-A 6,4
  • 24
    0985050003 SELF LOCKING NUT DIN0985-M 5
    SELF LOCKING NUT DIN0985-M 5
  • 25
    5851209200090 BRACKET 30LT TANK SILVER
    BRACKET 30LT TANK SILVER
  • 26
    50107015000 TANKROLL 13X36X16
    TANKROLL 13X36X16
  • 27
    0912060163 AH SCREW DIN0912-M 6X16
    AH SCREW DIN0912-M 6X16
  • 28
    0125060003 WASHER DIN0125-A 6,4
    WASHER DIN0125-A 6,4
  • 31
    0015060163 HH COLLAR SCREW M 6X16 WS=8
    HH COLLAR SCREW M 6X16 WS=8
  • 35
    50235033300 SNAP-NUT HOLDER M6 KP142
    SNAP-NUT HOLDER M6 KP142
  • 36
    58307113250 TANK BUSHING CPL. 12 X 34 X 25
    TANK BUSHING CPL. 12 X 34 X 25
  • 37
    0015060253 HH COLLAR SCREW M 6X25 WS=8
    HH COLLAR SCREW M 6X25 WS=8
  • 38
    12011016000 WASHER 6X12X3
    WASHER 6X12X3
  • 40
    58207040400 SEAT
    SEAT
  • 41
    58207040450 SEAT COVER SILVER
    SEAT COVER SILVER
  • 42
    58307019000 WASHER 10,5 X 25 X 1,5
    WASHER 10,5 X 25 X 1,5
  • 43
    50233041000 PAIR OF WASHERS M6 NORDLOCK
    PAIR OF WASHERS M6 NORDLOCK
  • 44
    0015060123 HH COLLAR SCREW M 6X12 WS=8
    HH COLLAR SCREW M 6X12 WS=8
  • 45
    55007006200 O-RING 11X1,8 NBR 70
    O-RING 11X1,8 NBR 70
  • 46
    51107004000 FUEL COCK CPL.MIKUNI CK-69 (ONE CONNECTION)
    FUEL COCK CPL.MIKUNI CK-69 (ONE CONNECTION)
  • 48
    54603048100 RANGE CHANGE METAL NUT M6
    RANGE CHANGE METAL NUT M6
  • 50
    58211001060 BRACKET L/S TOP
    BRACKET L/S TOP
  • 50
    58211001061 BRACKET R/S TOP
    BRACKET R/S TOP
  • 51
    58211001062 BRACKET BELOW FOR MASK
    BRACKET BELOW FOR MASK
  • 52
    51005067100 INSOLATE WASHER 12X28X3
    INSOLATE WASHER 12X28X3
  • 53
    58007015000 T-CONNECTOR FOR FUEL LINE
    T-CONNECTOR FOR FUEL LINE
  • 54
    50308052000 BUSH FOR SPOILER 6X11X16X5
    BUSH FOR SPOILER 6X11X16X5
  • 55
    0015060203 HH COLLAR SCREW M 6X20 WS=8
    HH COLLAR SCREW M 6X20 WS=8
  • 56
    50308052000 BUSH FOR SPOILER 6X11X16X5
    BUSH FOR SPOILER 6X11X16X5
  • 58
    58012058000 TOOL BOX CPL.
    TOOL BOX CPL.
  • 59
    58012058050 RUBBER FOR TOOL BOX
    RUBBER FOR TOOL BOX
  • 60
    58329099000 TOOL SET
    TOOL SET
  • 61
    5841201020030 BAGGAGE CARRIER BLACK MIL
    BAGGAGE CARRIER BLACK MIL
  • 62
    0991060203 FLAT HEAD SCREW DIN7991-M 6X20
    FLAT HEAD SCREW DIN7991-M 6X20
  • 63
    40006006000 WASHER 6MM
    WASHER 6MM
  • 64
    56509064100 SELF LOCKING NUT M6 10.9
    SELF LOCKING NUT M6 10.9
  • 65
    0912060353 AH SCREW DIN0912-M 6X35
    AH SCREW DIN0912-M 6X35
  • 66
    58412011100 BUSH FOR BAGGAGE CARRIER
    BUSH FOR BAGGAGE CARRIER
  • 67
    0021080003 WASHER DIN9021-A 8,4
    WASHER DIN9021-A 8,4
  • 68
    0934080003 HEXAGON NUT DIN0934-M 8
    HEXAGON NUT DIN0934-M 8
  • 81
    5840804100004 SIDE COVER L/S ORANGE (ORANGE)
    SIDE COVER L/S ORANGE (ORANGE)
  • 81
    5840804210004 SIDE COVER L(S ORANGE (ORANGE)
    SIDE COVER L(S ORANGE (ORANGE)
