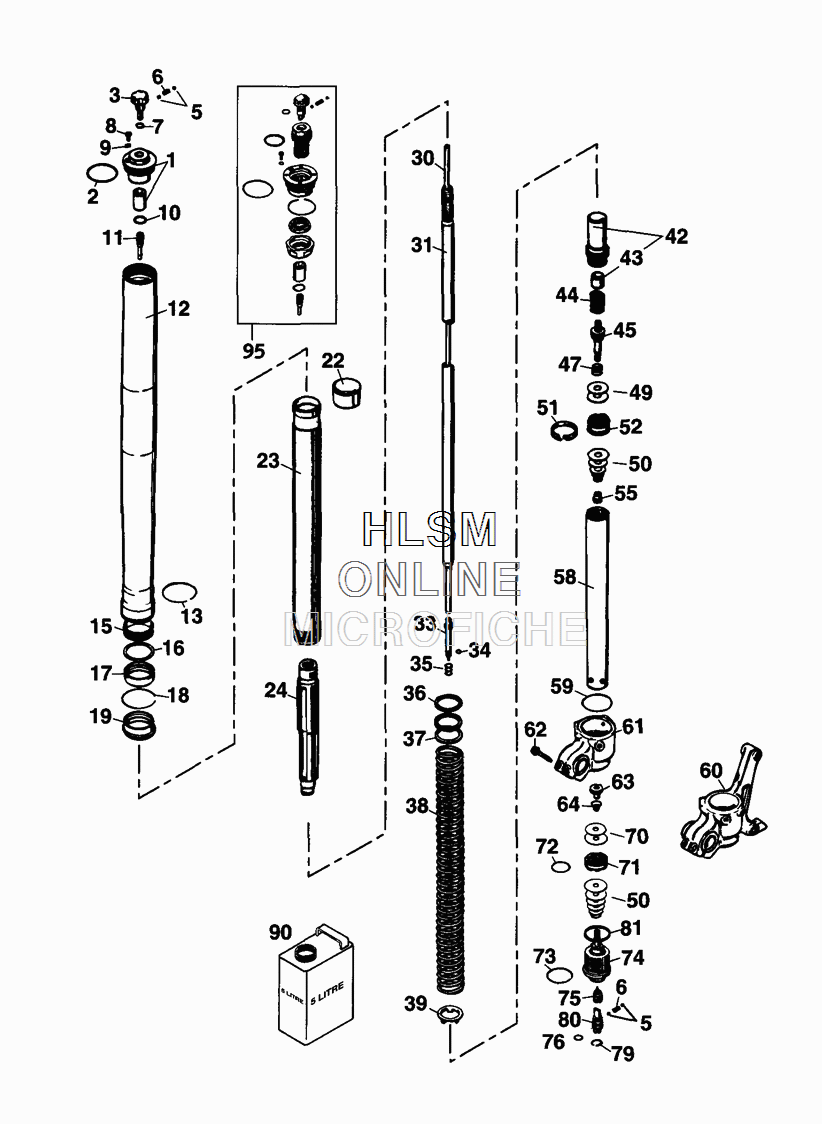

FORK LEGS для Ktm LC4 640 Adventure R - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    48600020S SREW CAP+BUSH M51X1,5
    SREW CAP+BUSH M51X1,5
  • 2
    46810016 O-RING NBR 48X2
    O-RING NBR 48X2
  • 3
    48600018 KNOB REBOUNG ADJUSTER
    KNOB REBOUNG ADJUSTER
  • 5
    40540603 STEEL BALL D=3MM
    STEEL BALL D=3MM
  • 6
    48600028 SPRING D=2,9 L=7,9
    SPRING D=2,9 L=7,9
  • 7
    48600044 O-RING NBR 6X1,5
    O-RING NBR 6X1,5
  • 8
    48600058 VENT SCREW M4X6
    VENT SCREW M4X6
  • 9
    48600009 O-RING NBR 3,7X1,6
    O-RING NBR 3,7X1,6
  • 10
    48600043 O-RING NBR 12X1,5
    O-RING NBR 12X1,5
  • 11
    48600019 HOLDER F.ADJUSTMENT TUBE D=4MM
    HOLDER F.ADJUSTMENT TUBE D=4MM
  • 12
    48600001 OUTER TUBE L=577MM D=54/60MM
    OUTER TUBE L=577MM D=54/60MM
  • 13
    48600016 GUIDING RING D=58MM
    GUIDING RING D=58MM
  • 15
    48600007 DU-BUSH 48 X 52 X 20
    DU-BUSH 48 X 52 X 20
  • 16
    48600013 SUPPORT RING 50 X 57,6 X 1,5
    SUPPORT RING 50 X 57,6 X 1,5
  • 17
    48600057 OIL SEAL RING 48 X 57,7 X 9,5
    OIL SEAL RING 48 X 57,7 X 9,5
  • 18
    48600070 LOCK WASHER SB58
    LOCK WASHER SB58
  • 19
    48600040 DUST STRIPPER D=48MM
    DUST STRIPPER D=48MM
  • 22
    48600008 DU-BUSH 47 X 49 X 20
    DU-BUSH 47 X 49 X 20
  • 23
    48600002 INNER TUBE D=48MM L=590MM
    INNER TUBE D=48MM L=590MM
  • 24
    48600155S HYDR.STOP L=200MM D=31,8 KPL.
    HYDR.STOP L=200MM D=31,8 KPL.
  • 30
    48600014 ADJUSTMENT TUBE L=512MM
    ADJUSTMENT TUBE L=512MM
  • 31
    48600023 PISTONROD D=14MM L=546MM M11X1
    PISTONROD D=14MM L=546MM M11X1
  • 33
    48600003 REBOUND NEEDLE
    REBOUND NEEDLE
  • 34
    48600046 O-RING NBR 3X1,5
    O-RING NBR 3X1,5
  • 35
    48600033 SPRING REBOUND NEEDLE C=4N/MM
    SPRING REBOUND NEEDLE C=4N/MM
  • 36
    48600036 SPACER 42X26,5X2,5
    SPACER 42X26,5X2,5
  • 36
    48600037 SPACER 42X26,5X5
    SPACER 42X26,5X5
  • 37
    48600039 RING 26,5X42X1,5
    RING 26,5X42X1,5
  • 38
    91410008 SPRING 4,8N/MM SET D=5,25MM
    SPRING 4,8N/MM SET D=5,25MM
  • 39
    48600021 INTERM. RING 26,2 X 43 X 3
    INTERM. RING 26,2 X 43 X 3
  • 42
    43570132S SCREW SLEEVE M29,3X1+BUSH
    SCREW SLEEVE M29,3X1+BUSH
  • 43
    46810651 DU-BUSH 14X16X12
    DU-BUSH 14X16X12
  • 44
    48600015 REBOUND SPRING D=14,6MM L=22MM
    REBOUND SPRING D=14,6MM L=22MM
  • 45
    48600025 TAP REBOUND
    TAP REBOUND
  • 47
    48600059 SPRING CHECK VALVE D=0,25
    SPRING CHECK VALVE D=0,25
  • 49
    48600062 CHECK VALVE 8X24X0,1
    CHECK VALVE 8X24X0,1
  • 50
    48600116 SHIM 6X24X0,1 DELTA
    SHIM 6X24X0,1 DELTA
  • 50
    40540401 SHIM 6X14X0,1
    SHIM 6X14X0,1
  • 50
    40540402 SHIM 6X16X0,1
    SHIM 6X16X0,1
  • 50
    40540403 SHIM 6X18X0,1
    SHIM 6X18X0,1
  • 50
    40541402 SHIM 6X11X0,2
    SHIM 6X11X0,2
  • 50
    40540405 SHIM 6X14X0,15
    SHIM 6X14X0,15
  • 50
    40540406 SHIM 6X16X0,15
    SHIM 6X16X0,15
  • 50
    40540414 SHIM 6X16X0,25
    SHIM 6X16X0,25
  • 50
    40540447 SHIM 6X10X0,3
    SHIM 6X10X0,3
  • 50
    48600063 SHIM 6X24X0,1
    SHIM 6X24X0,1
  • 50
    48600064 SHIM 6X22X0,1
    SHIM 6X22X0,1
  • 50
    48600065 SHIM 6X20X0,1
    SHIM 6X20X0,1
  • 50
    40540415 SHIM 6X18X0,25
    SHIM 6X18X0,25
  • 51
    48600060 PISTON RING 5X1X84
    PISTON RING 5X1X84
  • 52
    48600042 PISTON REBOUND
    PISTON REBOUND
  • 55
    40540486 NUT M6X0,5 REBOUND
    NUT M6X0,5 REBOUND
  • 58
    48600081 TUBE 29,3X1X390 D=8,5MM
    TUBE 29,3X1X390 D=8,5MM
  • 59
    48600048 O-RING NBR 46 X 2
    O-RING NBR 46 X 2
  • 60
    43570159 AXLE CLAMP L/S RALLYE
    AXLE CLAMP L/S RALLYE
  • 61
    43570158 AXLE CLAMP R/S RALLYE
    AXLE CLAMP R/S RALLYE
  • 62
    50600061 HH COLLAR SCREW M 8X30
    HH COLLAR SCREW M 8X30
  • 63
    40541241 CHECK VALVE NUT M6X0,5
    CHECK VALVE NUT M6X0,5
  • 64
    40541278 SPRING CHECK VALVE D=0,5MM
    SPRING CHECK VALVE D=0,5MM
  • 70
    48600061 CHECK VALVE 8X24X0,4
    CHECK VALVE 8X24X0,4
  • 71
    48600047 PISTON COMPRESSION
    PISTON COMPRESSION
  • 72
    46811499 O-RING NBR 21X2
    O-RING NBR 21X2
  • 73
    35480320 O-RING NBR 24X2
    O-RING NBR 24X2
  • 74
    486000275 TAP COMPRESSION
    TAP COMPRESSION
  • 75
    48600035 NEEDLE COMPRESSION M10X1
    NEEDLE COMPRESSION M10X1
  • 76
    48600049 O-RING NBR 8X2
    O-RING NBR 8X2
  • 79
    48600051 LOCK WASHER RB12
    LOCK WASHER RB12
  • 80
    48600034 COMPRESSION ADJ. SCREW
    COMPRESSION ADJ. SCREW
  • 81
    48600004 COPPER WASHER 29,5X33,5X1
    COPPER WASHER 29,5X33,5X1
  • 90
    40540882 FORKOIL REZ 71 SAE 5
    FORKOIL REZ 71 SAE 5
