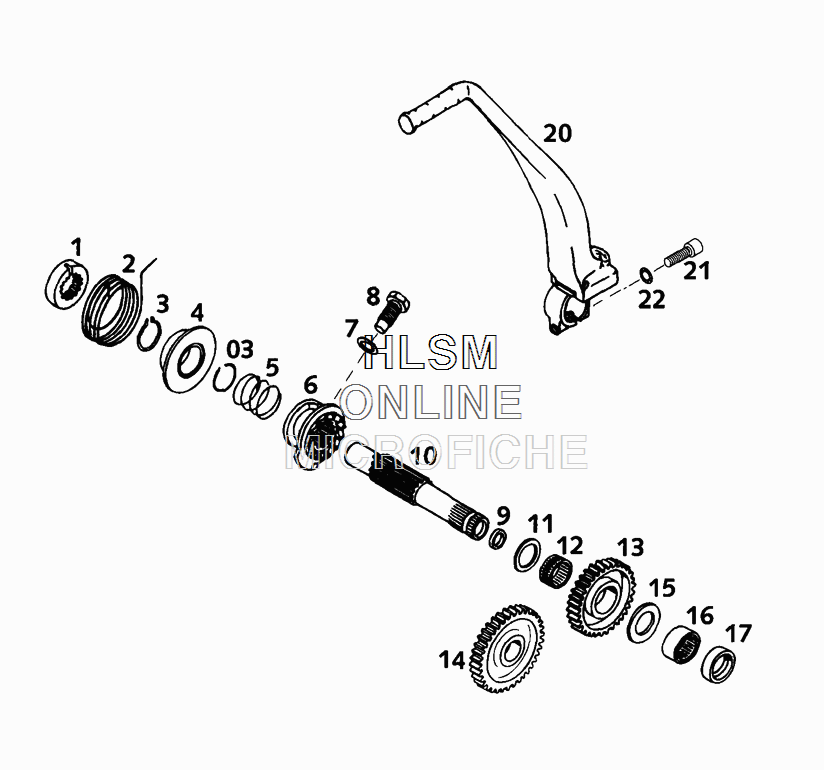

KICKSTARTER для Ktm LC4 640 Adventure R - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    58033026200 DRIVING HUB
    DRIVING HUB
  • 2
    58033020000 KICKSTARTER SPRING
    KICKSTARTER SPRING
  • 3
    52033096000 LOCK RING DIN0471-25X1,64SD
    LOCK RING DIN0471-25X1,64SD
  • 03
    52033090100 LOCK RING 25X1,2
    LOCK RING 25X1,2
  • 4
    58033037000 SPRING BUSHING
    SPRING BUSHING
  • 5
    58033028000 RATCHET GEAR SPRING 1,2 MM
    RATCHET GEAR SPRING 1,2 MM
  • 6
    58033023200 RATCHET GEAR 24-T
    RATCHET GEAR 24-T
  • 7
    58038022000 CU-SEAL RING DIN7603-12X18X1,5
    CU-SEAL RING DIN7603-12X18X1,5
  • 8
    58033033000 STOP SCREW M12X1,5
    STOP SCREW M12X1,5
  • 9
    54632090000 SEAL RING DH/GR 12X16X3
    SEAL RING DH/GR 12X16X3
  • 10
    58033021300 KICKSTARTER SHAFT
    KICKSTARTER SHAFT
  • 11
    58033031000 STOP DISK 22 X 30 X 1,5
    STOP DISK 22 X 30 X 1,5
  • 12
    56533098000 NEEDLE BEARING K 22 X 26 X 13H
    NEEDLE BEARING K 22 X 26 X 13H
  • 13
    58033022700 KICKSTARTER GEAR 35-T (LOCKING TOOTH 24-T)
    KICKSTARTER GEAR 35-T (LOCKING TOOTH 24-T)
  • 14
    58033024000 INTERMEDIATE GEAR 37-T
    INTERMEDIATE GEAR 37-T
  • 15
    56532012000 STOP DISK 22,2 X 35 X 2
    STOP DISK 22,2 X 35 X 2
  • 16
    58033090000 NEEDLE BEARING RNA 4903
    NEEDLE BEARING RNA 4903
  • 17
    0760223270 SHAFT SEAL RING 22X32X7 BSL
    SHAFT SEAL RING 22X32X7 BSL
  • 20
    58333036044 KICKSTARTER CPL. ALU
    KICKSTARTER CPL. ALU
  • 21
    0015080253 HH COLLAR SCREW M 8X25 WS=10
    HH COLLAR SCREW M 8X25 WS=10
  • 22
    36003014000 LOCK WASHER 8MM
    LOCK WASHER 8MM
