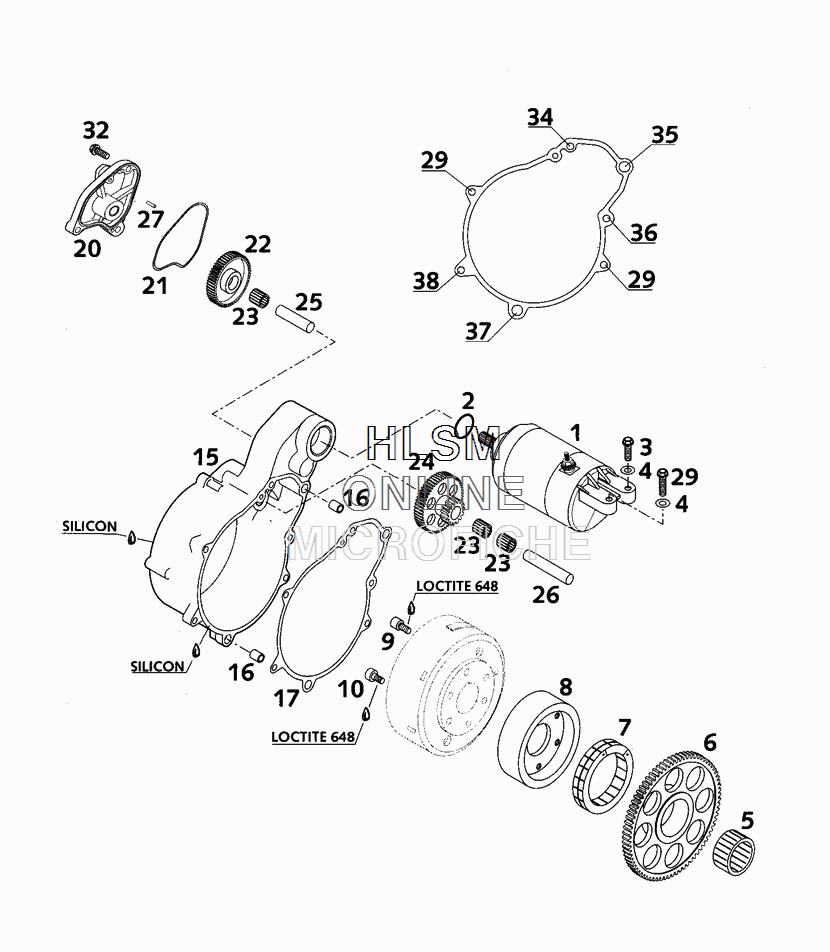

ELECTRIC STARTER для Ktm LC4 640 Adventure R - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    58440001000 E-STARTER ENGINE CPL.
    E-STARTER ENGINE CPL.
  • 2
    0770250030 O-RING 25,00X3,00 NBR 70
    O-RING 25,00X3,00 NBR 70
  • 3
    0015060203 HH COLLAR SCREW M 6X20 WS=8
    HH COLLAR SCREW M 6X20 WS=8
  • 4
    0125060003 WASHER DIN0125-A 6,4
    WASHER DIN0125-A 6,4
  • 5
    58440090100 NEEDLE BEARING K30 X 37 X 18
    NEEDLE BEARING K30 X 37 X 18
  • 6
    58440020079 FREE-WHEEL-GEAR 79-T
    FREE-WHEEL-GEAR 79-T
  • 7
    58440026000 FREE-WHEEL FWD 332008 BLS
    FREE-WHEEL FWD 332008 BLS
  • 8
    58440025000 FREEWHEEL HUB
    FREEWHEEL HUB
  • 9
    0912060121 AH SCREW DIN0912-M 6X12
    AH SCREW DIN0912-M 6X12
  • 10
    58440098000 AH CENTERING SCREW M6X12,5
    AH CENTERING SCREW M6X12,5
  • 15
    58440010100 STARTER FLANGE BLACK
    STARTER FLANGE BLACK
  • 16
    49030090000 DOWEL 9,8 X 7 X 10
    DOWEL 9,8 X 7 X 10
  • 17
    58440042000 STARTER FLANGE GASKET
    STARTER FLANGE GASKET
  • 20
    58440011100 STARTER COVER BLACK
    STARTER COVER BLACK
  • 21
    58440011050 FORM RING F.STARTER COVER NBR70
    FORM RING F.STARTER COVER NBR70
  • 22
    58440022000 INTERMEDIATE GEAR 52-T
    INTERMEDIATE GEAR 52-T
  • 23
    58440090000 NEEDLE BEARING K10 X 13 X 13
    NEEDLE BEARING K10 X 13 X 13
  • 24
    58440021018 REDUCTION GEAR 55-T/18-Z
    REDUCTION GEAR 55-T/18-Z
  • 25
    58440028000 BEARING BOLT 10 X 38,4
    BEARING BOLT 10 X 38,4
  • 26
    58440029000 BEARING BOLT 10 X 54
    BEARING BOLT 10 X 54
  • 27
    0402040780 NEEDLEROLL. DIN5402 NBR 4 X 7,8
    NEEDLEROLL. DIN5402 NBR 4 X 7,8
  • 29
    0015060253 HH COLLAR SCREW M 6X25 WS=8
    HH COLLAR SCREW M 6X25 WS=8
  • 32
    0015060163 HH COLLAR SCREW M 6X16 WS=8
    HH COLLAR SCREW M 6X16 WS=8
  • 34
    0015060453 HH COLLAR SCREW M 6X45 WS=8
    HH COLLAR SCREW M 6X45 WS=8
  • 35
    0015060503 HH COLLAR SCREW M 6X50 WS=8
    HH COLLAR SCREW M 6X50 WS=8
  • 36
    0015060803 HH COLLAR SCREW M 6X80 WS=8
    HH COLLAR SCREW M 6X80 WS=8
  • 37
    0015060303 HH COLLAR SCREW M 6X30 WS=8
    HH COLLAR SCREW M 6X30 WS=8
  • 38
    0015060953 HH COLLAR SCREW M 6X95 WS=8
    HH COLLAR SCREW M 6X95 WS=8
