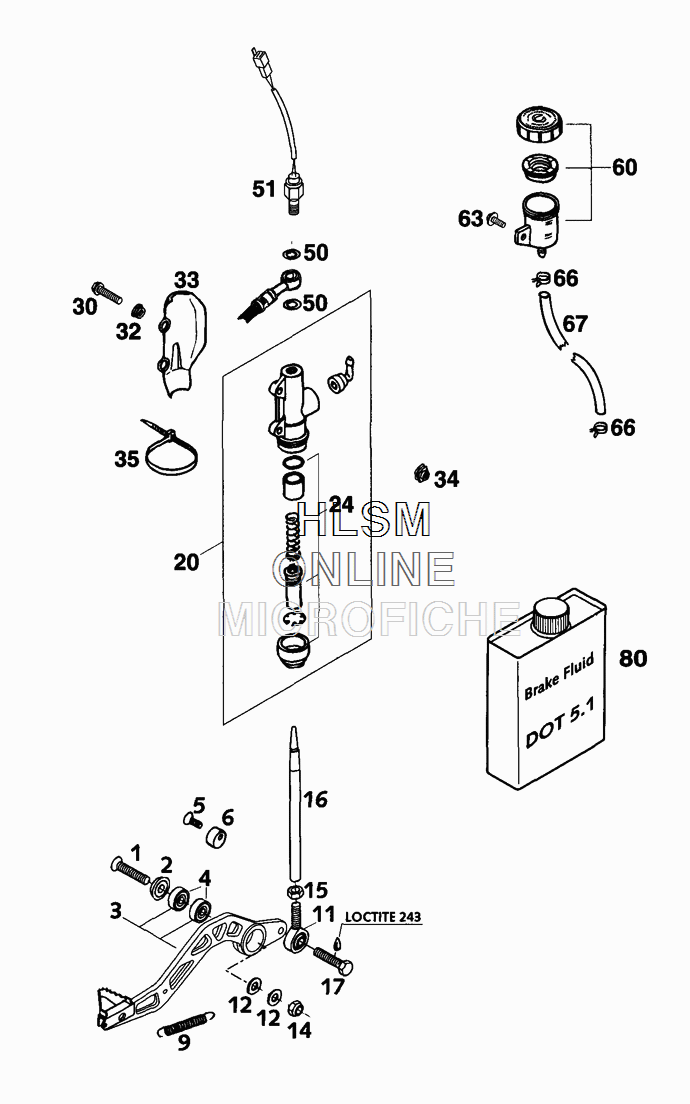

REAR BRAKE CONTROL для Ktm LC4 640 Adventure R - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    0991080353 FLAT HEAD SCREW DIN7991-M 8X35
    FLAT HEAD SCREW DIN7991-M 8X35
  • 2
    58303061000 SPECIAL WASHER ALU 8 X 24 MM
    SPECIAL WASHER ALU 8 X 24 MM
  • 3
    58403070044 FOOT BRAKE LEVER KPL. LC4 2001
    FOOT BRAKE LEVER KPL. LC4 2001
  • 4
    0625006087 GROOVED BALL BEAR. 608 2RS C3
    GROOVED BALL BEAR. 608 2RS C3
  • 5
    0991060203 FLAT HEAD SCREW DIN7991-M 6X20
    FLAT HEAD SCREW DIN7991-M 6X20
  • 6
    58303063000 BRAKE LEVER STOP
    BRAKE LEVER STOP
  • 9
    13003062000 RETURN SPRING
    RETURN SPRING
  • 11
    58303062000 HEIM JOINT M8 W=12MM
    HEIM JOINT M8 W=12MM
  • 12
    0125080003 WASHER DIN0125-A 8,4
    WASHER DIN0125-A 8,4
  • 14
    0985080003 SELF LOCKING NUT DIN0985-M 8
    SELF LOCKING NUT DIN0985-M 8
  • 15
    0934080003 HEXAGON NUT DIN0934-M 8
    HEXAGON NUT DIN0934-M 8
  • 16
    58303068100 PUSH ROD ALU L=178MM
    PUSH ROD ALU L=178MM
  • 17
    0933080223 HH SCREW DIN0933-M 8X22 8.8
    HH SCREW DIN0933-M 8X22 8.8
  • 20
    54513101044 MAIN BRAKE CYLINDER
    MAIN BRAKE CYLINDER
  • 24
    54513150000 REPAIR KIT PISTON 13MM
    REPAIR KIT PISTON 13MM
  • 30
    0015060253 HH COLLAR SCREW M 6X25 WS=8
    HH COLLAR SCREW M 6X25 WS=8
  • 32
    50213161000 COLLAR BUSHING
    COLLAR BUSHING
  • 33
    54513038000 BRAKE CYL. PROTECTOR
    BRAKE CYL. PROTECTOR
  • 34
    50235033300 SNAP-NUT HOLDER M6 KP142
    SNAP-NUT HOLDER M6 KP142
  • 35
    44011076305 CABLE TIE 290MM
    CABLE TIE 290MM
  • 50
    42013226000 CU-SEAL RING DIN7603-10X16X1
    CU-SEAL RING DIN7603-10X16X1
  • 51
    50311051100 BRAKE LIGHT SWITCH REAR
    BRAKE LIGHT SWITCH REAR
  • 60
    54513030044 BRAKE FLUID RESERVOIR
    BRAKE FLUID RESERVOIR
  • 63
    0014060103 HH COLLAR SCREW M 6X10 WS=8
    HH COLLAR SCREW M 6X10 WS=8
  • 66
    58007017000 YDNAC CLAMP 10101 (9MM)
    YDNAC CLAMP 10101 (9MM)
  • 67
    58007016101 HOSE FOR RESERVOIR 6X1,5
    HOSE FOR RESERVOIR 6X1,5
  • 80
    306054 BRAKE FLUID DOT 5.1
    BRAKE FLUID DOT 5.1
