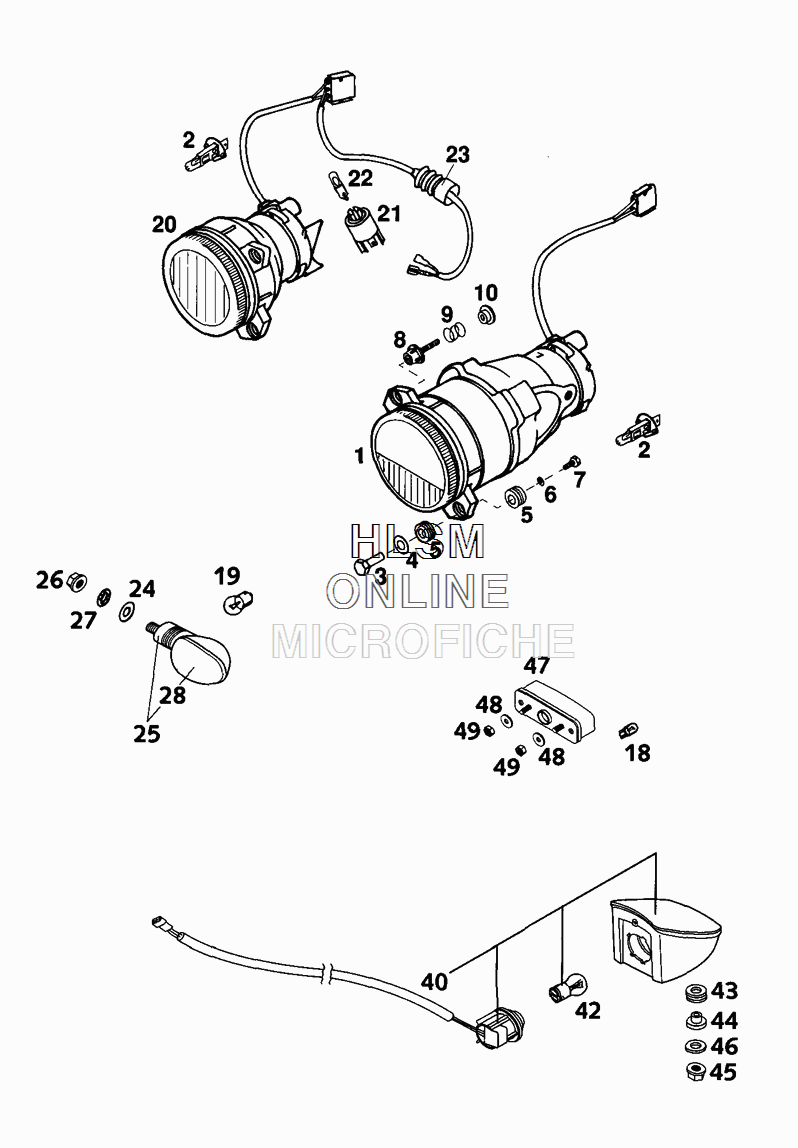

HEAD LIGHT W/ FLASHER - REAR LIGHT для Ktm LC4 640 Adventure R - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    58311010000 HEADLIGHT LOW BEAM DUKE'94 (FOR RIGHT TRAFFIC)
    HEADLIGHT LOW BEAM DUKE'94 (FOR RIGHT TRAFFIC)
  • 2
    58311038000 BULB' H1 12V 55W WHITE (BASE P14,5S)
    BULB' H1 12V 55W WHITE (BASE P14,5S)
  • 3
    58311044000 SPECIAL NUT M5X25 WS=10
    SPECIAL NUT M5X25 WS=10
  • 4
    0125080003 WASHER DIN0125-A 8,4
    WASHER DIN0125-A 8,4
  • 5
    31008060000 RUBBER SLEEVE D=8MM OPEN
    RUBBER SLEEVE D=8MM OPEN
  • 6
    0797050003 TOOTH LOCK WASH. DIN6797-J 5,3
    TOOTH LOCK WASH. DIN6797-J 5,3
  • 7
    0933050123 HH SCREW DIN0933-M 5X12
    HH SCREW DIN0933-M 5X12
  • 8
    58311011000 ADJUSTING SCREW M5X30 CPL.
    ADJUSTING SCREW M5X30 CPL.
  • 9
    12003007052 SPRING L=16MM
    SPRING L=16MM
  • 10
    54603073000 COLLAR BUSHING 5 X 10 X 6 ALU
    COLLAR BUSHING 5 X 10 X 6 ALU
  • 18
    49011435000 BULB 12V 5W (W2,1X9,5D)
    BULB 12V 5W (W2,1X9,5D)
  • 19
    44111015100 BULB 12V 10W (BA15S)
    BULB 12V 10W (BA15S)
  • 20
    58311110000 HEADLIGHT HIGHBEAM DUKE
    HEADLIGHT HIGHBEAM DUKE
  • 21
    58311039000 BULB SOCKET BA9S
    BULB SOCKET BA9S
  • 22
    44111005100 BULB 12V 2W BA9S
    BULB 12V 2W BA9S
  • 23
    58302126000 CLUTCH LEVER BOOT
    CLUTCH LEVER BOOT
  • 24
    0125100003 WASHER DIN0125-A10,5
    WASHER DIN0125-A10,5
  • 25
    5841402500030 FLASHER CPL.FRONT L/S REAR R/S
    FLASHER CPL.FRONT L/S REAR R/S
  • 25
    5841402600030 FLASHER CPL.FRONT R/S REAR L/S
    FLASHER CPL.FRONT R/S REAR L/S
  • 26
    58414030000 HH COLLAR NUT M10X1,25 WS=13
    HH COLLAR NUT M10X1,25 WS=13
  • 27
    0797100003 LOCK WASHER DIN6797-J10,5 ZI
    LOCK WASHER DIN6797-J10,5 ZI
  • 40
    58414040100 REAR LIGHT CPL. LC4 2001
    REAR LIGHT CPL. LC4 2001
  • 42
    58414042000 BULB 12V 21/5W (BA15S)REINFOR.
    BULB 12V 21/5W (BA15S)REINFOR.
  • 43
    41001052000 RUBBER SLEEVE D=12MM
    RUBBER SLEEVE D=12MM
  • 44
    58714048000 REAR LIGHT BUSHING
    REAR LIGHT BUSHING
  • 45
    0985060003 SELF LOCK. NUT DIN0985-M 6
    SELF LOCK. NUT DIN0985-M 6
  • 46
    0021060003 WASHER DIN9021-A 6,4
    WASHER DIN9021-A 6,4
  • 47
    58414047000 LICENSE-PLATE ILLUMINATION
    LICENSE-PLATE ILLUMINATION
  • 48
    0021050003 WASHER DIN9021-A 5,3
    WASHER DIN9021-A 5,3
  • 49
    0985050003 SELF LOCKING NUT DIN0985-M 5
    SELF LOCKING NUT DIN0985-M 5
