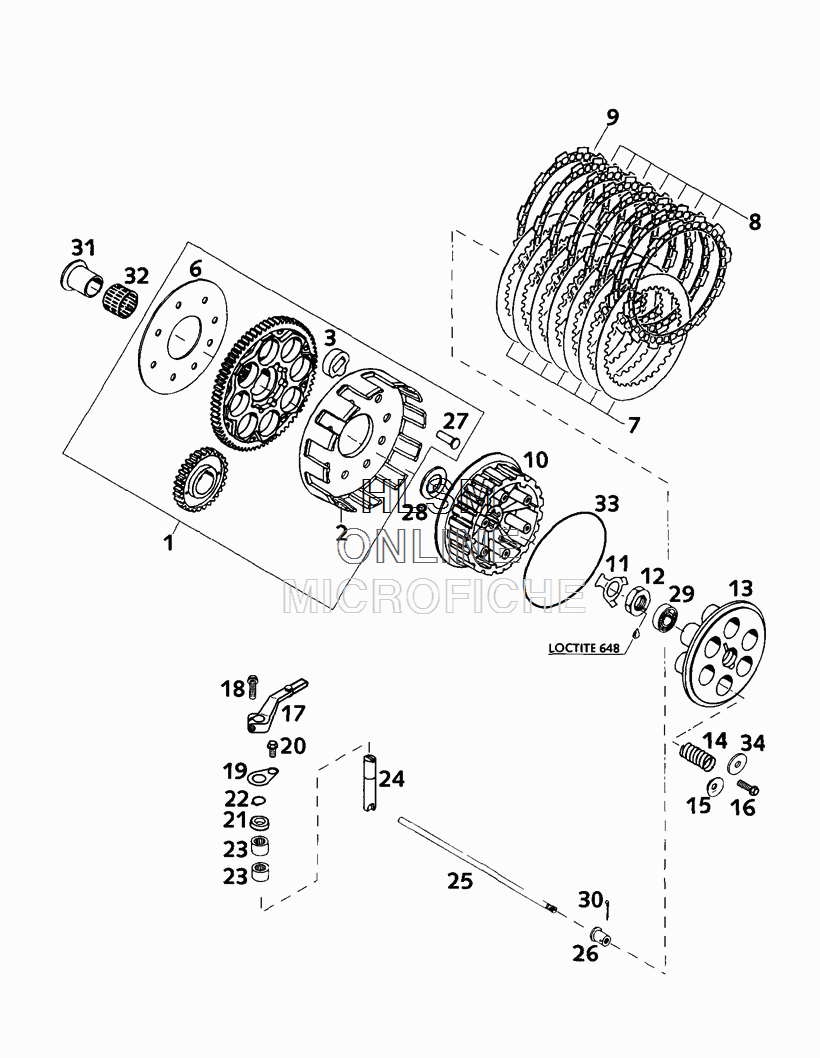

CLUTCH для Ktm LC4 640 Adventure R - 2001 года выпуска`
-
№АртикулНазвание
-
158332001081 OUTER CL.HUB 81-T W.PRIM.30-TOUTER CL.HUB 81-T W.PRIM.30-T
-
258332001000 OUTER CL.HUB LOOSE D=160MMOUTER CL.HUB LOOSE D=160MM
-
358332026000 DAMPING ELEMENTDAMPING ELEMENT
-
658332028000 BRACKET 57 X 132 X 1,5BRACKET 57 X 132 X 1,5
-
758332112000 STEEL DISK 1,5 MMSTEEL DISK 1,5 MM
-
858332011200 LINING DISK 2,7 MM CR-087LINING DISK 2,7 MM CR-087
-
958332111200 LINING DISK 2,7 MM SPECIALLINING DISK 2,7 MM SPECIAL
-
1058332002200 INNER CLUTCH HUBINNER CLUTCH HUB
-
1158332018000 LOCK WASHERLOCK WASHER
-
120936181505 HEXAGON NUT DIN0936-M18X1,5 R.HEXAGON NUT DIN0936-M18X1,5 R.
-
1358332003200 PRESSURE CAPPRESSURE CAP
-
1458332080000 CLUTCH SPRING 2,8 X 37CLUTCH SPRING 2,8 X 37
-
1558132081000 SPRING RETAINER 6,2 X 20 X 3,2SPRING RETAINER 6,2 X 20 X 3,2
-
160015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
1758432048044 CLUTCH RELEASE LEVERCLUTCH RELEASE LEVER
-
180015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
1958432044000 RETAIN.PLATE CLU.RELEASE LEVERRETAIN.PLATE CLU.RELEASE LEVER
-
200015060123 HH COLLAR SCREW M 6X12 WS=8HH COLLAR SCREW M 6X12 WS=8
-
2154532093000 NUT RING NIS 12X20X5,5NUT RING NIS 12X20X5,5
-
220471120010 CIRCLIP DIN0471-12X1CIRCLIP DIN0471-12X1
-
2350332095000 NEEDLE BEARING HK 1212NEEDLE BEARING HK 1212
-
2457532015000 DISENGAGING SHAFT 12 X 66 '93DISENGAGING SHAFT 12 X 66 '93
-
2558332017000 PUSH ROD 224 MMPUSH ROD 224 MM
-
2658332032000 PRESSURE BOLTPRESSURE BOLT
-
2758332007000 RIVET 6 X 23 X 11,2RIVET 6 X 23 X 11,2
-
2857532013000 SUPPORT WASHER 22,2X35X3 HARDE.SUPPORT WASHER 22,2X35X3 HARDE.
-
290625060016 GROOVED BALL BEARING 6001.2RSRGROOVED BALL BEARING 6001.2RSR
-
300094020163 PIN DIN0094-2,0X16PIN DIN0094-2,0X16
-
3150332070000 INNER RING WITH COLLARINNER RING WITH COLLAR
-
3256532095000 NEEDLE BEARING K26X30X22ZW.KSENEEDLE BEARING K26X30X22ZW.KSE
-
330770116030 O-RING 116,00X3,00 NBR 70O-RING 116,00X3,00 NBR 70
-
3458432081000 WASHER 6,5 X 20 X 2 (640)WASHER 6,5 X 20 X 2 (640)
