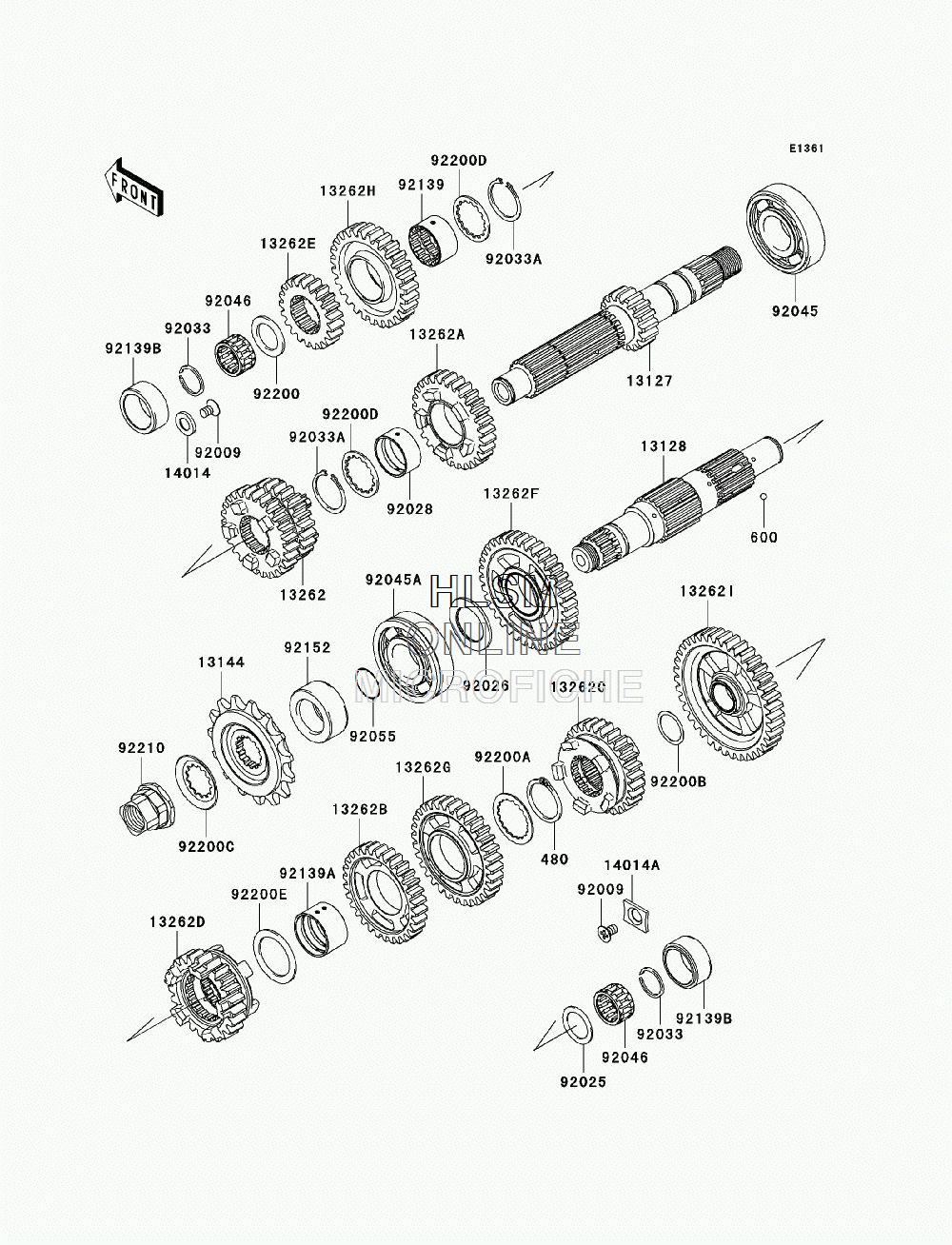

TRANSMISSION для Kawasaki VERSYS (KLE650CAF) - 2010 года выпуска

  • №
    Артикул
    Название
  • 480
    480J2900 CIRCLIP
    CIRCLIP
  • 600
    600A0500 BALL-STEEL,5/32"
    BALL-STEEL,5/32"
  • 13127
    13127-0028 SHAFT-TRANSMISSION INPUT,16T
    SHAFT-TRANSMISSION INPUT,16T
  • 13128
    13128-0020 SHAFT-TRANSMISSION OUTPUT
    SHAFT-TRANSMISSION OUTPUT
  • 13144
    13144-0024 SPROCKET-OUTPUT,15T,#520
    SPROCKET-OUTPUT,15T,#520
  • 13262
    13262-0245 GEAR,INPUT 3RD & 4TH,24T & 27T
    GEAR,INPUT 3RD & 4TH,24T & 27T
  • 13262A
    13262-0246 GEAR,INPUT 5TH,29T
    GEAR,INPUT 5TH,29T
  • 13262B
    13262-0251 GEAR,OUTPUT 4TH,30T
    GEAR,OUTPUT 4TH,30T
  • 13262C
    13262-0252 GEAR,OUTPUT 5TH,28T
    GEAR,OUTPUT 5TH,28T
  • 13262D
    13262-0253 GEAR,OUTPUT TOP,23T
    GEAR,OUTPUT TOP,23T
  • 13262E
    13262-0335 GEAR,INPUT 2ND,21T
    GEAR,INPUT 2ND,21T
  • 13262F
    13262-0337 GEAR,OUTPUT 2ND,36T
    GEAR,OUTPUT 2ND,36T
  • 13262G
    13262-0338 GEAR,OUTPUT 3RD,32T
    GEAR,OUTPUT 3RD,32T
  • 13262H
    13262-0447 GEAR,INPUT TOP,27T
    GEAR,INPUT TOP,27T
  • 13262I
    13262-0498 GEAR,OUTPUT LOW,39T
    GEAR,OUTPUT LOW,39T
  • 14014
    14014-0019 PLATE-POSITION,9.5X17X2.3
    PLATE-POSITION,9.5X17X2.3
  • 14014A
    14014-0020 PLATE-POSITION, RIGHT HAND
    PLATE-POSITION, RIGHT HAND
  • 92009
    92009-1375 SCREW,6X10
    SCREW,6X10
  • 92025
    92025-1455 SHIM,20.3X28X1.1
    SHIM,20.3X28X1.1
  • 92026
    92026-1529 SPACER,25.3X39X2.0
    SPACER,25.3X39X2.0
  • 92028
    92028-1449 BUSHING,INPUT GEAR
    BUSHING,INPUT GEAR
  • 92033
    92033-015 RING-SNAP,20MM
    RING-SNAP,20MM
  • 92033A
    92033-1037 RING-SNAP,25.9X30.6X1.2
    RING-SNAP,25.9X30.6X1.2
  • 92045
    92045-0042 BEARING-BALL,25X62X17
    BEARING-BALL,25X62X17
  • 92045A
    92045-1224 BEARING-BALL,6305N2SH2
    BEARING-BALL,6305N2SH2
  • 92046
    92046-1185 BEARING-NEEDLE,KMJ20X26X13.8X1
    BEARING-NEEDLE,KMJ20X26X13.8X1
  • 92055
    92055-1293 RING-O,21.5X1.5
    RING-O,21.5X1.5
  • 92139
    92139-0107 BUSHING,INPUT TOP GEAR
    BUSHING,INPUT TOP GEAR
  • 92139A
    92139-0108 BUSHING,OUT 3RD & 4TH GEAR
    BUSHING,OUT 3RD & 4TH GEAR
  • 92139B
    92139-0120 BUSHING,BEARING-NEEDLE
    BUSHING,BEARING-NEEDLE
  • 92152
    92152-0300 COLLAR,25X40X17.2
    COLLAR,25X40X17.2
  • 92200
    92200-0221 WASHER,20.2X30X1.8
    WASHER,20.2X30X1.8
  • 92200A
    92200-0222 WASHER,30.3X38X1.0
    WASHER,30.3X38X1.0
  • 92200B
    92200-0291 WASHER,20.2X25.0X0.5
    WASHER,20.2X25.0X0.5
  • 92200C
    92200-1065 WASHER
    WASHER
  • 92200D
    92200-1240 WASHER,28.5X34.0X1.5
    WASHER,28.5X34.0X1.5
  • 92200E
    92200-1278 WASHER,29.9X40X1.5
    WASHER,29.9X40X1.5
  • 92210
    92210-0222 NUT,M20,L=24MM
    NUT,M20,L=24MM
