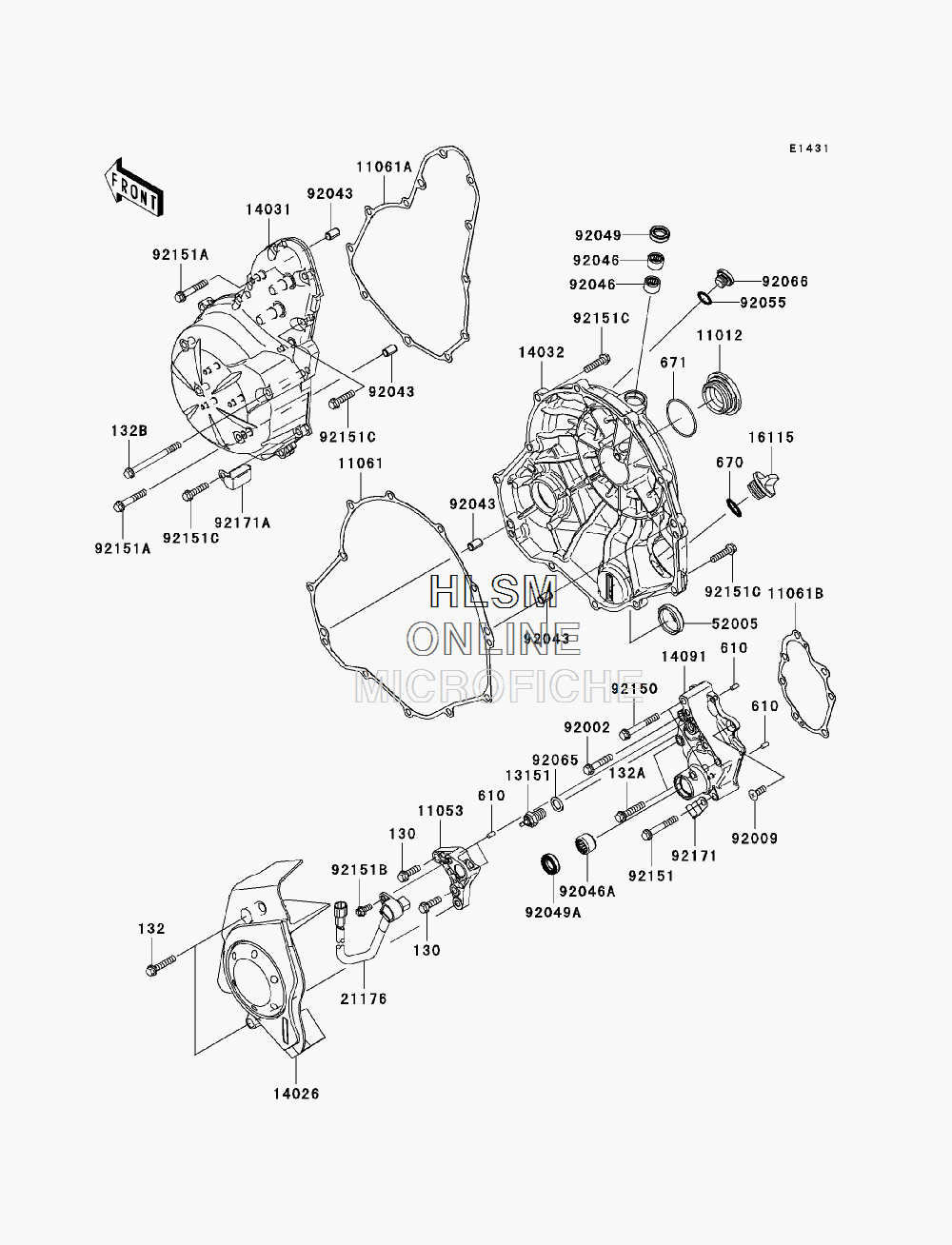

ENGINE COVER для Kawasaki VERSYS (KLE650CAF) - 2010 года выпуска
-
№АртикулНазвание
-
130130BA0620 BOLT-FLANGED,6X20BOLT-FLANGED,6X20
-
132132BB0630 BOLT-FLANGED-SMALL,6X30BOLT-FLANGED-SMALL,6X30
-
132A132BC0630 BOLT-FLANGED-SMALL,6X30BOLT-FLANGED-SMALL,6X30
-
132B132BC0670 BOLT-FLANGED-SMALL,6X70BOLT-FLANGED-SMALL,6X70
-
610610A0408 ROLLER,4X8ROLLER,4X8
-
670670B2020 O RING,20MMO RING,20MM
-
671671B2540 O RING,40MMO RING,40MM
-
1101211012-1817 CAP,GENERATORCAP,GENERATOR
-
1105311053-1739 BRACKETBRACKET
-
1106111061-0164 GASKET,CLUTCH COVERGASKET,CLUTCH COVER
-
11061A11061-0165 GASKET,GENERATOR COVERGASKET,GENERATOR COVER
-
11061B11061-0166 GASKET,TRANSMISSION COVERGASKET,TRANSMISSION COVER
-
1315113151-1080 SWITCH-COMP,NEUTRALSWITCH-COMP,NEUTRAL
-
1402614026-0076 COVER-CHAINCOVER-CHAIN
-
1403114031-0096 COVER-GENERATORCOVER-GENERATOR
-
1403214032-0115 COVER-CLUTCHCOVER-CLUTCH
-
1409114091-0720 COVER,TRANSMISSIONCOVER,TRANSMISSION
-
1611516115-1053 CAP-OIL FILLERCAP-OIL FILLER
-
2117621176-0065 SENSOR,SPEEDSENSOR,SPEED
-
5200552005-0071 GAUGE,OIL LEVELGAUGE,OIL LEVEL
-
9200292002-1534 BOLT,6X30BOLT,6X30
-
9200992009-1360 SCREW,6X16SCREW,6X16
-
9204392043-1263 PIN,6.2X8X14PIN,6.2X8X14
-
9204692046-1010 BEARING-NEEDLE,HK1210BEARING-NEEDLE,HK1210
-
92046A92046-1148 BEARING-NEEDLE,HK1312BEARING-NEEDLE,HK1312
-
9204992049-1475 SEAL-OIL,CLUTCH RELEASESEAL-OIL,CLUTCH RELEASE
-
92049A92049-1519 SEAL-OIL,TC13225.5SEAL-OIL,TC13225.5
-
9205592055-1011 RING-O,13.0X1.9RING-O,13.0X1.9
-
9206592065-058 GASKET,10.5X16X1GASKET,10.5X16X1
-
9206692066-0154 PLUGPLUG
-
9215092150-1884 BOLT,6X45BOLT,6X45
-
9215192151-1131 BOLT,6X40BOLT,6X40
-
92151A92151-1135 BOLT,6X35BOLT,6X35
-
92151B92151-1305 BOLT,FLANGED,5X12BOLT,FLANGED,5X12
-
92151C92151-1930 BOLT,FLANGED-SMALL,6X25BOLT,FLANGED-SMALL,6X25
-
9217192171-0813 CLAMPCLAMP
-
92171A92171-0911 CLAMPCLAMP
